dial set read dial set read
5 28 10 56
15 84 20 112
25 140 30 168
35 196 40 224
45 252 50 280
55 308 60 336
65 364 70 392
75 420 80 448
85 476 90 504
95 532 100 560
table 3.1
B) Connect oscilloscope across the dummy load. Set vertical deflection to 50 v/div and
horizontal deflection to 1.0 sec/div. Set proper trigger. Set PERCENT ENERGY dial to
100% and push the TREAT button. The duration of the stimulus should be 8 seconds as
in fig. 3.6.

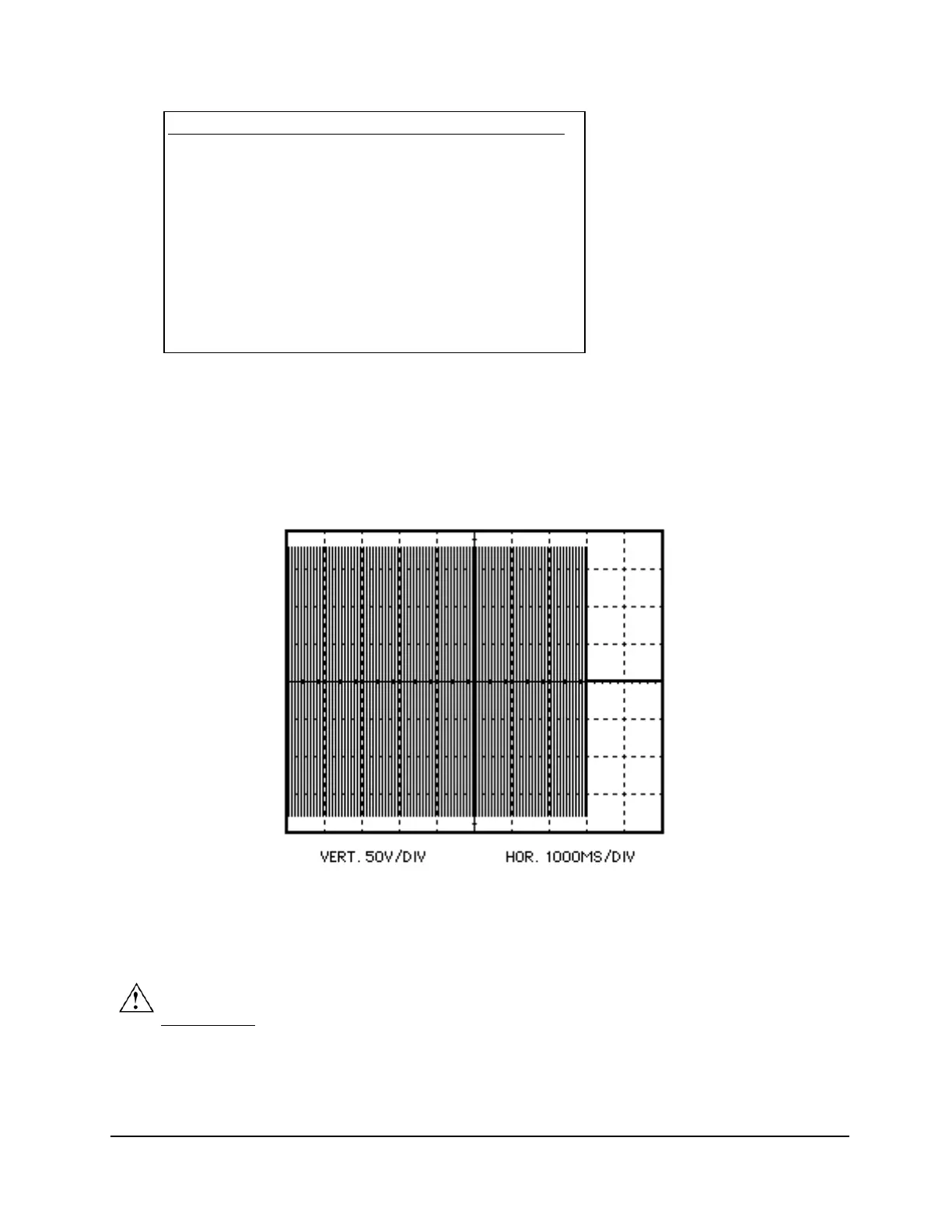

fig. 3.6
3.7 IMPEDANCE TEST
Connect a variable resistor box to the ECT stimulus cable. Set on zero ohms and push the
impedance test button the readout should be 0_ ±100_. Repeat for 1000_ and 2000_. At
impedances higher than 3000 _ the display will read >3000 and blink.
CAUTION: DO NOT PRESS THE TREAT BUTTON DURING THIS TEST. THE
LARGE POWER OUTPUT COULD DESTROY YOUR RESISTANCE BOX.
