DO:
• Ensure there is only one wireless connection into each network. For example if you
have a hardwired network upstairs and a wireless network downstairs only one
of the hardwired products should be linked into the wireless network, connecting
both systems.

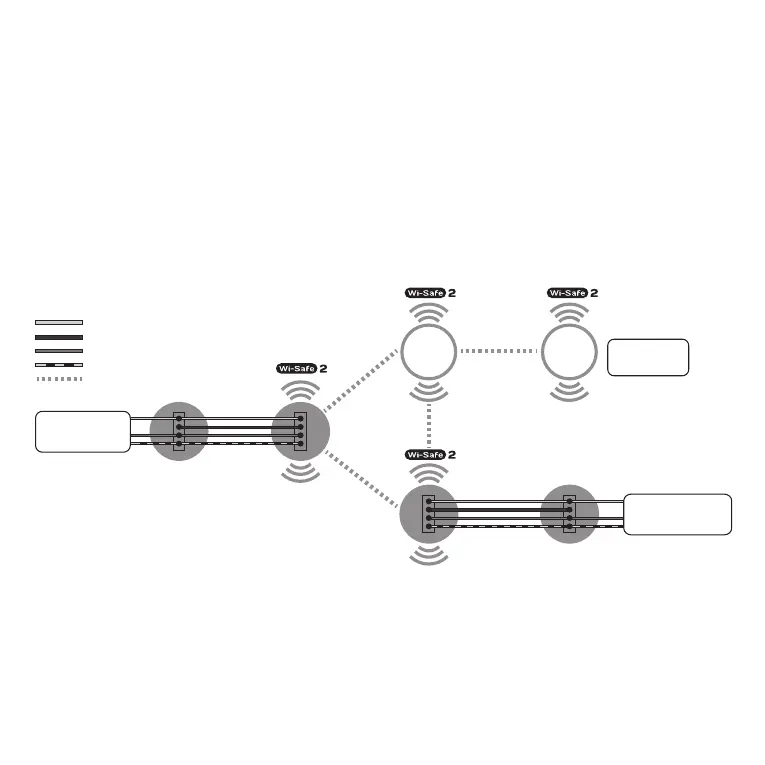

Interconnecting both hardwired and wireless products together in a network:
✓
Mains 230V AC
Power Supply
(from upstairs circuit)
WIRING KEY
= Live
= Interconnect
= Neutral
= Earth
= Wireless Interlink
Mains 230V AC
Power Supply
(from downstairs circuit)
Battery operated
alarms
MIXED SYSTEMS
