Sonance Invisible series Installation Instructions

TALL SIDE
5/8” (16MM)
DRYWALL
SHORT SIDE
1/2” (12MM)
DRYWALL
THIN SHIM
5/16” (8MM)
INTERNATIONAL
APPLICATIONS
*All installations in 1/2" (13mm) and 5/8" (16mm)
drywall with wood stud construction require a shim.
10
EXISITNG CONSTRUCTION

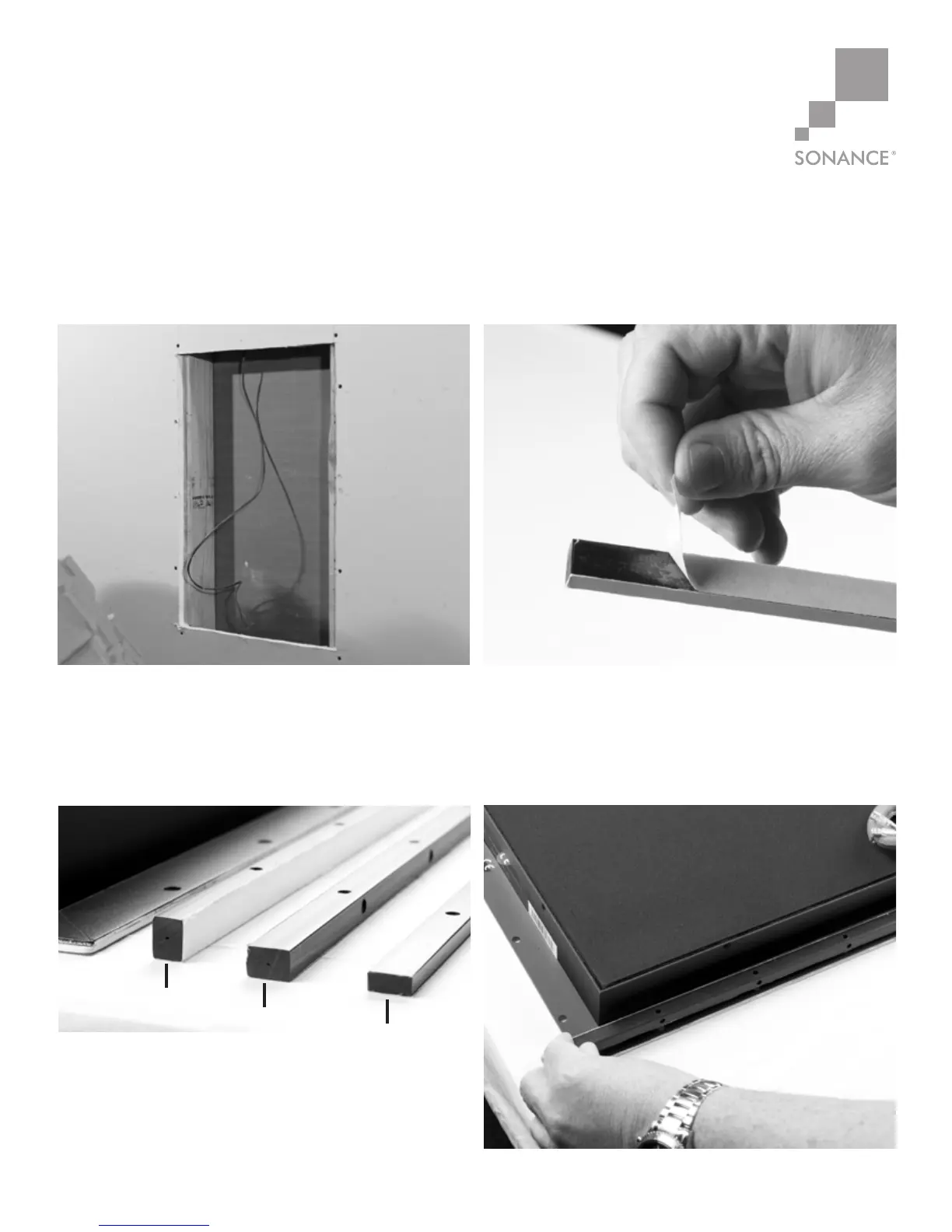

9. Pull 2-conductor speaker wire down into the
exposed opening.
10. Select the appropriate shim for the application.*
Use cardboard shims for fine tuning.
11. Peel off corresponding adhesive backing.
12. Press shim firmly into position, aligning screw holes.

Sonance Invisible series Specifications

General

Dimensions	Varies by model
Cutout Size	Varies by model
Mounting Depth	Varies by model
Type	Invisible
Power Handling	200 Watts
Impedance	8 Ohms
Installation	In-wall
Sensitivity	89dB
Finish	Paintable
Tweeter	None (uses planar diaphragm technology)
Woofer	None (uses planar diaphragm technology)
