OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02
22
Resistance of the PE conductor is a sum of several components:
- resistance of the power core,
- resistance of the connectors,
- resistance of the extension cord (if exists).
This test is performed to evaluate the technical condition of PE conductor and PE connection with the
tested device. The measurement can be performed with 200mA or 10A (only PAT-10) test current.
Measuring with 10A requires connecting the tester to mains.

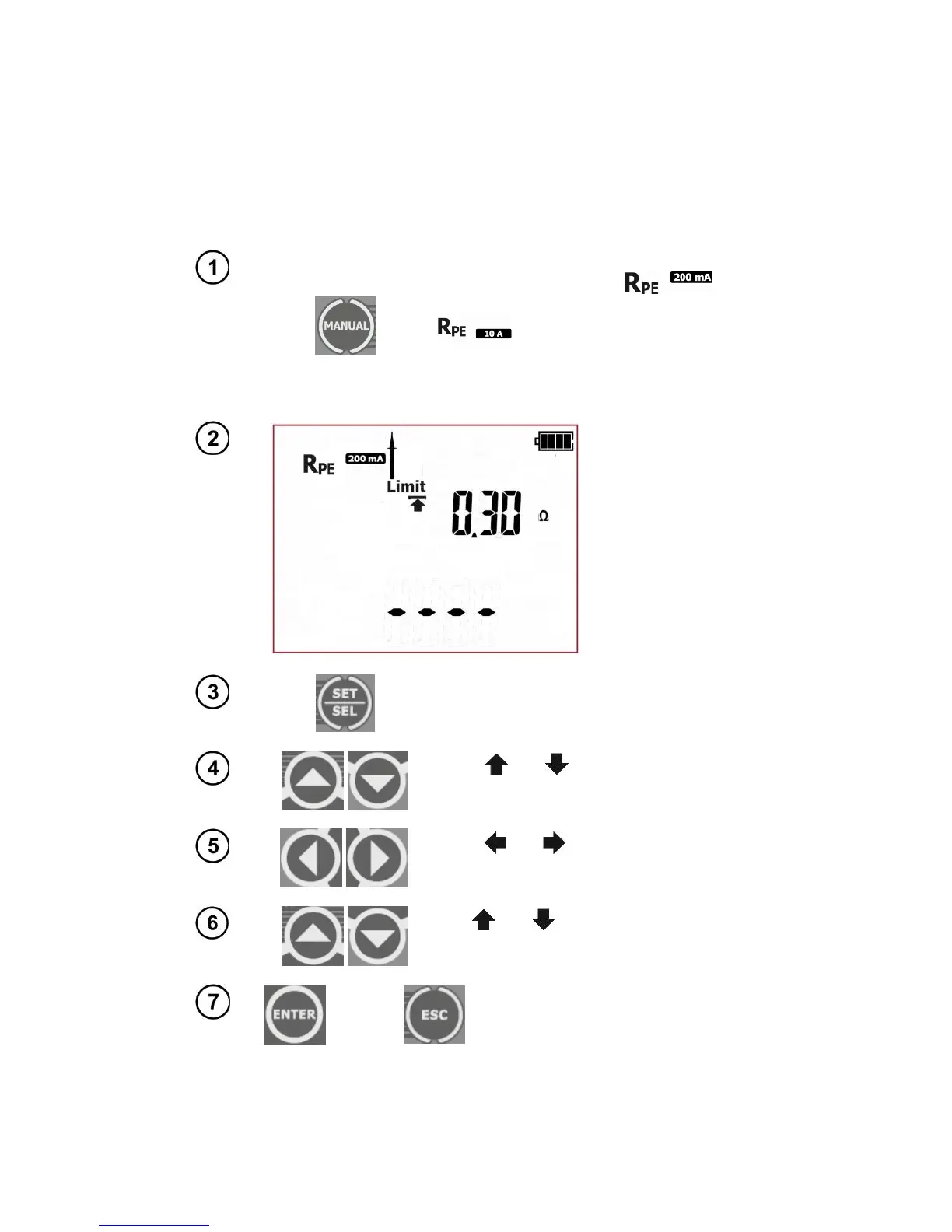

Press MANUAL button to go to PE re-
sistance measurement – icon
will be displayed for 200mA current test or
) for 10A (after pressing
MANUAL button again). The measurement
procedure is the same for both current
values.
The tester is in PE
conductor resistance
measurement mode.
Press SET/SEL button to go to the settings
of measurement parameters.
Press and
to set the upper limit of
R
PE
resistance.
Press and to go to the test time du-
ration settings.
Use and
to set the test time
duration value.
or
Press
ENTER
to confirm settings or
press ESC to exit without saving
the changes.
Connect test leads according to the drawing.
