OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

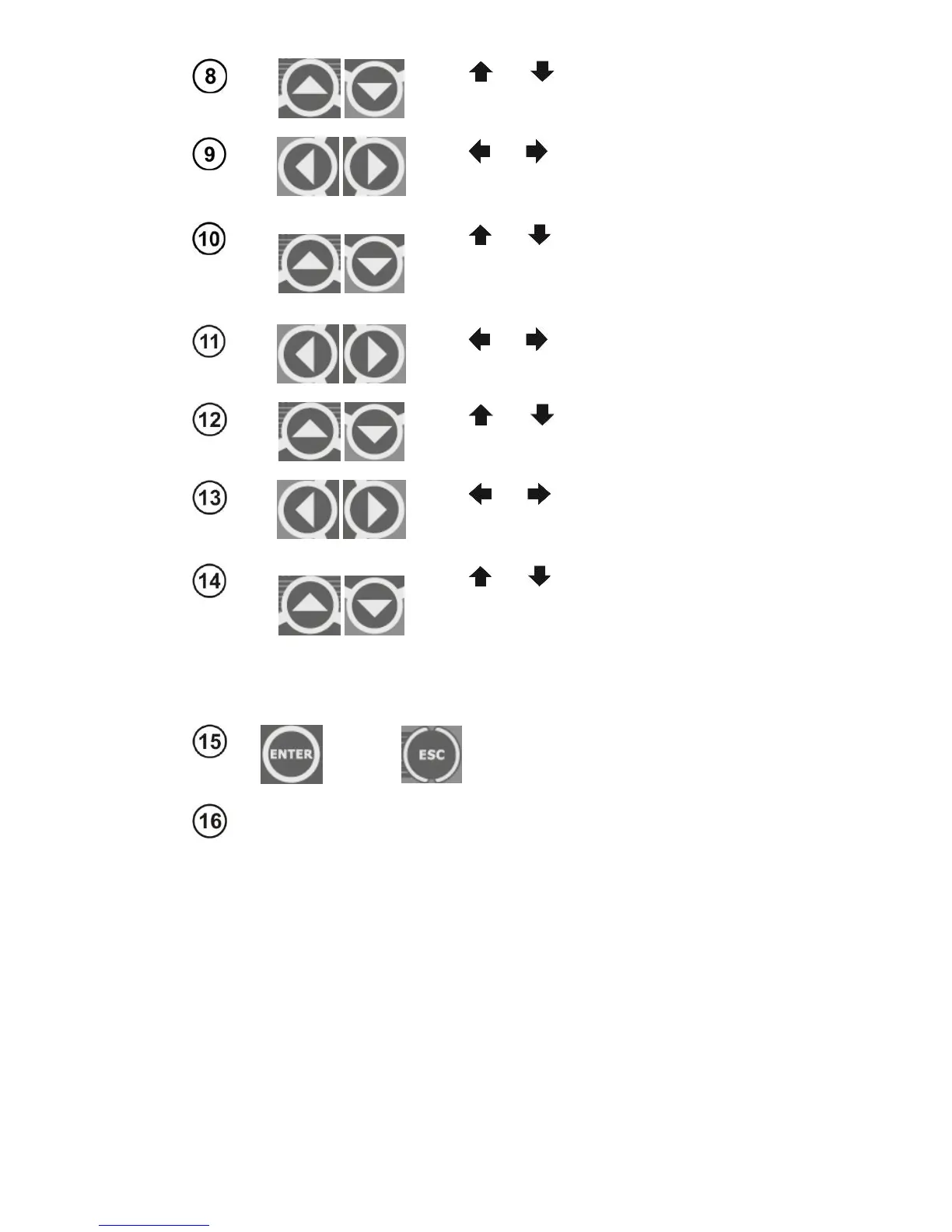

Use and
to set the lower limit of in-
sulation resistance
.
Use and
to go to the test time
duration settings for insulation resistance
measurement.
Use and
to set the test time
duration for insulation resistance meas-
urement
. Select „oFF” to switch off this test
completely.
Use and
to go to the limit settings for
substitute leakage current measurement.
Use and
to set the upper limit for
substitute leakage current.
Use and
to go to the test time dura-
tion settings for substitute leakage current
measurement.
Use and
to set the test time
duration for
substitute leakage current
measurement. Select „oFF” to switch off
this test completely.
Parameters of each subsequent test are selected in the same manner.
Press
ENTER
to confirm settings or
press ESC to exit without saving
the changes.
The inspection of the tested device must be carried out.
Among others, examine the following: PE cable and power cables
of the tested device, mains plug (against cracks and burnouts),
cable fittings and terminations, housing, air vents, identification
plates, covers, commutators and brushes, windings, bearings,
mechanical systems and other elements that affect proper opera-
tion of the device and safety of the user.
