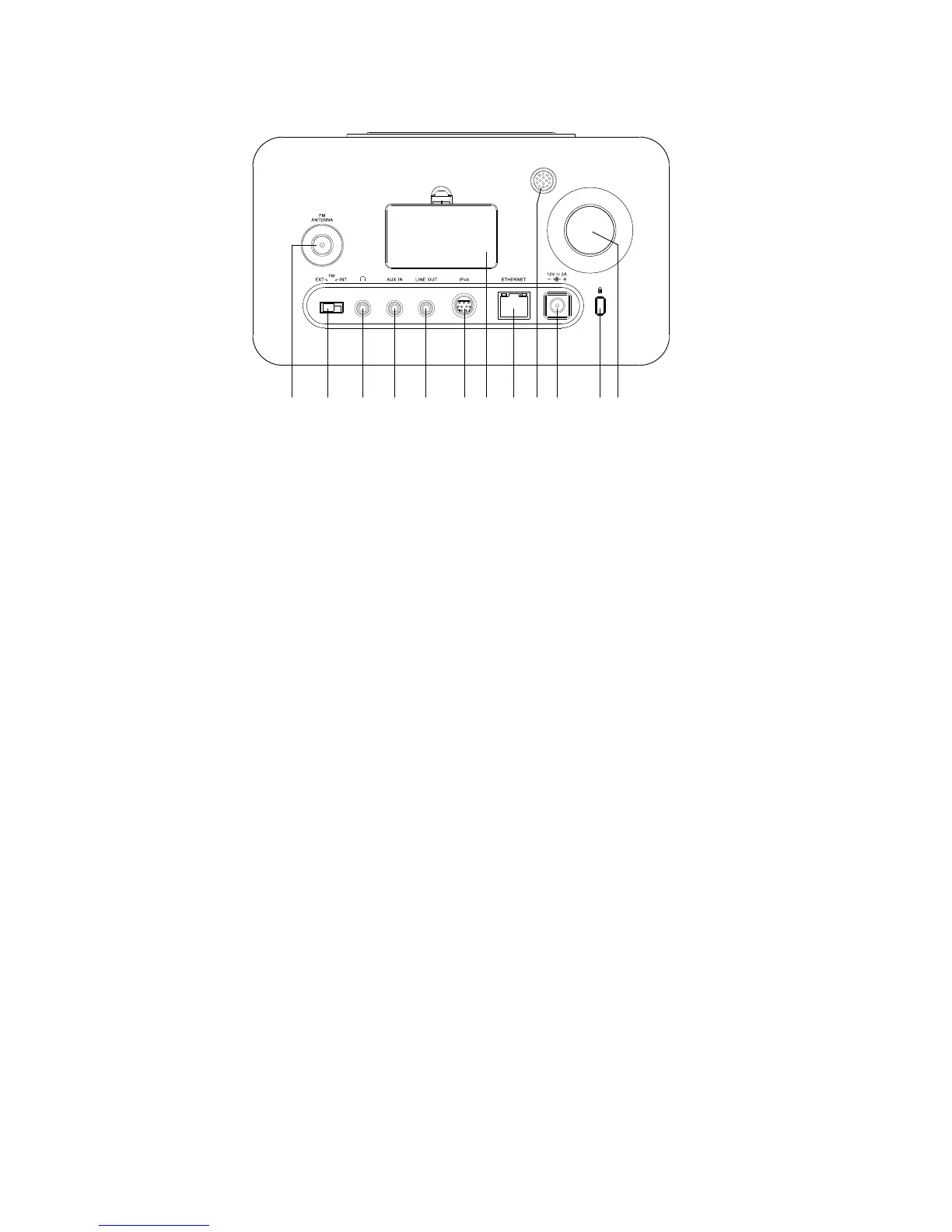

Back of the elements W:
1 FM ANTENNA FM antenna connector socket
2 FM EXT/INT Switch to change between the internal or external FM anten-
na.
3 Headphones Headphone connector socket
4 AUX IN Connector socket for external audio devices.
5 LINE OUT Connector socket to connect the elements W with external
audio devices.
6 iPod Connector socket for iPod eDock
7 Battery compartment Two batteries (1.5 V AA) ensure that the clock continues to
function if there is a power failure.
8 ETHERNET Connector socket for the network cable.
9 Signaler Sends the alarm signal.
10 Power adapter socket 12-V connection for the provided power adapter.
11 Keylock Connection for anti-theft protection.
12 Bass reex opening Please do not close or cover up in order to ensure the best
sound quality.
