Sonos ARC User Manual

SONOS USER GUIDE

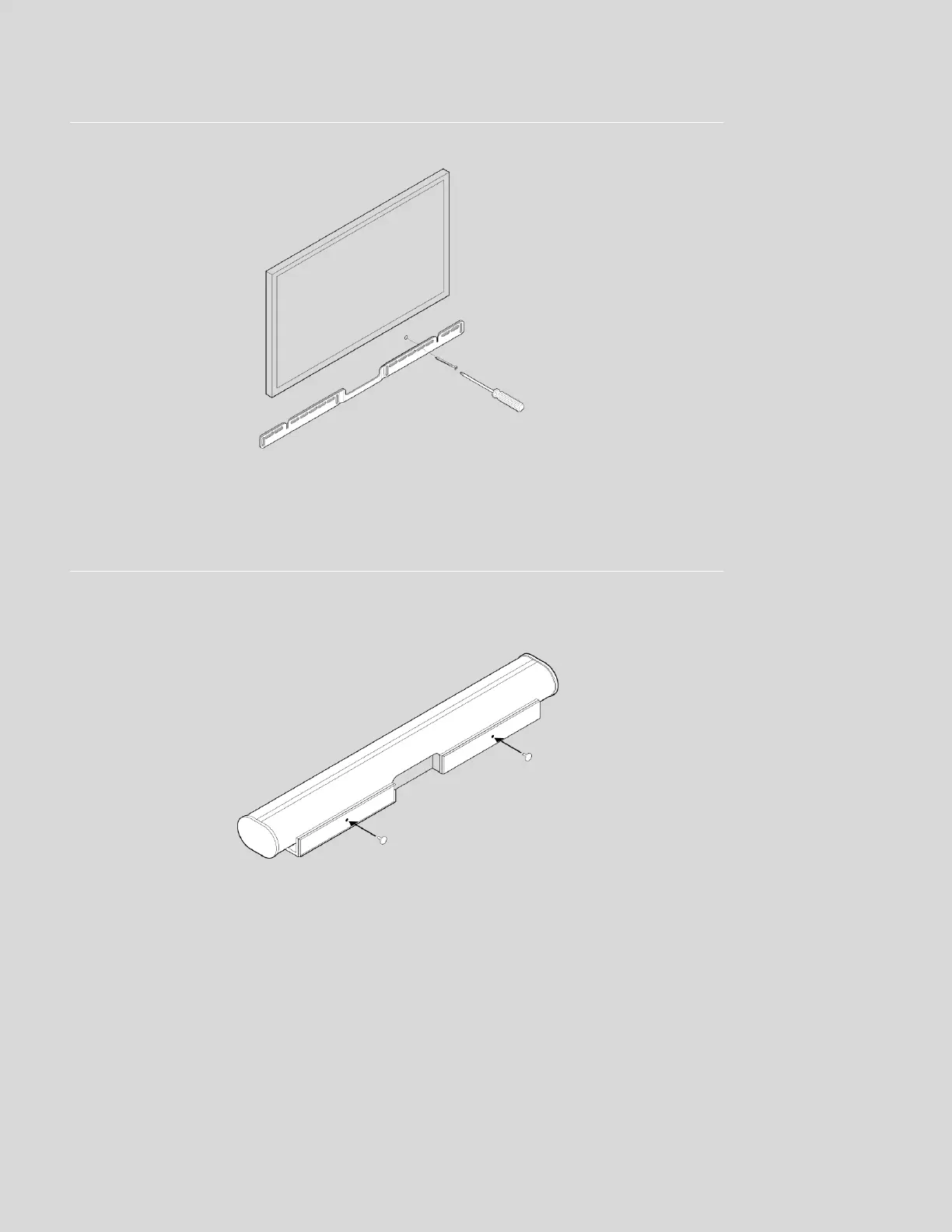

4. Position the wall mount bracket over the marked screw locations, using a level to confirm accuracy. Use a
Phillips-head screwdriver or a power drill to screw the bracket to the wall, making sure the arrows in the
center are pointing up.
5. Screw the 2 knobs into the back of the soundbar until they are fully tightened.

Sonos ARC Specifications

General

RMS rated power	- W
Audio output channels	- channels
Audio Return Channel (ARC)	Yes
Bluetooth	-
Connectivity technology	Wired & Wireless
Number of woofer drivers	8
Number of tweeter drivers	3
Subwoofer included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Certification	CE
Product color	White
Virtual assistant	Amazon Alexa & Google Assistant
Number of products included	1 pc(s)

Weight and Dimensions

Depth	115.7 mm
Width	1141.7 mm
Height	87 mm
Soundbar weight	6250 g
