Einbau- und Betriebsanleitung statischer Wärmezähler Superstatic 440
Installation and manual of static heat meter Superstatic 440
Inst 440 531-d-e-190207 MID Seite / page - 11 Sontex SA, CH-2605 Sonceboz

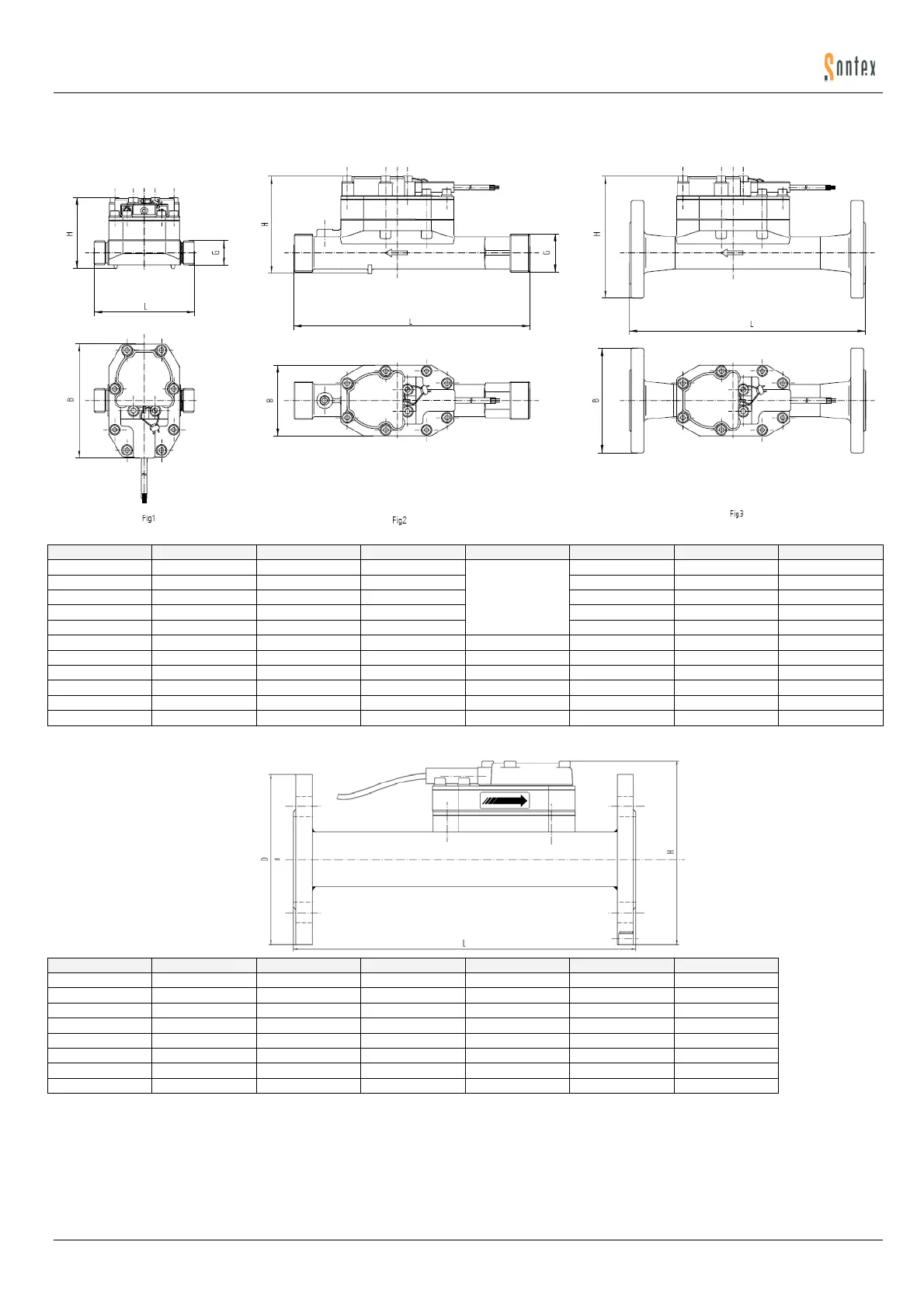

Massbilder statisches Durchflusssensor Superstatic 440
Diemension static flow sensor Superstatic 440
qp DN G PN Fig.No B (mm) H (mm) L(mm)
1 m
3
/h --- ¾” 16 / 25 125 79 110
1 m
3
/h --- 1” 16 / 25 125 79 190
1.5 m
3
/h --- ¾” 16 / 25 125 79 110
1.5 m
3
/h --- 1” 16 / 25 125 79 190
2.5 m
3
/h --- 1” 16 / 25
1
125 79 190
3.5 m
3
/h --- 1 ¼” 16 / 25 2 78 105 260
3.5 m
3
/h 25 --- 16 / 25 3 115 134 260
6 m
3
/h --- 1 ¼” 16 / 25 2 78 105 260
6 m
3
/h 25 --- 16 / 25 3 115 134 260
10 m
3
/h --- 2” 16 / 25 2 78 122 300
10 m
3
/h 40 --- 16 / 25 3 150 157 300
qp DN PN L (mm) D (mm) d (mm) H (mm)
15 m
3
/h 50 16, 25 270 165 53 176
25 m
3
/h 65 16, 25 300 185 69 194
40 m
3
/h 80 16, 25 300 200 81 208
60 m
3
/h 100 16, 25 360 220 107 231
100 m
3
/h 125 16, 25 250 250 132 258
150 m
3
/h 150 16, 25 300 285 159 290
250 m
3
/h 200 10, 16, 25 350 340 207 343
400 m
3
/h 250 10, 16, 25 450 405 260 402
