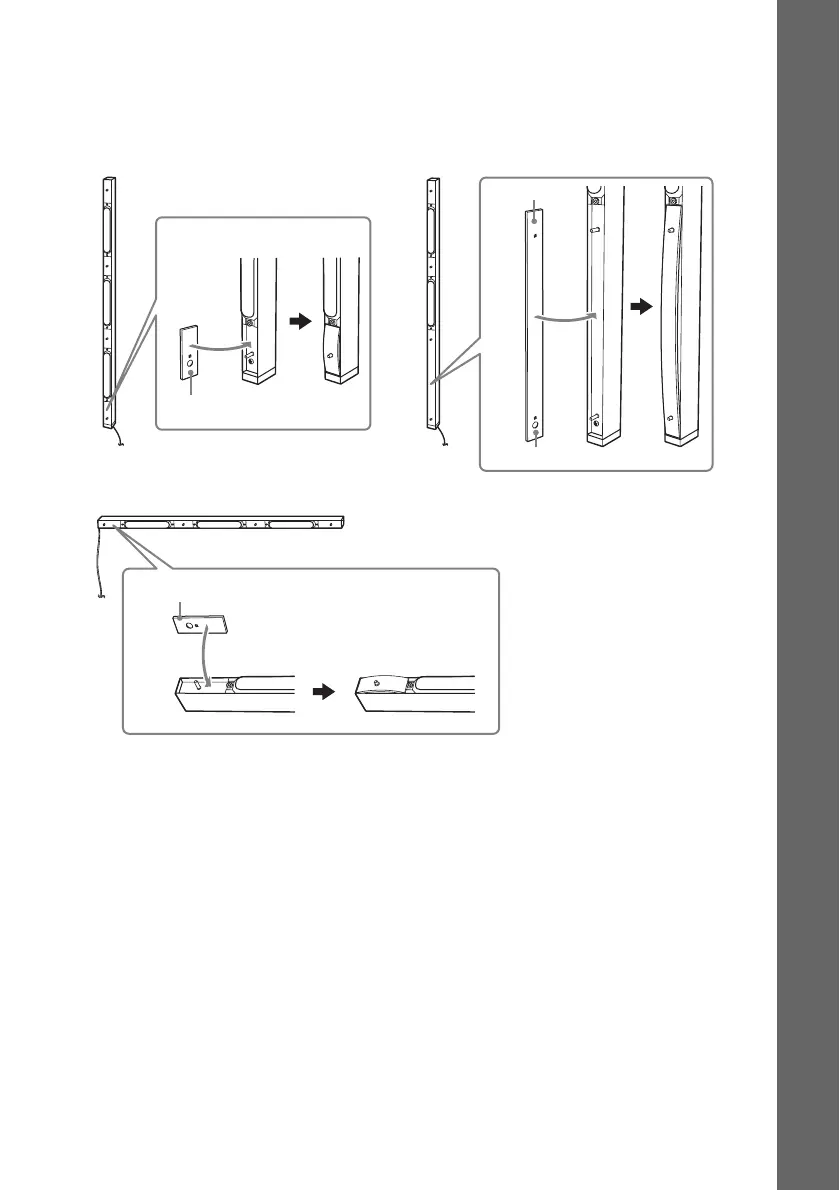

5 Attach the baffle cover to the speaker.
Use the baffle cover (short) for the front speaker and center speaker, baffle cover (long) for the
surround speaker. Press the ends of the baffle cover over the pin(s), then press down to flush fit
the speaker front.
Baffle cover (short)
Baffle cover (long)
“J” mark
Surround speaker
Front speaker
Center speaker
Baffle cover (short)
