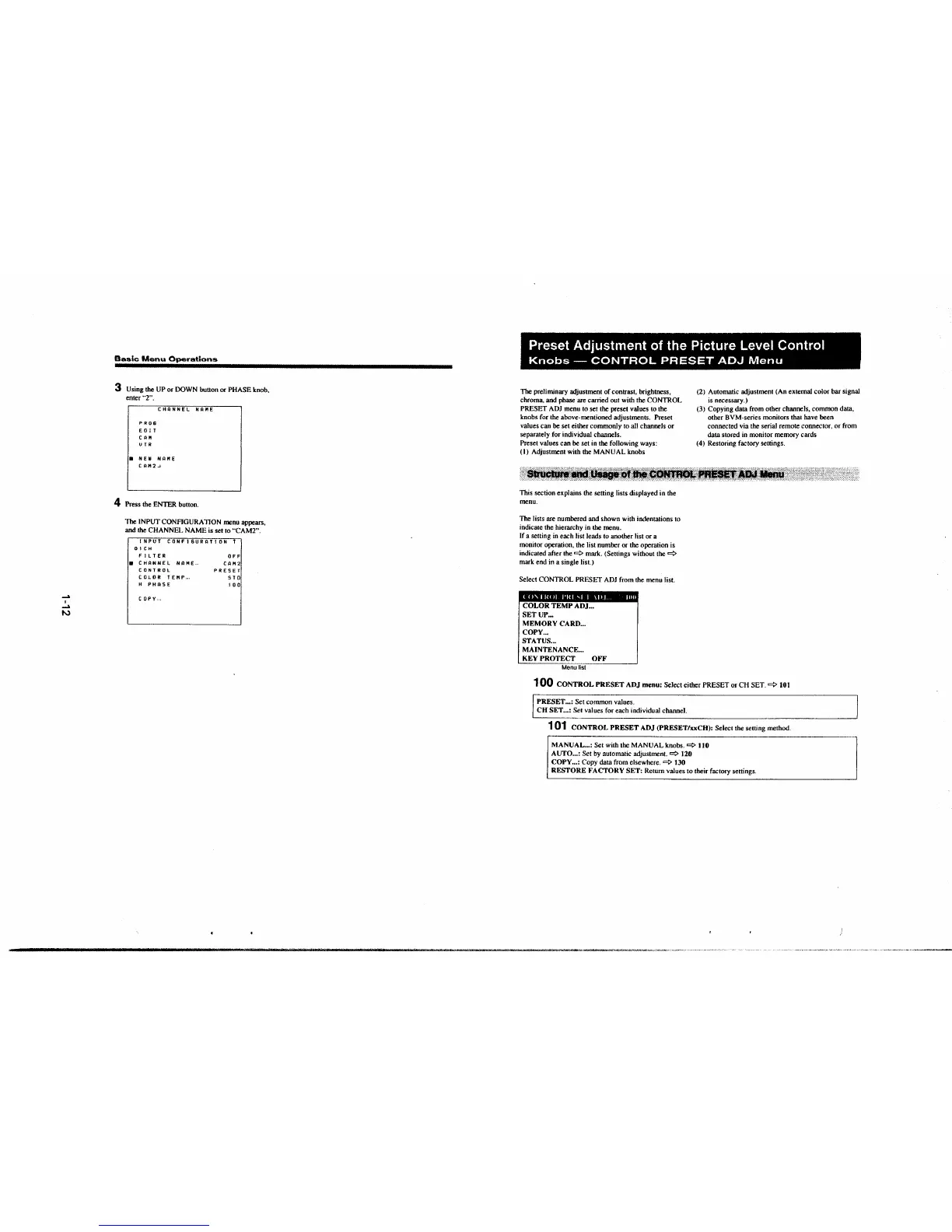

I
....
N
Aaslc Menu Operations
3 Using the UP or DOWN button or PHASE knob.
enter··2".
PROS
E OJ T
co•
VTR
CHANNEL NAME
a NEIii NANE
CAM2J
4 Press the ENTER buuon.
The INPUT CONFIGURATION menu appears,
and the CHANNEL NAME is set to
"CAM2".
INPUT CONF 16URlffT-0NT
OICH
FILTER OFF
a CHANNEL NAHf... CAM2
CONTROL
COLOR TEHP ...
H PHASE
COPY ..
PRESET
STO
1 0 0
Preset Adjustment of the Picture Level Control
Knobs - CONTROL PRESET ADJ Menu
1be preliminruy adjustment of contrast, brightness,
chroma,
and phase are carried out with the CONTROL
PRESET ADJ menu to set the preset values to the
knobs for the above- mentioned adjustments. Preset
values can
be set either commonly to all channels or
separately for individual channels.
Preset values can
be set in the following ways:
(I) Adjustment with the MANUAL knobs
(2) Automatic adjustment (An external color bar signal
is necessary.)
(3) Copying data from other channels, common data,
other BVM-series monitors that have been
connected via the serial remote connector, or from
data stored in monitor memory cards
(4) Restoring factory seuings.
;-1,'-•r,,.~,Wt'.@-rlill;f5i•i1-.:li'
This section explains the setting lists displayed in the
menu .
The lists are numbered and shown with indentations to
indicate the hierarchy in the menu.
If a setting in each list leads to another list or a
monitor operation, the list number or
the operation is
indicated after the
cc:> mark. (Settings without the cc:>
mark end in a single list.)
Select CONTROL PRESET ADJ from the menu list.
COLOR TEMP ADJ ...
SETUP ...
MEMORY CARD ...
COPY ...
STATUS ...
MAINTENANCE ...
KEY PROTECT OFF
Menu list
1 00 CONTROL PRESET ADJ menu: Select either PRESET or CH SET. cc:> IOI
PRESET ••• : Set common values.
CH SET •.• : Set values for each individual channel.
101 CONTROL PRESET ADJ (PRESET/xxCH): Select the setting method.
MANUAL .. : Set with the MANUAL knobs. cc:> 110
AUTO ... :
Set by automatic adjustment. cc:> 120
COPY ... :
Copy data from elsewhere. cc:> 130
RESTORE FACTORY SET:
Return values to their factory settings.
To Next Page
