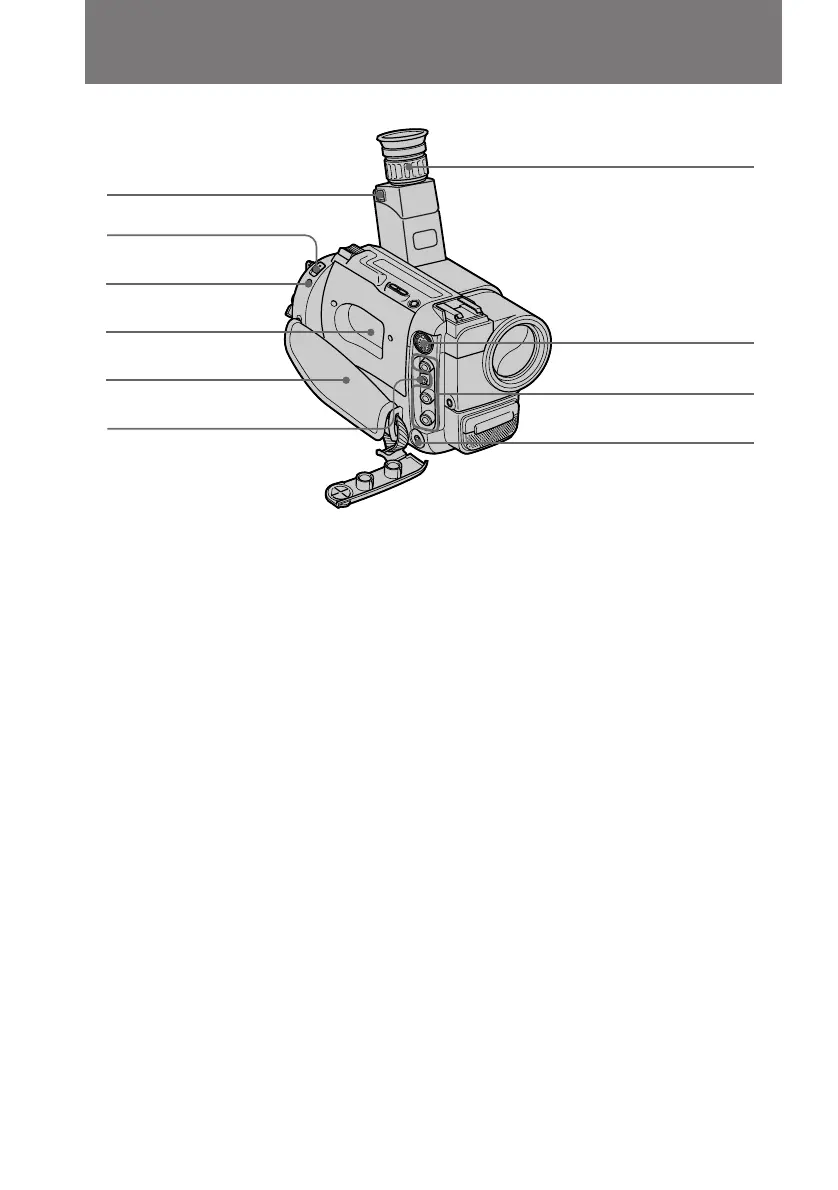

Identifying the parts
$™ Eyecup RELEASE knob (p. 69)
$£ EJECT switch (p. 12)
$¢ LANC l control jack
l stands for Local Application Control
Bus System. The l control jack is used
for controlling the tape transport of
video equipment and peripherals
connected to it. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.
$∞ Cassette compartment (p. 12)
$§ Grip strap (p. 19)
$¶ RFU DC OUT (RFU adaptor DC output)
jack (p. 55)
$• Viewfinder lens adjustment ring
(p. 14)
$ª S VIDEO jack (CCD-TRV65/TRV615
only) (p. 55)
%º VIDEO/AUDIO jacks (p. 54)
%¡ 2 (headphones) jack (CCD-TRV65/
TRV615 only) (p. 23) /@ (earphone)
jack (CCD-TRV15/TRV25/TRV35/
TRV215/TRV315 only) (p. 23)
To Next Page
