— Quick Reference —
Identifying the parts and controls
qa
9
7
0
8
qs
6
3
4
5
2
1
This mark indicates that this product is a genuine accessory for Sony
video products.
When purchasing Sony video products, Sony recommends that you
purchase accessories with this “GENUINE VIDEO ACCESSORIES”
mark.

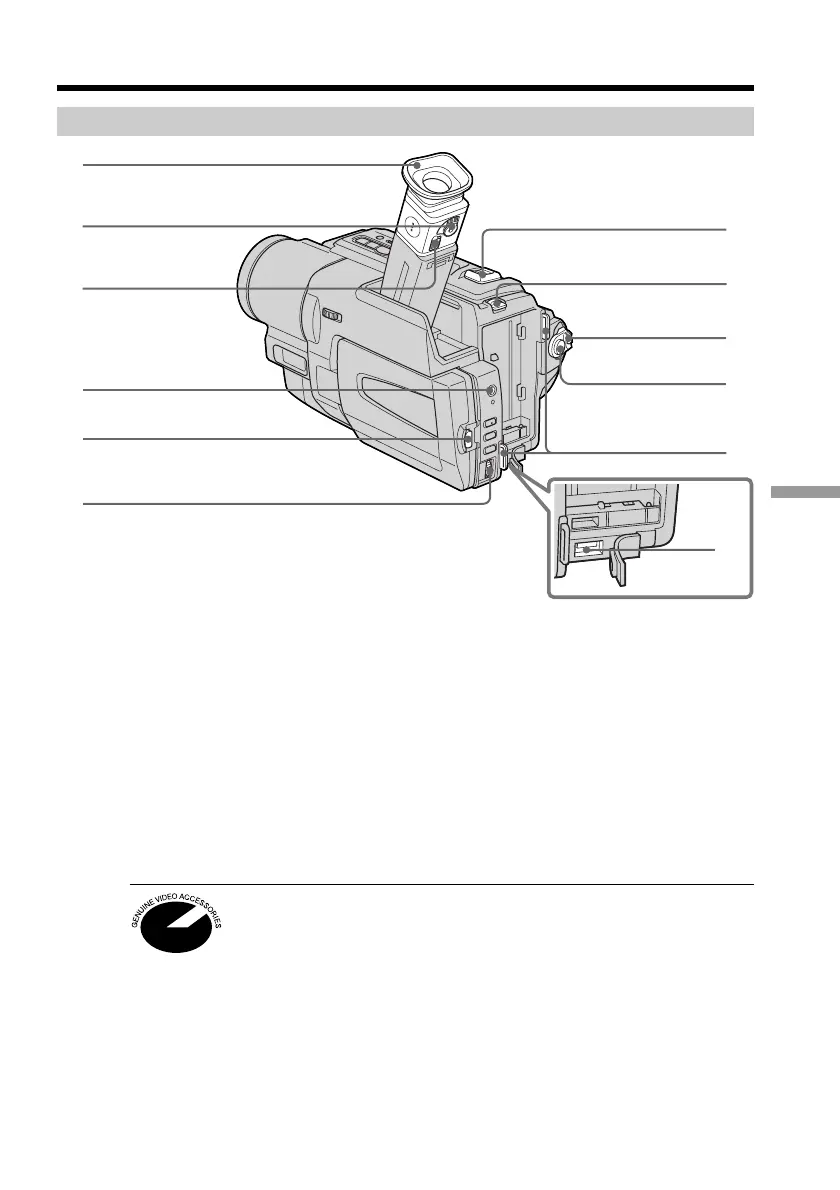

Camcorder
1 Eyecup (p. 69)
2 Viewfinder lens adjustment lever
(p. 24)
3 Eyecup RELEASE knob (p. 69)
4 v (earphone) jack
When you use earphone, the speaker on
your camcorder is silent.
5 OPEN button (p. 20)
6 SEL/PUSH EXEC dial (p. 35, 51)
7 Power zoom lever (p. 23)
8 BATT RELEASE lever (p. 11)
9 POWER switch (p. 20)
q; START/STOP button (p. 20)
qa Hooks for shoulder strap (p. 75)
qs DC IN jack (p. 12, 16)
