Sony CD Mavica MVC-CD500 - Identifying the Parts

9

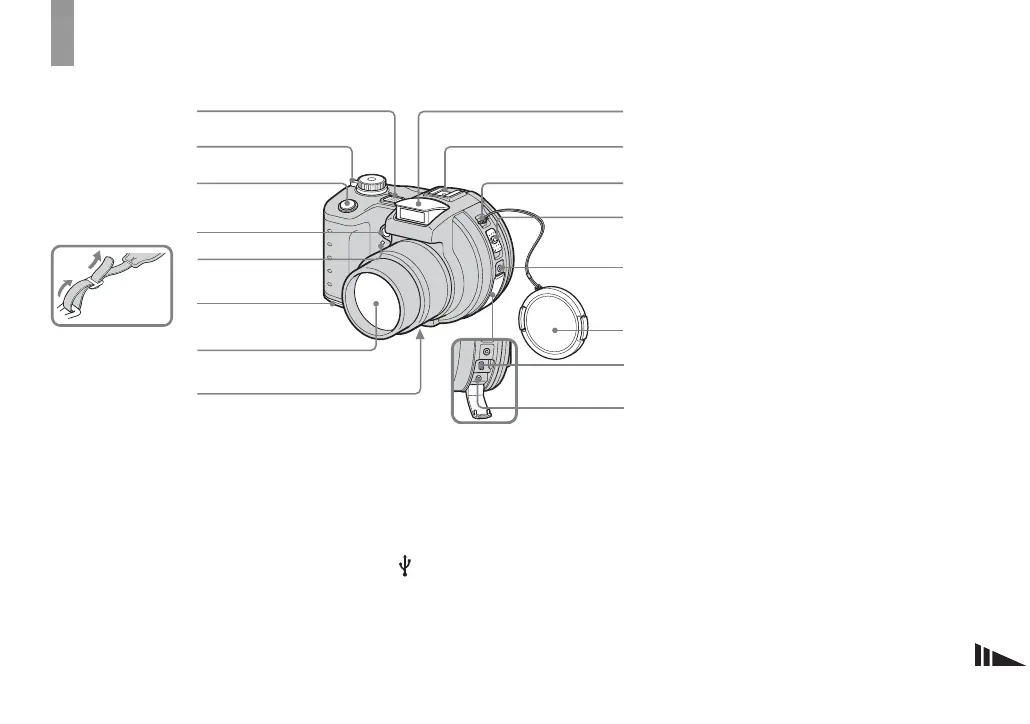

Identifying the parts
See the pages in parentheses for details of operation.
A Microphone
B POWER ON/OFF (CHG) switch
(15)
C Shutter button (22)
D Hologram AF emitter (29, 116)
E Self-timer lamp (27)
F Battery cover (11)
G Lens
H Tripod receptacle (bottom
surface)
I Flash emitter (27)
J Advanced accessory shoe (67)
K Hook for lens cap/shoulder strap
L Disc cover OPEN lever (18)
M ACC (Accessory) jack (67)
N Lens cap
O (USB) jack (93)
P A/V OUT (MONO) jack (34)
1
2
3
6
4
qs
0
qa
8
7
9
qd
qf
qg
qh
5
Attaching the
shoulder strap
• Use a tripod with a screw length of less
than 5.5 mm (7/32 inch). You will be
unable to firmly secure the camera to
tripods having longer screws, and may
damage the camera.
• Use ACC jack to connect an external
flash or other equipment.
• Do not touch the microphone while
recording.
