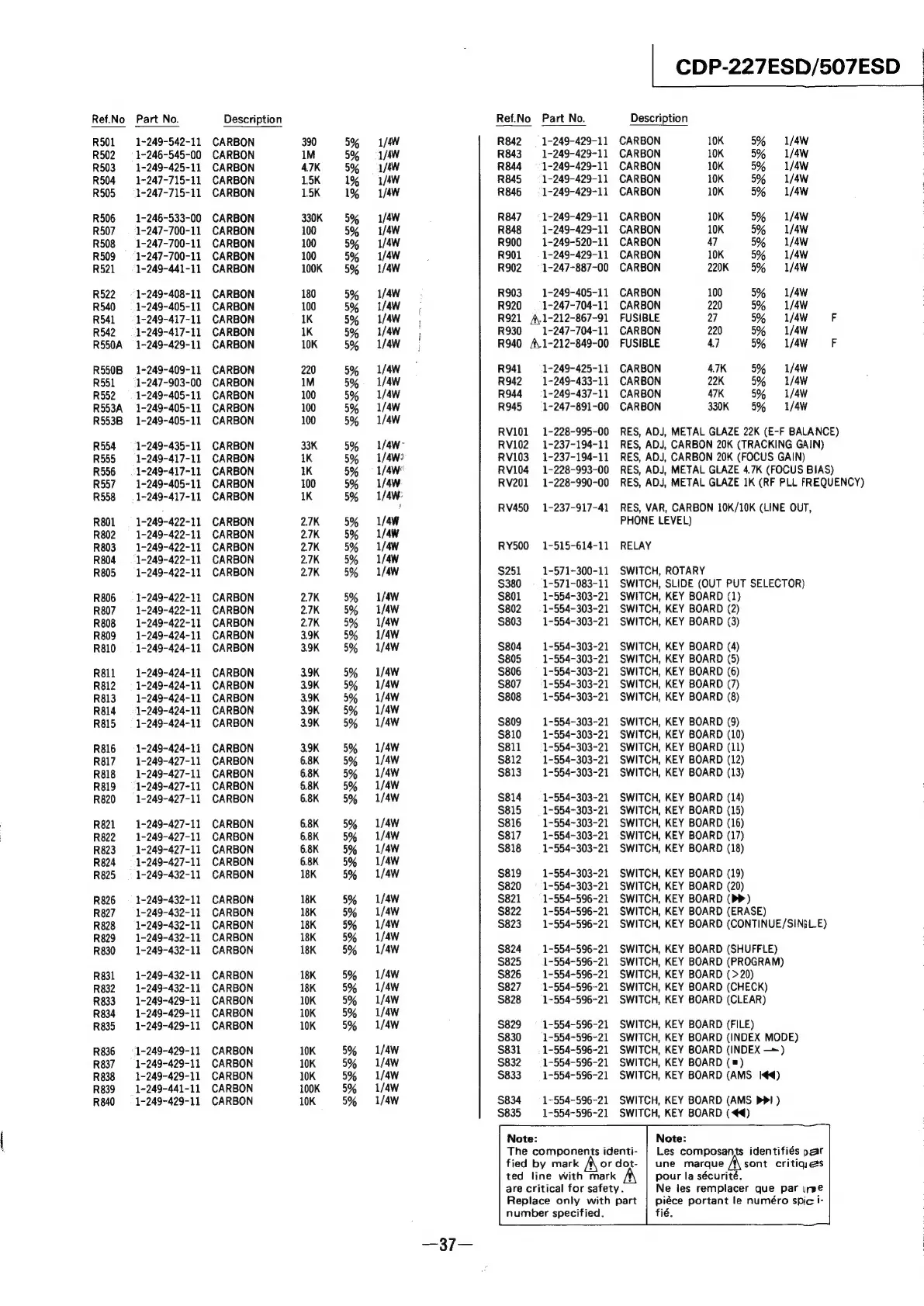

CDP-227ESD/507ESD
Ref.No Part No. Description Ref.No Part No. Description
R501 = 1-249-542-11 CARBON 390 5% =—1/4W R842 = 1-249-429-11 CARBON 10K 5% 1/4W
R502. = 1-246-545-00 CARBON 1M 5% = /4W R843: 1-249-429-11 CARBON 10K 5% 1/4W
R503: 1-249-425-11 CARBON 47K 5% = /4W R844 =: 1-249-429-11 CARBON 10K 5% 1/4W
R504: 1-247-715-11 CARBON 1.5K 1% = 1 /4W R845 =: 1-249-429-11 CARBON 10K 5% 1/4W
R505 =: 1-247-715-11 CARBON 1.5K 1% =1/4W R846 =: 1-249-429-11 CARBON 10K 5% 1/4W
R506 =1-246-533-00 CARBON 330K = 5% /4W R847 ~—- 1-249-429-11 CARBON 10K 5% 1/4W
R507 =: 1-247-700-11 CARBON 100 5% «1/4W R848 =1-249-429-11 CARBON 10K 5% 1/4W
R508 =1-247-700-11 CARBON 100 5% =61/4W R900 1-249-520-11 CARBON 47 5% 1/4W
R509 =: 1-247-700-11 CARBON 100 5% 1/4W R901 = 1-249-429-11 CARBON 10K 5% 1/4W
R521 =: 1-249-441-11 CARBON 100K 65% ~=—1/4W R902 =: 1-247-887-00 CARBON 220K 865% ~—1/4W
R522 =: 1-249-408-11 CARBON 180 5% 1/4W R903: 1-249-405-11 CARBON 100 5% ©1/4W
R540 =: 1-249-405-11 CARBON 100 5% «1/4W OC; R920 =: 1-247-704-11 CARBON 220 5% 1/4W
R541 =: 1-249-417-11 CARBON 1K 5% Waws, R921 A.1-212-867-91 FUSIBLE 27 5% 1/4W F
R542 =: 1-249-417-11 CARBON 1K 5% 1/4W ; R930 =: 1-247-704-11 CARBON 220 5% 1/4W
R550A 1-249-429-11 CARBON 10K 5% =1/AW R940 /\.1-212-849-00 FUSIBLE 47 5% 1/4W F
R550B 1-249-409-11 CARBON 220 5% 1/4W R941 =: 1-249-425-11 CARBON 47K 5% 1/4W
R551 =: 1-247-903-00 CARBON 1M 5% 1/4W R942: 1-249-433-11 CARBON 22K 5% 1/4W
R552. =: 1-249-405-11 CARBON 100 5% 1/4W R944 ~—s- 1-249-437-11 CARBON 47K 5% 1/4W
R553A 1-249-405-11 CARBON 100 5% 1/4W R945 =: 1-247-891-00 CARBON 330K 865% ~—«/4W
R553B 1-249-405-11 CARBON 100 5% 1/4W
RV101 1-228-995-00 RES, ADJ, METAL GLAZE 22K (E-F BALANCE)
R554 ~—s- 1-249-435-11 CARBON 33K 5% 1/4W" RV102 1-237-194-11 RES, ADJ, CARBON 20K (TRACKING GAIN)
R555: 1-249-417-11 CARBON 1K 5% =1/4We RV103 1-237-194-11 RES, ADJ, CARBON 20K (FOCUS GAIN)
R556 =: 1-249-417-11 CARBON 1K 5% = 1/4We RV104 1-228-993-00 RES, ADJ, METAL GLAZE 4.7K (FOCUS BIAS)
R557: 1-249-405-11 CARBON 100 5% 1/4W RV201 1-228-990-00 RES, ADJ, METAL GLAZE 1K (RF PLL FREQUENCY)
R558 = 1-249-417-11 CARBON 1K 5% = 1/4:
: : RV450 1-237-917-41 RES, VAR, CARBON 10K/10K (LINE OUT,
R801 = 1-249-422-11 CARBON 2.7K 5% 1/40 PHONE LEVEL)
R802: 1-249-422-11 CARBON 27K 5% 1/40
R803 1-249-422-11 CARBON 27K 5% 1/4W RY500 1-515-614-11 RELAY
R804 =: 1-249-422-11 CARBON 2.7K 5% 1/4W
R805: 1-249-422-11 CARBON 2.7K 5% 1/4W $251: 1-571-300-11 SWITCH, ROTARY
$380 —- 1-571-083-11 SWITCH, SLIDE (OUT PUT SELECTOR)
R806 = 1-249-422-11 CARBON 2.7K 5% 1/4W $801 _1-554-303-21 SWITCH, KEY BOARD (1)
R807: 1-249-422-11 CARBON 27K 5% 1/4W $802 = 1-554-303-21 SWITCH, KEY BOARD (2)
R808 1-249-422-11 CARBON 27K 5% 1/4W $803 1-554-303-21 SWITCH, KEY BOARD (3)
R809 —-1-249-424-11 CARBON 3.9K 5% =«1/4W
R810 = 1-249-424-11 CARBON 39K 5% =61/4W $804 = 1-554-303-21 SWITCH, KEY BOARD (4)
$805 1-554-303-21 SWITCH, KEY BOARD (5)
R811 1-249-424-11 CARBON 3.9K 5% 1/4W $806 = 1-554-303-21 SWITCH, KEY BOARD (6)
R812 = 1-249-424-11 CARBON 3.9K 5% 1/4W $807 =: 1-554-303-21 SWITCH, KEY BOARD (7)
R813 1-249-424-11 CARBON 39K 5% 1/4W $808 = 1-554-303-21 SWITCH, KEY BOARD (8)
R814 —-: 1-249-424-11 CARBON 39K 5% 1/4W
R815 = 1-249-424-11 CARBON 39K 5% 1/4W $809 _1-554-303-21 SWITCH, KEY BOARD (9)
$810 —_1-554-303-21 SWITCH, KEY BOARD (10)
R816 1-249-424-11 CARBON 3.9K 5% 1/4W $811 =: 1-554-303-21 SWITCH, KEY BOARD (11)
R817: 1-249-427-11 CARBON 6.8K 5% 1/4W $812 1-554-303-21 SWITCH, KEY BOARD (12)
R818 1-249-427-11 CARBON 6.8K 5% 1/4W $813: 1-554-303-21 SWITCH, KEY BOARD (13)
R819 =: 1-249-427-11 CARBON 6.8K 5% 1/4W
R820 =1-249-427-11 CARBON 6.8K 5% ©1/4W $814 =: 1-554-303-21 SWITCH, KEY BOARD (14)
$815 = 1-554-303-21 SWITCH, KEY BOARD (15)
R821 = 1-249-427-11 CARBON 6.8K 5% 1/4W $816 = 1-554-303-21 SWITCH, KEY BOARD (16)
R822 1-249-427-11 CARBON 6.8K 5% =1/4W $817: 1-554-303-21 SWITCH, KEY BOARD (17)
R823. 1-249-427-11 CARBON 6.8K 5% 1/4W $818 = 1-554-303-21 SWITCH, KEY BOARD (18)
R824 =: 1-249-427-11 CARBON 6.8K 5% 1/4W
R825 = 1-249-432-11 CARBON 18K 5% 1/4W $819 = 1-554-303-21 SWITCH, KEY BOARD (19)
$820 =: 1-554-303-21 SWITCH, KEY BOARD (20)
R826 = 1-249-432-11 CARBON 18K 5% 1/4W $821 =: 1-554-596-21 SWITCH, KEY BOARD (PP)
R827. —- 1-249-432-11 CARBON 18K 5% 1/4W $822 1-554-596-21 SWITCH, KEY BOARD (ERASE)
R828 1-249-432-11 CARBON 18K 5% 1/4W $823 1-554-596-21 SWITCH, KEY BOARD (CONTINUE/SINGLE)
R829: 1-249-432-11 CARBON 18K 5% 1/4W
R830 1-249-432-11 CARBON 18K 5% 1/4W $824 = 1-554-596-21 SWITCH, KEY BOARD (SHUFFLE)
$825 =: 1-554-596-21 SWITCH, KEY BOARD (PROGRAM)
R831 1-249-432-11 CARBON 18K 5% 1/4W $826 = 1-554-596-21 SWITCH, KEY BOARD (>20)
R832: 1-249-432-11 CARBON 18K 5% 1/4W $827 =: 1-554-596-21 SWITCH, KEY BOARD (CHECK)
R833: 1-249-429-11 CARBON 10K 5% 1/4W $828 = 1-554-596-21 SWITCH, KEY BOARD (CLEAR)
R834: 1-249-429-11 CARBON 10K 5% 1/4W
R835 = 1-249-429-11 CARBON 10K 5% 1/4W $829 =: 1-554-596-21 SWITCH, KEY BOARD (FILE)
$830 1-554~-596-21 SWITCH, KEY BOARD (INDEX MODE)
R836 =: 1-249-429-11 CARBON 10K 5% 1/4W $831 = 1-554-596-21 SWITCH, KEY BOARD (INDEX —)
R837: 1-249-429-11 CARBON 10K 5% 1/4W $832 =: 1-554-596-21 SWITCH, KEY BOARD (#)
R838 1-249-429-11 CARBON 10K 5% 1/4W $833 = 1-554-596-21 SWITCH, KEY BOARD (AMS I44)
R839: 1-249-441-11 CARBON 100K 5% 1/4W
R840 = 1-249-429-11 CARBON 10K 5% 1/4W $834 = 1-554-596-21 SWITCH, KEY BOARD (AMS PPI )
$835 1-554-596-21 SWITCH, KEY BOARD (44)
Note: Note:
The components identi- | Les composants identifiés par
fied by mark ordot- | une marque A\sont critiqes
ted line with mark pour la sécurité.
are critical for safety. Ne ies remplacer que par irse
Replace only with part | piéce portant le numéro spic i-
number specified. fié.
