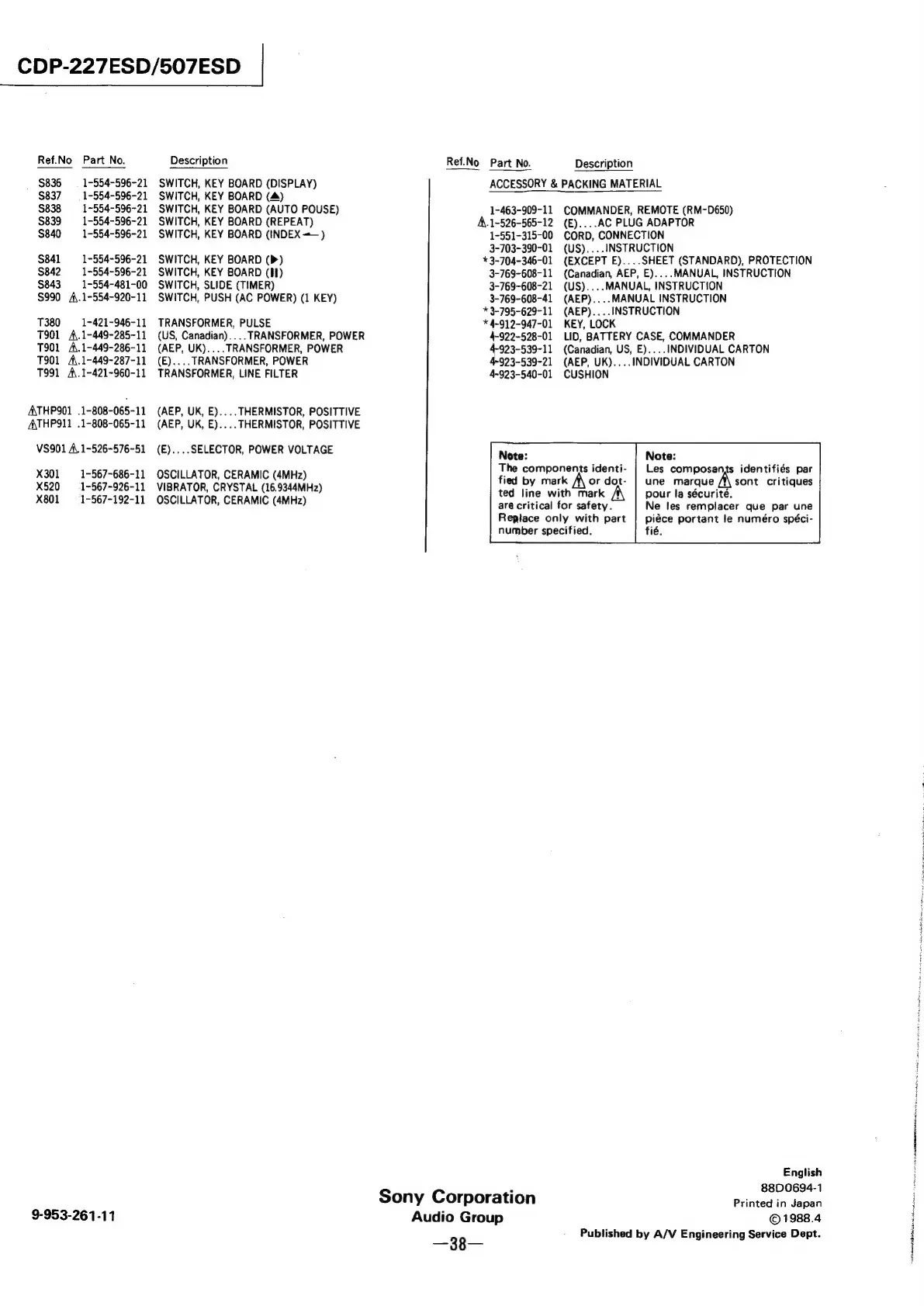

CDP-227ESD/507ESD |
Ref.No Part No.
$836 = 1-554-596-21
$837 = 1-554-596-21
Description
SWITCH, KEY BOARD (DISPLAY)
SWITCH, KEY BOARD (4)
Ref.No Part No.
Description
ACCESSORY & PACKING MATERIAL
$838 1-554-596-21 SWITCH, KEY BOARD (AUTO POUSE) 1-463-909-11 COMMANDER, REMOTE (RM-D650)
$839 1-554-596-21 SWITCH, KEY BOARD (REPEAT) A.1-526-565-12 (E)....AC PLUG ADAPTOR
$840 1-554-596-21 SWITCH, KEY BOARD (INDEX =—) 1-551-315-00 CORD, CONNECTION
3-703-390-01 (US)....INSTRUCTION
$841 1-554-596-21 SWITCH, KEY BOARD (>) * 3-704-346-01 (EXCEPT E)....SHEET (STANDARD), PROTECTION
$842 1-554-596-21 SWITCH, KEY BOARD (I) 3-769-608-11 (Canadian, AEP, E).... MANUAL, INSTRUCTION
$843 1-554-481-00 SWITCH, SLIDE (TIMER) 3-769-608-21 (US)....MANUAL, INSTRUCTION
$990 A\.1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY) 3-769-608-41 (AEP)....MANUAL INSTRUCTION
T380 = 1-421-946-11
TRANSFORMER, PULSE
*3-795-629-11
* 4-912-947-01
(AEP)....INSTRUCTION
KEY, LOCK
T901 A\.1-449-285-11 (US, Canadian).... TRANSFORMER, POWER 4-922-528-01 LID, BATTERY CASE, COMMANDER
7901 A\.1-449-286-11 (AEP, UK).... TRANSFORMER, POWER 4-923-539-11 (Canadian, US, E)....INDIVIDUAL CARTON
T901 A.1-449-287-11 (E).... TRANSFORMER, POWER 4-923-539-21 (AEP, UK)....INDIVIDUAL CARTON
T991 A\.1-421-960-11 TRANSFORMER, LINE FILTER 4-923-540-01 CUSHION
ATHP901 .1-808-065-11
ATHP911 .1-808-065-11
VS901 A.1-526-576-51
X301 1-567-686-11
X520 =: 1-567-926-11
X801 =: 1-567-192-11
(AEP, UK, E).... THERMISTOR, POSITTIVE
(AEP, UK, E).... THERMISTOR, POSITTIVE
(E)....SELECTOR, POWER VOLTAGE
OSCILLATOR, CERAMIC (4MHz)
VIBRATOR, CRYSTAL (16.9344MHz)
OSCILLATOR, CERAMIC (4MHz)
Note:
Note:
The components identi- | Les composants identifiés par
fied by mark Aor dot- | une marque sont critiques
ted line with mark
are critical for safety.
pour la sécurité.
Ne les remplacer que par une
Reglace only with part | piéce portant le numéro spéci-
number specified. fié.
English
: 88D0694-1
Sony
Corporation
Printed
in
Japan
Audio Group © 1988.4
9-953-261-11
38 Published by A/V Engineering Service Dept.
