Sony CDP-70 - SECTION 5 ELECTRICAL PARTS LIST; Capacitors; Resistors; Coils

| CDP-770

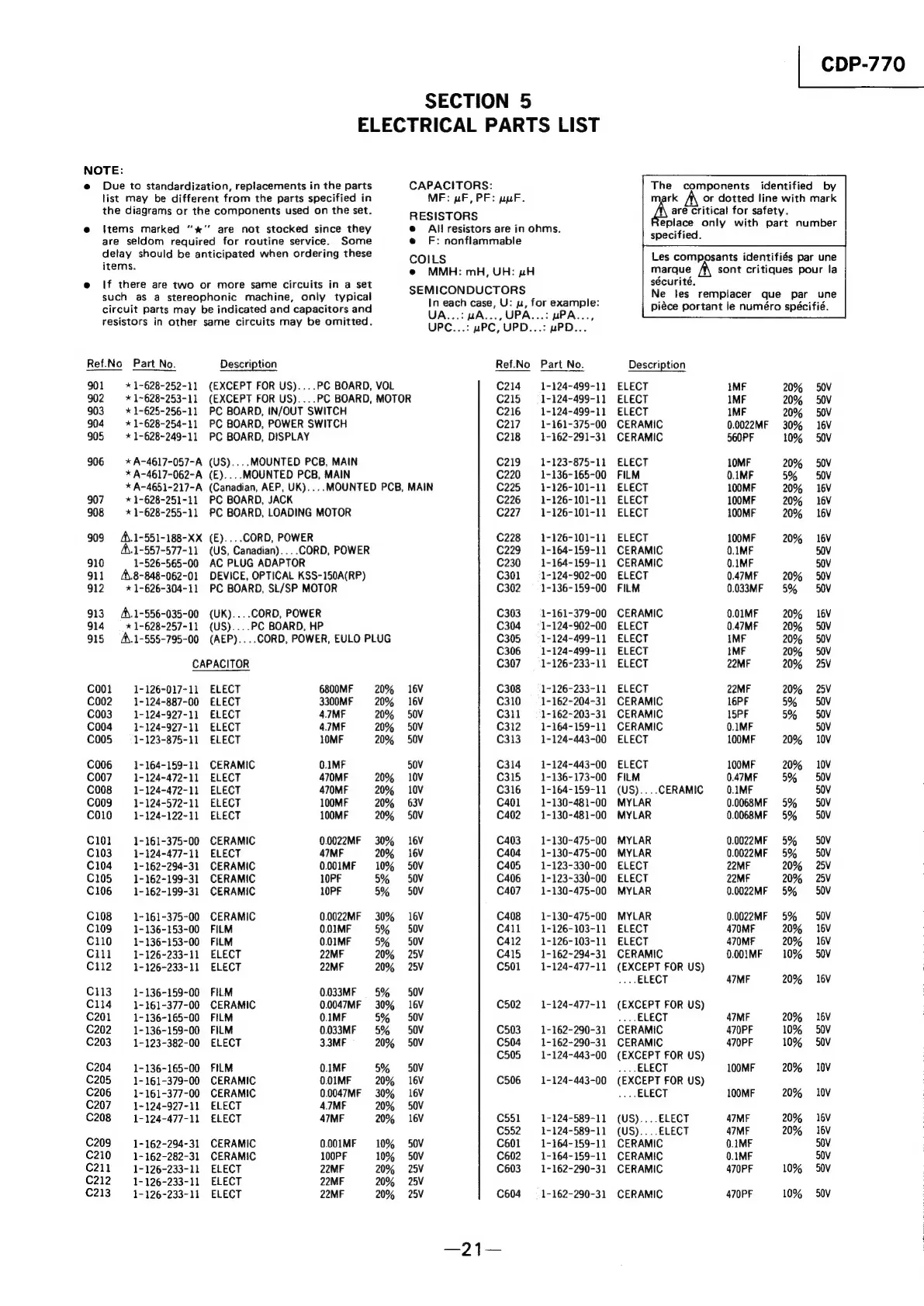

SECTION 5
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in the parts CAPACITORS: The components identified by
list may be different from the parts specified in MF: wF, PF: wu. rk A or dotted line with mark
the diagrams or the components used on the set. RESISTORS A are Critical for safety.
@ {tems marked “*” are not stocked since they e@ All resistors are in ohms. eatin only with part number
are seldom required for routine service. Some e@ F: nonflammable Speciee:
delay should be anticipated when ordering these COILS Les composants identifiés par une
items. © MMH: mH, UH: 2H marque sont critiques pour la
e If there are two or more same circuits in a set sécurité.
such as a stereophonic machine, only typical aad kwed i forexainete: Ne les remplacer que par une
circuit parts may be indicated and capacitors and WA... aA ' pA PA . piéce portant le numéro spécifié.
resistors in other same circuits may be omitted. UPC...: uPC, UPD...: uPD...
Ref.No Part No. Description Ref.No Part No. Description
901 * 1-628-252-11 (EXCEPT FOR US)....PC BOARD, VOL C214 1-124-499-11 ELECT IMF 20% 50V
902 »*1-628-253-11 (EXCEPT FOR US)....PC BOARD, MOTOR C215 =: 1-124-499-11 ELECT 1MF 20% 50V
903 * 1-625-256-11 PC BOARD, IN/OUT SWITCH C216 1-124-499-11 ELECT 1MF 20% 50V
904 * 1-628-254-11 PC BOARD, POWER SWITCH C217 1-161-375-00 CERAMIC 0.0022MF 30% 16V
905 * 1-628-249-11 PC BOARD, DISPLAY C218 1-162-291-31 CERAMIC 560PF 10% 50V
906 * A-4617-057-A (US).... MOUNTED PCB, MAIN C219 1-123-875-11 ELECT 10MF 20% 50V
* A-4617-062-A (E)....MOUNTED PCB, MAIN C220 1-136-165-00 FILM O.1MF 5% 50V
* A-4651-217-A (Canadian, AEP, UK).... MOUNTED PCB, MAIN C225 1-126-101-11 ELECT 100MF 20% 16V
907 * 1-628-251-11 PC BOARD, JACK C226 1-126-101-11 ELECT 100MF 20% 16V
908 * 1-628-255-11 PC BOARD, LOADING MOTOR C227 1-126-101-11 ELECT 100MF 20% 16V
909 A\.1-551-188-XX (E)....CORD, POWER C228 1-126-101-11 ELECT 100MF 20% 16V
A\.1-557-577-11 (US, Canadian)....CORD, POWER C229 1-164-159-11 CERAMIC 0.1MF 50V
910 1-526-565-00 AC PLUG ADAPTOR C230 1-164-159-11 CERAMIC 0.1MF 50V
911 A\.8-848-062-01 DEVICE, OPTICAL KSS-150A(RP) C301 =: 1-124-902-00 ELECT 0.47MF 20% 50V
912 * 1-626-304-11 PC BOARD, SL/SP MOTOR C302 =: 1-136-159-00 FILM 0.033MF 5% 50V
913 A\.1-556-035-00 (UK)....CORD, POWER C303. =: 1-161-379-00 CERAMIC 0.01MF 20% 16V
914 = * 1-628-257-11 (US)....PC BOARD, HP C304 =: 1-124-902-00 ELECT 0.47MF 20% 50V
915 A\.1-555-795-00 (AEP)....CORD, POWER, EULO PLUG C305 =: 1-124-499-11 ELECT IMF 20% 50V
C306 1-124-499-11 ELECT IMF 20% 50V
CAPACITOR C307 =: 1-126-233-11 ELECT 22MF 20% 25V
C001 1-126-017-11 ELECT 6800MF 20% 16V C308 =: 1-126-233-11 ELECT 22MF 20% 25V
C002 1-124-887-00 ELECT 3300MF 20% 16V C310 =: 1-162-204-31 CERAMIC 16PF 5% 50V
C003 1-124-927-11 ELECT 4.7MF 20% 50V C311 ~—- 1-162-203-31 CERAMIC 15PF 5% 50V
C004 1-124-927-11 ELECT 4.7MF 20% 50V C312. 1-164-159-11 CERAMIC 0.1MF 50V
C005 =: 1-123-875-11 ELECT 10MF 20% 50V C313: 1-124-443-00 ELECT 100MF 20% 10V
C006 1-164-159-11 CERAMIC 0.1MF 50V C314 1-124-443-00 ELECT 100MF 20% 10V
C007 1-124-472-11 ELECT 470MF 20% 10V C315 1-136-173-00 FILM 0.47MF 5% 50V
C008 1-124-472-11 ELECT 470MF 20% 10V C316 1-164-159-11 (US)....CERAMIC 0.1MF 50V
C009 1-124-572-11 ELECT 100MF 20% 63V C401 1-130-481-00 MYLAR 0.0068MF 5% 50V
C010 1-124-122-11 ELECT 100MF 20% 50V C402 1~130-481-00 MYLAR 0.0068MF 5% 50V
C101 1-161-375-00 CERAMIC 0.0022MF 30% 16V C403 1-130-475-00 MYLAR 0.0022MF 5% 50V
C103 1-124-477-11 ELECT 47MF 20% 16V C404 1-130-475-00 MYLAR 0.0022MF 5% 50V
C104 1-162-294-31 CERAMIC 0.001MF 10% 50V C405 1-123-330-00 ELECT 22MF 20% 25V
C105 1-162-199-31 CERAMIC 10PF 5% 50V C406 1-123-330-00 ELECT 22MF 20% 25V
C106 1-162-199-31 CERAMIC 10PF 5% 50V C407 1-130-475-00 MYLAR 0.0022MF 5% 50V
C108 1-161-375-00 CERAMIC 0.0022MF 30% 16V C408 1-130-475-00 MYLAR 0.0022MF 5% 50V
C109 1-136-153-00 FILM 0.01MF 5% 50V C411 1-126-103-11 ELECT 470MF 20% 16V
C110 1-136-153-00 FILM 0.01MF 5% 50V C412 1-126-103-11 ELECT 470MF 20% 16V
Cili 1-126-233-11 ELECT 22MF 20% 25V C415 1-162-294-31 CERAMIC 0.001MF 10% 50V
C112 1-126-233-11 ELECT 22MF 20% 25V C501 1-124-477-11 (EXCEPT FOR US)
... ELECT 47MF 20% l6V
C113 1-136-159-00 FILM 0.033MF 5% 50V
C114 1-161-377-00 CERAMIC 0.0047MF 30% 16V c502 1-124-477-11 (EXCEPT FOR US)
C201 1-136-165-00 FILM 0.1MF 5% 50V ... ELECT 47MF 20% 16V
C202 1-136-159-00 FILM 0.033MF 5% 50V C503 1-162-290-31 CERAMIC 470PF 10% 50V
C203 1-123-382-00 ELECT 3.3MF 20% 50V C504 1-162-290-31 CERAMIC 470PF 10% 50V
C505 1-124-443-00 (EXCEPT FOR US)
C204 1-136-165-00 FILM 0.1MF 5% 50V ... ELECT 100MF 20% 10V
C205 1-161-379-00 CERAMIC 0.01MF 20% 16V C506 1-124-443-00 (EXCEPT FOR US)
C206 1-161-377-00 CERAMIC 0.0047MF 30% 16V ... ELECT 100MF 20% 10V
C207 1-124-927-11 ELECT 4.7MF 20% 50V
C208 1-124-477-11 ELECT 47MF 20% 16V C551 1-124-589-11 (US)....ELECT 47MF 20% 16V
C552 1-124-589-11 (US).... ELECT 47MF 20% 16V
C209 1-162-294-31 CERAMIC 0.001MF 10% 50V C601 1-164-159-11 CERAMIC 0.1MF 50V
C210 1-162-282-31 CERAMIC 100PF 10% 50V C602 1-164-159-11 CERAMIC 0.1MF 50V
C211 1-126-233-11 ELECT 22MF 20% 25V C603 1-162-290-31 CERAMIC 470PF 10% 50V
C212 1-126-233-11 ELECT 22MF 20% 25V
C213 1-126-233-11 ELECT 22MF 20% 25V C604 =: 1-162-290-31 CERAMIC 470PF 10% 50V
