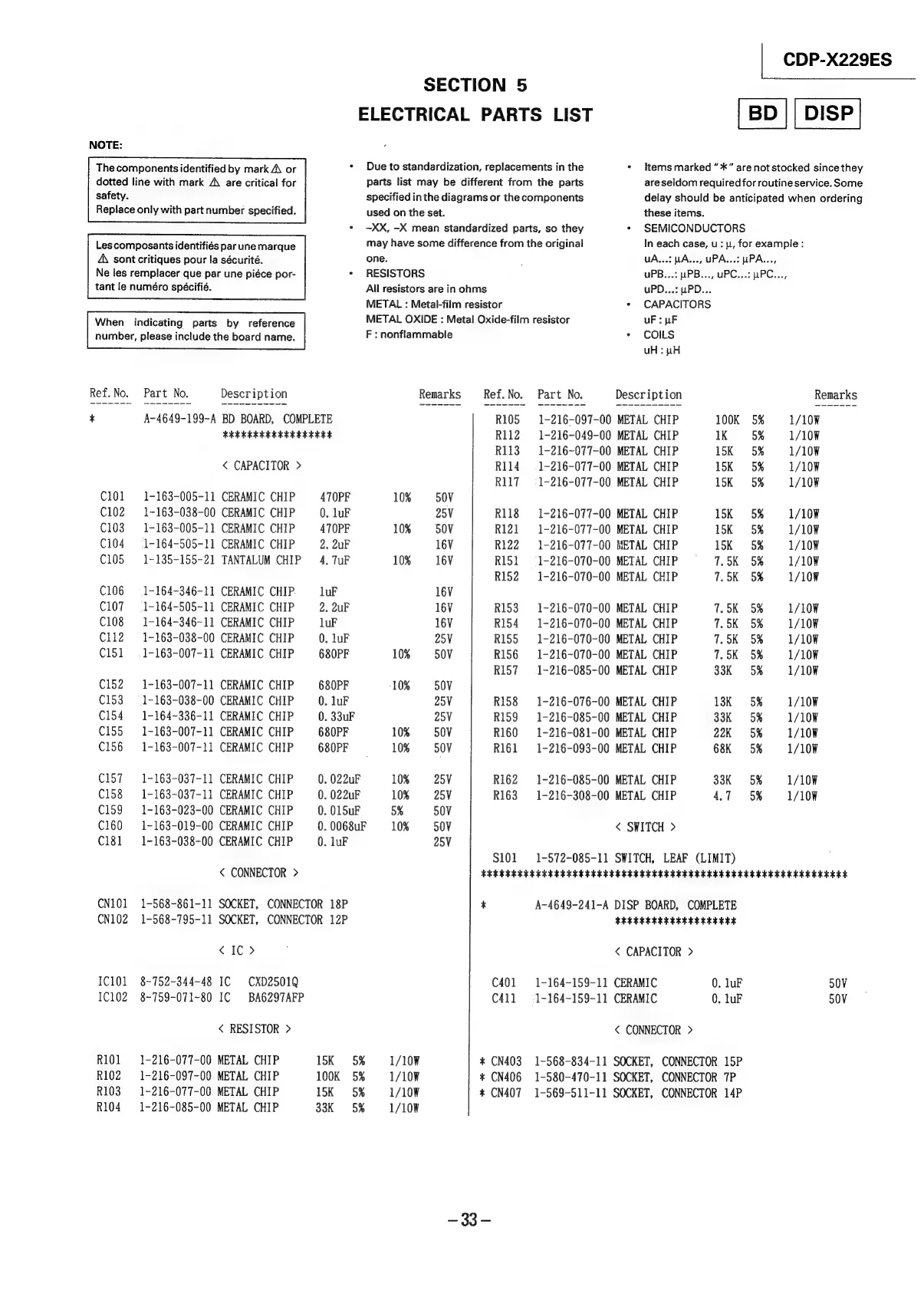

Sony CDP-X229ES - Electrical Parts List; BD Board Components

NOTE:
The components identified by mark A\ or
dotted line with mark A\ are critical for
safety.
Replace only with part number specified.
Lescomposants identifiés par une marque
A sont critiques pour la sécurité.
Ne les remplacer que par une piéce por-
tant le numéro spécifié. All resistors are in ohms uPD...: UPD...
METAL : Metal-film resistor CAPACITORS
METAL OXIDE : Metal Oxide-film resistor uF : LF
number, please include the board name. F : nonflammable COILS
uH : WH
Ref.No. Part No. Description Remarks Ref.No. Part No. Description Remarks
x A-4649-199-A BD BOARD, COMPLETE R105 1-216-097-00 METAL CHIP 100K 5% 1/10¥
KAKAKKAKKAKRERERKE R112 = 1-216-049-00 METAL CHIP 1K 5% 1/10¥
R113. -1-216-077-00 METAL CHIP 15K «5% 1/10¥
< CAPACITOR > R114 = 1-216-077-00 METAL CHIP 15K 5% 1/10¥
R117 =: 1-216-077-00 METAL CHIP 15K 5% 1/10¥
C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C102 1-163-038-00 CERAMIC CHIP 0. luF 25V R118 =1-216-077-00 METAL CHIP 15K = 5% 1/10¥
C103 1-163-005-11 CERAMIC CHIP 4T0PF 10% 5OV R121 1-216-077-00 METAL CHIP 15K = 5% 1/10¥
C104. =: 1-164-505-11 CERAMIC CHIP 2. 2uF 16V R122. =1-216-077-00 METAL CHIP 15K = 5% 1/10¥
C105 = 1-135-155-21 TANTALUM CHIP 4. TuF 10% 16V R151 =. 1-216-070-00 METAL CHIP 7.5K 5% 1/10¥
R152 1-216-070-00 METAL CHIP 7.5K 5% 1/108
C106 =. 1-164-346-11 CERAMIC CHIP. luF 16V
C107 =: 1-164-505-11 CERAMIC CHIP 2. 2uF 16V R153. 1-216-070-00 METAL CHIP 7.5K 5% 1/10¥
C108 1-164-346-11 CERAMIC CHIP luF 16V R154 =1-216-070-00 METAL CHIP 7.5K 5% 1/10¥
C112 =1-163~-038-00 CERAMIC CHIP 0. luF 25V R155 1-216-070-00 METAL CHIP 7.5K 5% 1/10¥
C151 = 1-163-007-11 CERAMIC CHIP 680PF 10% 50V R156 = =1-216-070-00 METAL CHIP 7.5K 5% 1/10¥
R157 = 1-216-085-00 METAL CHIP 33K 5% 1/10¥
C152 1-163-007-11 CERAMIC CHIP 680PF 10% 50V
C153 ~=—- 1-163-038-00 CERAMIC CHIP 0. luF 25V R158 1-216-076-00 METAL CHIP 13K 5% 1/10¥
C154 = 1-164-336-11 CERAMIC CHIP 0. 33uF 25V R159 = 1-216-085-00 METAL CHIP 33K 5% 1/10¥
C155 1-163-007-11 CERAMIC CHIP 680PF 10% 50V R160 1-216-081-00 METAL CHIP 22K 5% 1/10¥
C156 1-163-007-11 CERAMIC CHIP 680PF 10% 50V R161 1-216-093-00 METAL CHIP 68K 5% 1/10¥
C157 = 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V R162 1-216-085-00 METAL CHIP 33K 5% 1/10¥
C158 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V R163 =1-216-308-00 METAL CHIP 4,7 5% 1/10¥
Ci59 1-163-023-00 CERAMIC CHIP 0. 015uF 5% 50V
C160 1-163-019-00 CERAMIC CHIP 0. 0068uF 10% 50V < SWITCH >
C181 1-163-038-00 CERAMIC CHIP 0. luF 25V
S101 1-572-085-11 SWITCH, LEAF (LIMIT)
< CONNECTOR > PS SS St st ss estore sssseresssessss sss st ssssesttstststs sess sss ss:
CN101 1-568-861-11 SOCKET, CONNECTOR 18P * A-4649-241-A DISP BOARD, COMPLETE
CN102 1-568-795-11 SOCKET, CONNECTOR 12P KKEKKAKEKEAKAKEES ELS
< IC > < CAPACITOR >
IC101 8~-752-344-48 IC CXD2501Q C401 1-164-159-11 CERAMIC 0. luF 50V
IC102 8-759-071-80 IC BA6297AFP C411 =: 1-164-159-11 CERAMIC 0. luF 50V
< RESISTOR > < CONNECTOR >
R101 1-216-077~-00 METAL CHIP 15K = 5% 1/10¥ * CN403 1-568-834-11 SOCKET, CONNECTOR 15P
R102 1-216-097-00 METAL CHIP 100K 5% 1/10¥ * CN406 1-580-470-11 SOCKET, CONNECTOR 7P
R103 =1-216-077-00 METAL CHIP 15K 5% 1/10¥ * CN407 1-569-511-11 SOCKET, CONNECTOR 14P
R104 1-216-085-00 METAL CHIP 33K = 5% 1/10¥
SECTION 5
ELECTRICAL PARTS LIST
Due to standardization, replacements in the
parts list may be different from the parts
specified inthe diagrams or the components
used on the set.
-XX, -X mean standardized parts, so they
may have some difference from the original
one.
RESISTORS
| CDP-X229ES
Items marked “*” are not stocked since they
areseldom required for routine service. Some
delay should be anticipated when ordering
these items.
SEMICONDUCTORS
In each case, u: yp, for example:
UA...: HA..., UPA...: UPA...,
uPB...: wPB..., uPC...: WPC...,
=
