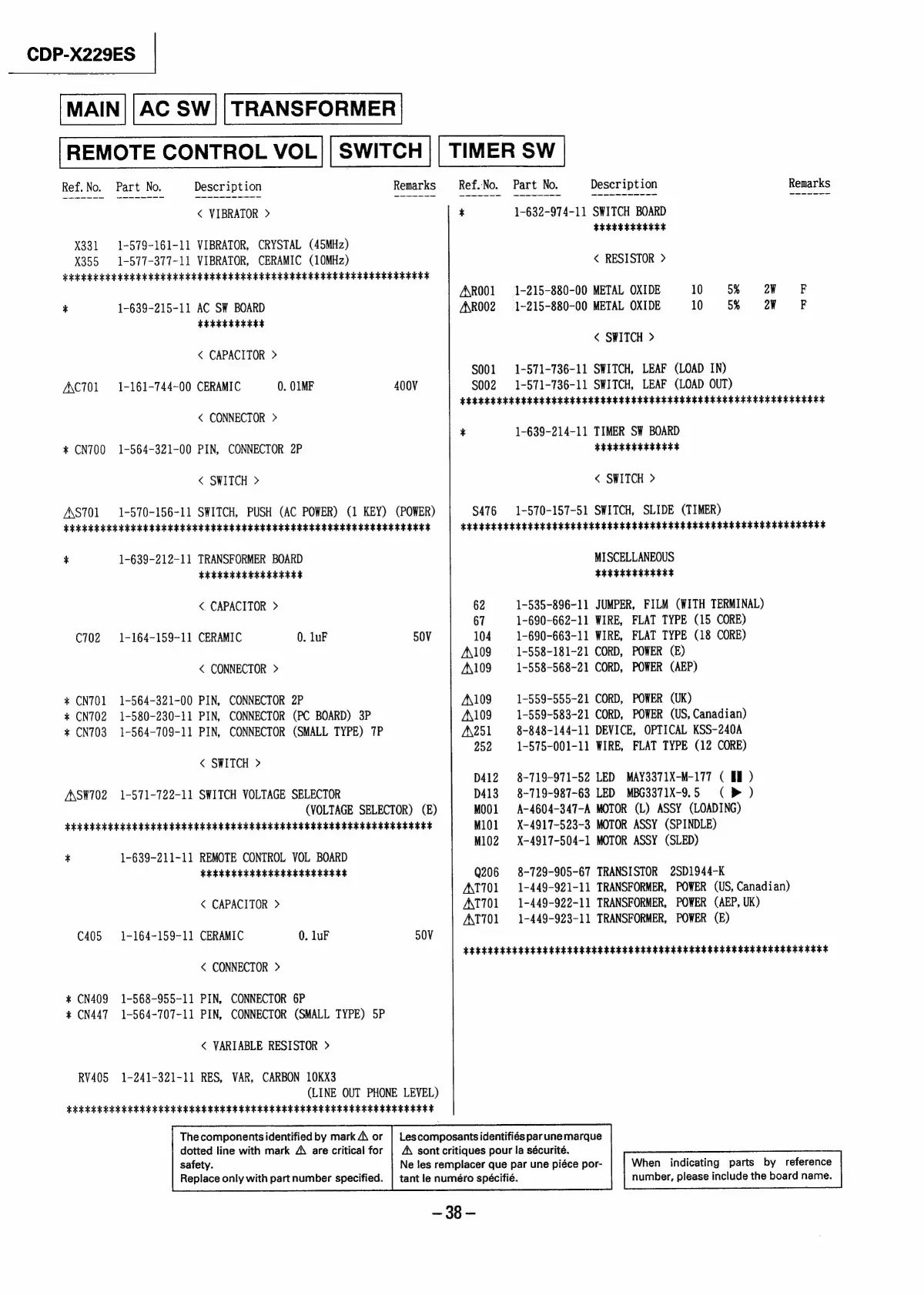

Sony CDP-X229ES - Page 28

CDP-X229ES |
Ref.No. Part No. Description Remarks
< VIBRATOR >
X331 1-579-161-11 VIBRATOR, CRYSTAL (45MHz)
X355. 1-577-377-11 VIBRATOR, CERAMIC (10MHz)
peeetiette etre tserttesettt ttt ests stttittett sett sss sets stl eS
k 1-639-215-11 AC SW BOARD
EAKKEKEK ERE
< CAPACITOR >
Ref..No. Part No. Description Remarks
x 1-632-974-11 SWITCH BOARD
KEKEREAEEEEE
< RESISTOR >
A\RO01 =: 1-215-880-00 METAL OXIDE 10 5% aW F
A\R002 =: 1-215-880-00 METAL OXIDE 10 5% av F
< SWITCH >
S001 1-571-736-11 SWITCH, LEAF (LOAD IN)
$002 1-571-736-11 SWITCH, LEAF (LOAD OUT)
KEKKEK AAA EK EAE ERE EEE EREREE EE REE EEE EEE EER ER RER REL ER RES EERE SE
AC701 ~—-1-161-744-00 CERAMIC 0. O1MF 400V
< CONNECTOR >
* CN700 1-564-321-00 PIN, CONNECTOR 2P
< SWITCH >
A\ST01 —-1-570-156-11 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
KKK KAKAKK ERE AKERE REAR ER ERE KER EE KEK ERE ARERR RRR E EE ERE EES EERE S
* 1-639-212-11 TRANSFORMER BOARD
KKEKKARE EERE ERE F
<. CAPACITOR >
C702 1-164-159~11 CERAMIC 0. luF 50V
< CONNECTOR >
* CN701 1-564-321-00 PIN, CONNECTOR 2P
* CN702 1-580-230-11 PIN, CONNECTOR (PC BOARD) 3P
* CN703 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P
< SWITCH >
A\SW702 1-571-722-11 SWITCH VOLTAGE SELECTOR
(VOLTAGE SELECTOR) (E)
KEKEKKKKKKAR KK EKE KER EAR AREER ERE REE ERE EE EER RES EER EER EEE EE EEE
t 1-639-211-11 REMOTE CONTROL VOL BOARD
KKEKKKEK AER EKARE REE KER ES
< CAPACITOR >
C405
1-164-159-11 CERAMIC Q. luF 50V
< CONNECTOR >
* CN409 1-568-955-11
* CN447 1-564-707-11
RV405 1-241-321-11
PIN, CONNECTOR 6P
PIN, CONNECTOR (SMALL TYPE) 5P
< VARIABLE RESISTOR >
RES, VAR, CARBON 10KX3
* 1-639-214-11 TIMER SW BOARD
KEKKEKESKEEETE
< SWITCH >
S476 1-570-157-51 SWITCH, SLIDE (TIMER)
KKK KKK KKK KEK EK ERK EAE KER ERA RE RES EERE EKER AER ERE REE E ER EAE EES
MISCELLANEOUS
EXKKKEKEKKKESE
62 1-535-896-11 JUMPER, FILM (WITH TERMINAL)
67 1-690-662-11 WIRE, FLAT TYPE (15 CORE)
104. 1-690-663-11 WIRE, FLAT TYPE (18 CORE)
A109 =: 1-558-181-21 CORD, POWER (E)
A109 —-:1-558-568-21 CORD, POWER (AEP)
A109: 1-559-555-21 CORD, POWER (UK)
A109 —-1-559-583-21 CORD, POWER (US, Canadian)
A251 —-8-848-144-11 DEVICE, OPTICAL KSS-240A
252 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
D412 8-719-971-52 LED MAY3371X-M-177 ( Hl )
D413 8-719-987-63 LED MBG3371X-9.5 ( » )
M001 A-4604-347-A MOTOR (L) ASSY (LOADING)
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
Q206 8-729-905-67 TRANSISTOR 2SD1944-K
AXT7101 1-449-921-11 TRANSFORMER, POWER (US, Canadian)
AXT701 —1-449-922-11 TRANSFORMER, POWER (AEP, UK)
AXT701 —1-449-923-11 TRANSFORMER, POWER (E)
EREKREAKEEEE ES AEEKERERE EEE EERE ERE EE ESER EER ER EET EER EERE EEE
(LINE OUT PHONE LEVEL)
KKAKKKEKK KAKA RRR ARK EKER ARERR ERE RAE RR EEE EEERER ERE RE EERE
The componentsidentified by mark A\ or
dotted line with mark A\ are critical for
safety.
Lescomposants identifiés par une marque
A\ sont critiques pour la sécurité.
Ne les remplacer que par une piéce por-
tant le numéro spécifié.
When indicating parts by reference
number, please include the board name.
Replace only with part number specified.
