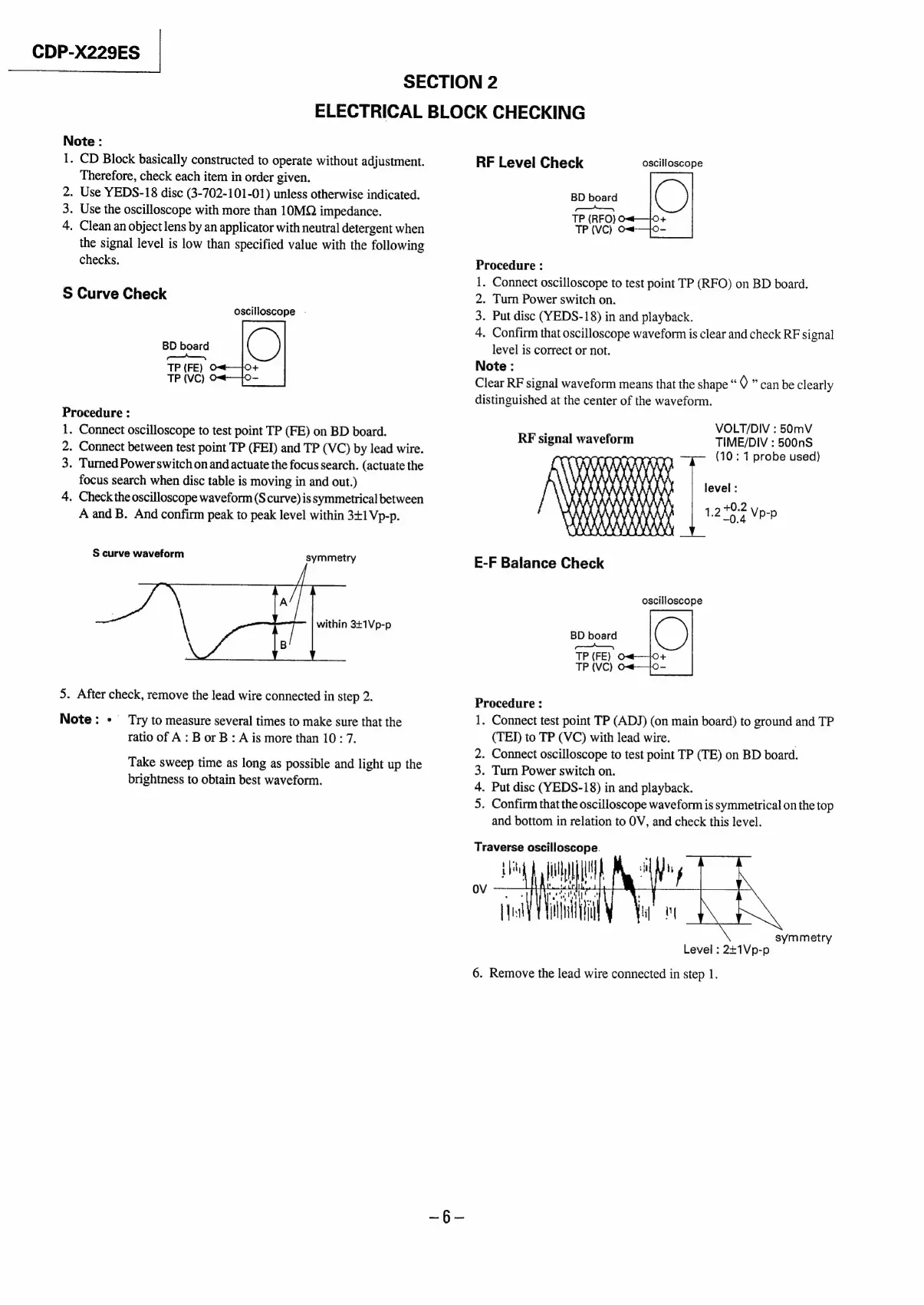

CDP-X229ES
|
SECTION
2
ELECTRICAL
BLOCK
CHECKING
Note
:
1.
CD
Block
basically
constructed
to
operate
without
adjustment.
Therefore,
check
each
item
in
order
given.
2.
Use
YEDS-18
disc
(3-702-101-01)
unless
otherwise
indicated.
.
Use
the
oscilloscope
with
more
than
10MQ
impedance.
4.
Clean
an
object
lens
by
an
applicator
with
neutral
detergent
when
the
signal
level
is
low
than
specified
value
with
the
following
checks.
Ww
S
Curve
Check
oscilloscope
-
BD
board
———
TP
(FE)
©
TP
(VC)
©
Procedure
:
1.
Connect
oscilloscope
to
test
point
TP
(FE)
on
BD
board.
2.
Connect
between
test
point
TP
(FEI)
and
TP
(VC)
by
lead
wire.
3.
Turned
Power
switch
on
and
actuate
the
focus
search.
(actuate
the
focus
search
when
disc
table
is
moving
in
and
out.)
4.
Check
the
oscilloscope
waveform
(S
curve)
is
symmetrical
between
A
and
B.
And
confirm
peak
to
peak
level
within
3+1
Vp-p.
S
curve
waveform
symmetry
within
3+1Vp-p
5.
After
check,
remove
the
lead
wire
connected
in
step
2.
Note:
+
Try
to
measure
several
times
to
make
sure
that
the
ratio
of
A:
B
or
B:
A
is
more
than
10:
7.
Take
sweep
time
as
long
as
possible
and
light
up
the
brightness
to
obtain
best
waveform.
RF
Level
Check
oscilloscope
BD
board
—_—
TP
(RFQ)
TP
(VC)
©
Procedure
:
1.
Connect
oscilloscope
to
test
point
TP
(RFO)
on
BD
board.
2.
Turn
Power
switch
on.
3.
Put
disc
(YEDS-18)
in
and
playback.
4.
Confirm
that
oscilloscope
waveform
is
clear
and
check
RF
signal
level
is
correct
or
not.
Note
:
Clear
RF
signal
waveform
means
that
the
shape
0”
can
be
clearly
distinguished
at
the
center
of
the
waveform.
VOLT/DIV
:
50mV
TIME/DIV
:
500nS
(10
:
1
probe
used)
RF
signal
waveform
iereere
ARAB
Mi
vii
ss
Wh
E-F
Balance
Check
AAD
XX
f,
a
level
:
+0.2
1.2
0.4
Vp-p
oscilloscope
BD
board
——
TP
(FE)
©
TP
(VC)
©
Procedure
:
1.
Connect
test
point
TP
(ADJ)
(on
main
board)
to
ground
and
TP
(TEI)
to
TP
(VC)
with
lead
wire.
.
Connect
oscilloscope
to
test
point
TP
(TE)
on
BD
board.
Turn
Power
switch
on.
.
Put
disc
(YEDS-18)
in
and
playback.
.
Confirm
that
the
oscilloscope
waveform
is
symmetrical
on
the
top
and
bottom
in
relation
to
OV,
and
check
this
level.
APR
wWN
Traverse
oscilloscope.
ug
wil
a
OV
ATR
symmetry
Level
:
2£1Vp-p
6.
Remove
the
lead
wire
connected
in
step
1.
