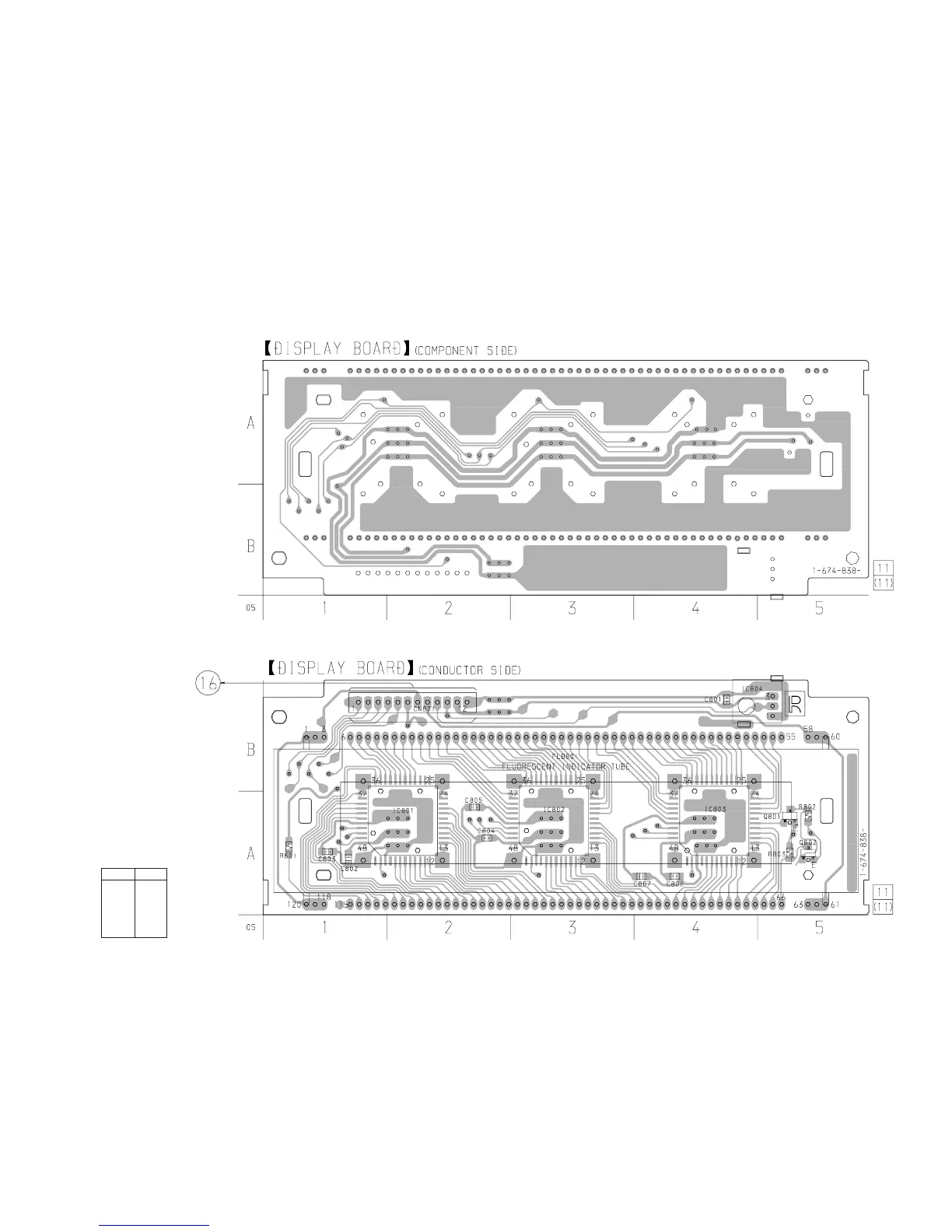

6-18. PRINTED WIRING BOARD – DISPLAY Board – • See page 17 for Circuit Boards Location.
Ref. No. Location
IC801 A-2
IC802 A-3
IC803 A-4
IC804 B-5
Q801 A-5
Q802 A-5
• Semiconductor Location
(Conductor Side)
(Page 22)
