Sony CDP-XA555ES - Printed Wiring Board - POWER Board (Conductor Side)

3535
CDP-XA555ES

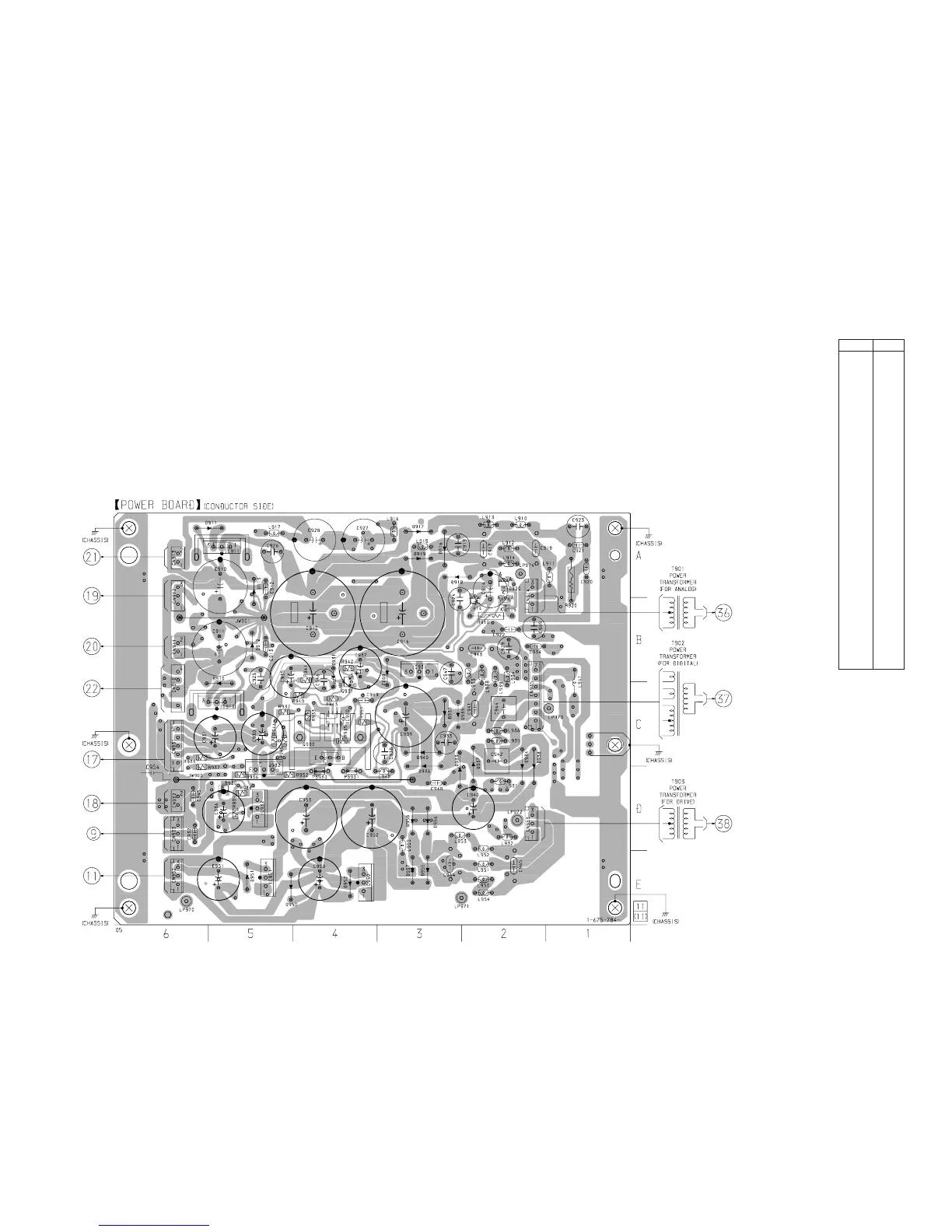

6-21. PRINTED WIRING BOARD – POWER Board (Conductor Side) – • See page 17 for Circuit Boards Location.
D910 C-5
D911 A-5
D912 B-5
D913 A-5
D914 B-2
D915 B-2
D916 A-3
D917 A-3
D918 A-3
D919 A-3
D920 A-2
D930 D-5
D931 B-4
D932 B-3
D933 D-3
D934 D-2
D935 C-3
D936 D-3
D937 C-2
D938 D-2
D939 C-3
D940 C-3
D950 E-5
D951 E-5
D952 E-4
D955 E-3
D956 D-3
D957 E-3
D958 D-3
IC910 C-5
IC911 A-5
IC930 C-4
IC931 B-3
IC932 D-5
IC950 E-4
IC951 E-5
Q930 C-4
Q931 C-4
Q932 C-5
Ref. No. Location
• Semiconductor Location
(Conductor Side)
(Page 25)
(Page 25)
(Page 25)
(Page 25)
(Page 25)
(Page 25)
(Page 19)
(Page 19)
(Page 34)
(Page 34)
(Page 34)
