Sony CDP-XA555ES - Front Panel Assembly Details; Front Panel and Side Panel Components

9

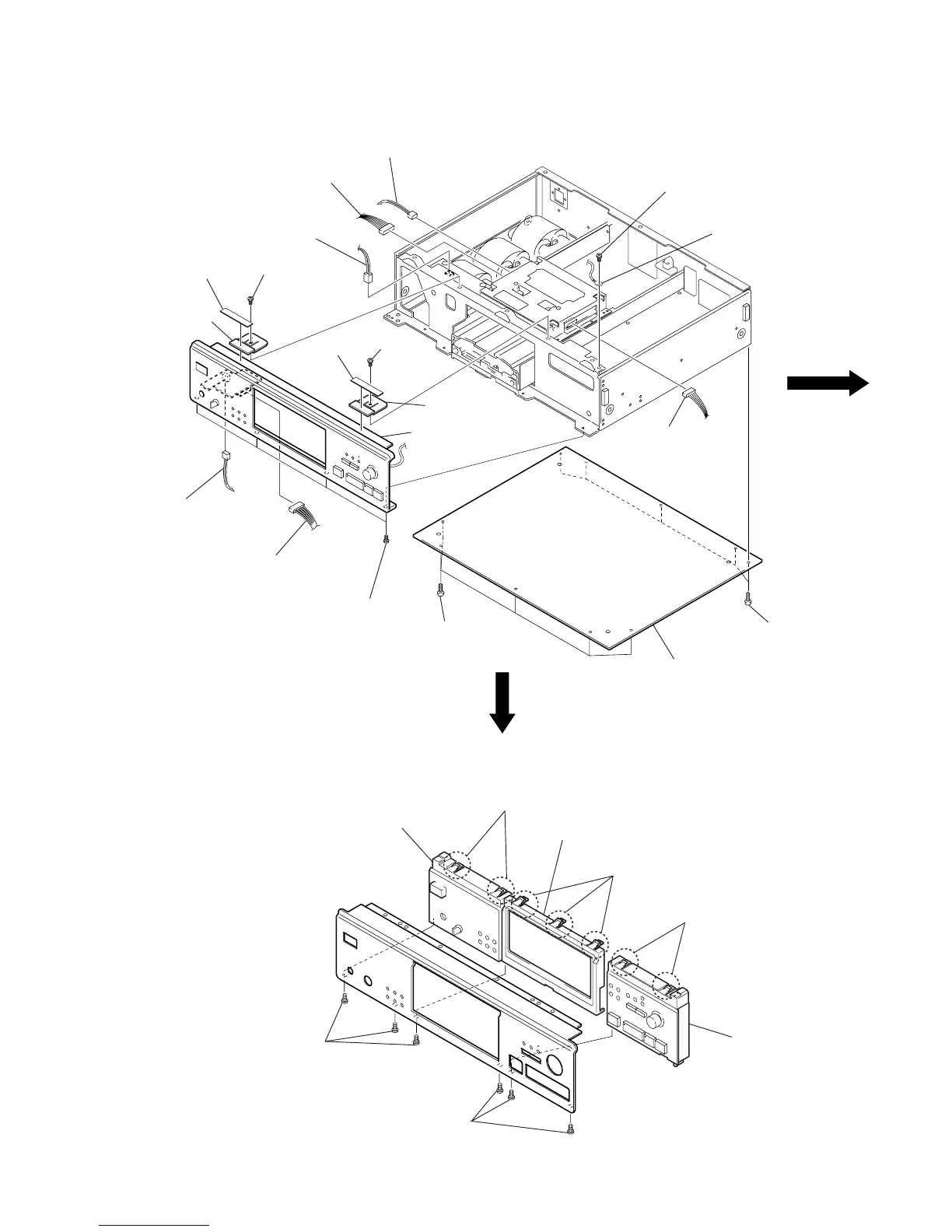

FRONT PANEL
PANEL (L) , (M) , (R)
2 bottom plate
1 five screws
(BVTT3
× 8)
1 five screws
(BVTT3
× 8)
qf four screws
(BVTT3
× 8)
6 screw
(3
× 8)
6 screw
(3
× 8)
5 spacer
3 screw
(BVTT3
× 6)
0 connector
(CN202)
4 harness
8 connector
(CN351)
qa connector
(CN901)
qs connector
(CN201)
qd connector
(CN203)
9 connector
(CN461)
7 bracket
5 spacer
7 bracket
qg front panel
7 panel (L)
6 two claws
5 panel (MD)
3 panel (R)
4 three claws
1 three screws
(BVTT3
× 8)
1 three screws
(BVTT3
× 8)
2 two claws
