Sony CDX-CA720X - Main Board Section

34
CDX-CA720X

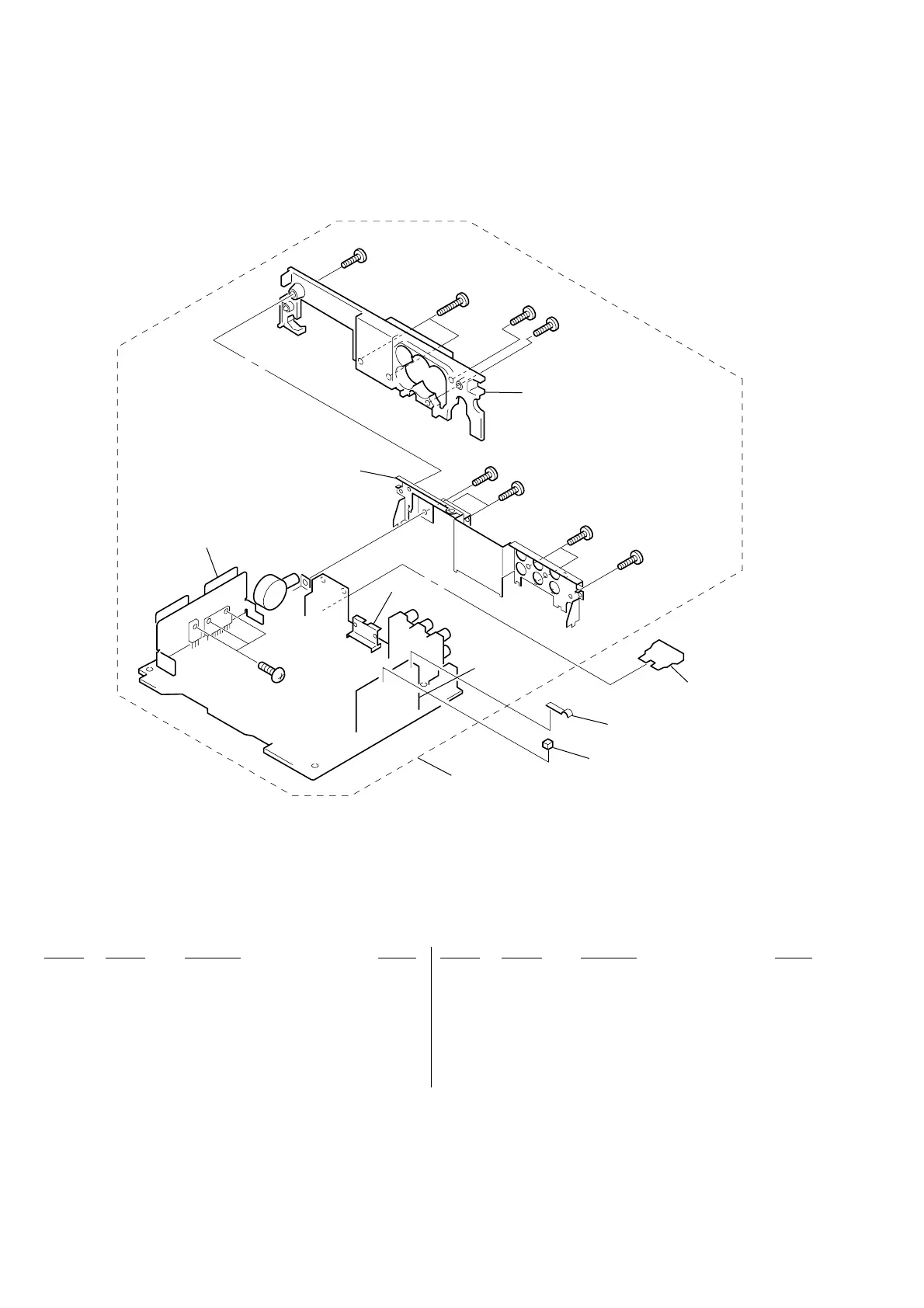

4-2. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
52
56
F901
TU10
#4
57
51
54
53
#6
#6
#6
#6
#5
#7
#5
#5
55
51 A-3340-333-A MAIN BOARD, COMPLETE
52 3-236-285-01 HEAT SINK (REG)
* 53 3-040-998-01 BRACKET (IC)
* 54 3-223-783-01 CHASSIS (BACK)
* 55 3-223-780-11 HEAT SINK
* 56 3-045-878-01 PLATE (TU), GROUND
* 57 3-045-877-02 CUSHION (TU)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU10 A-3220-812-A TUNER UNIT (TUX-020)
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#5 7-685-794-09 SCREW +PTT 2.6X10 (S)
#6 7-685-793-09 SCREW +PTT 2.6X8 (S)
#7 7-685-797-09 SCREW +PTT 2.6X16 (S)
