Sony CDX-CA720X - CD Mechanism Section (2)

37
CDX-CA720X
204
201
206
207
208
210
212
211
209
202
202
202
203
213
207
215
D
D
214
205
216
217
216

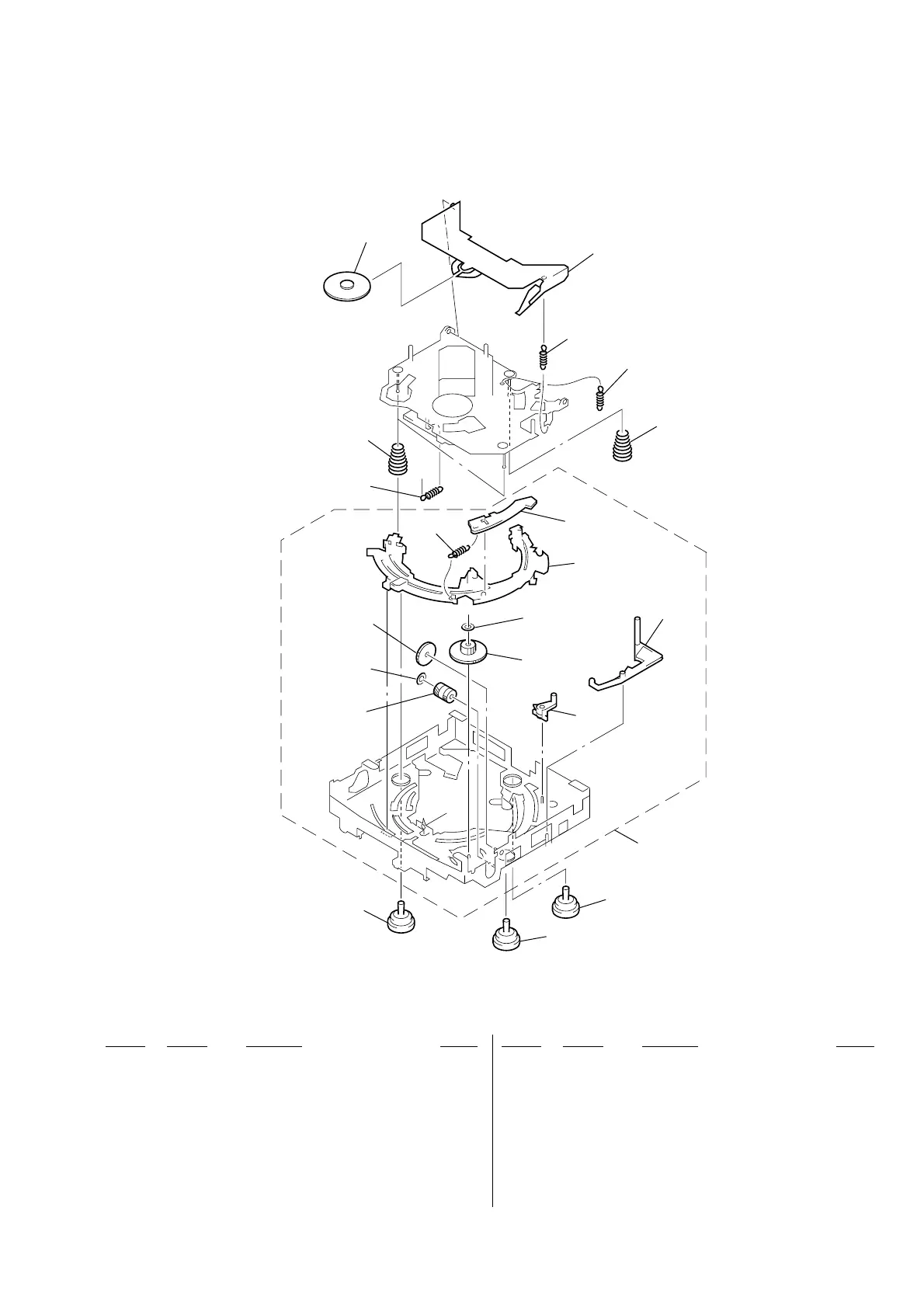

4-5. CD MECHANISM SECTION (2)
(MG-393XA-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 X-3378-956-8 ARM ASSY, CHUCKING
202 3-931-897-61 DAMPER (T)
203 3-039-627-01 LEVER (D)
204 3-040-165-02 RETAINER (DISC)
205 3-014-727-01 WHEEL (LW), WORM
206 3-931-895-01 SPRING (CH), TENSION
207 3-931-898-01 SPRING (FL), COMPRESSION
208 3-032-483-02 SPRING (KF1), TENSION
209 A-3315-243-D CHASSIS (M) ASSY
210 3-220-180-01 SPRING (TR2), TENSION
211 3-931-881-03 LEVER (LOCK)
212 3-931-882-02 GEAR (MDL)
213 3-007-537-11 WHEEL (U), WORM
214 3-039-626-01 LEVER (TR)
215 3-032-484-01 SPRING (KR1), TENSION
216 3-018-272-01 WASHER
217 3-225-093-22 RING, LOADING
