CDX-CA720X
Ref. No. Part No. Description Remark
302301
304 305 306
303
MISCELLANEOUS
***************
9 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
251 X-3378-598-1 CHASSIS (OP) ASSY (including M901)
257 1-659-880-11 MOTOR FLEXIBLE BOARD
0 260 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
*************************************************************
ACCESSORIES
************
1-477-110-21 REMOTE COMMANDER (RM-X118)
3-230-047-01 LID, BATTERY CASE (for RM-X118)
3-237-887-11 MANUAL, INSTRUCTION (ENGLISH)
3-237-888-11 MANUAL, INSTRUCTION INSTALL (ENGLISH)
X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
*************************************************************

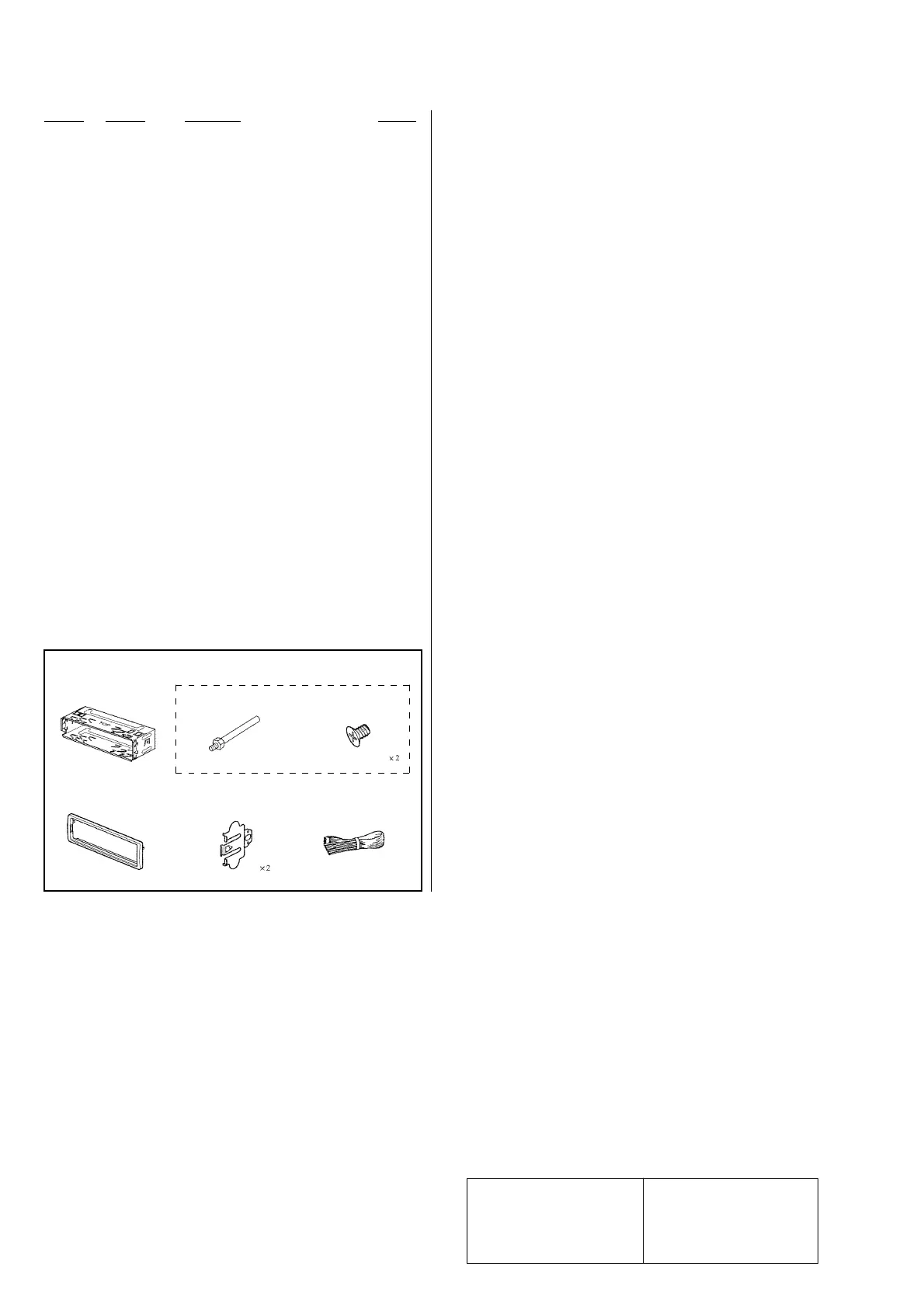

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
301 X-3373-602-2 FRAME ASSY
302 7-685-233-19 SCREW +KTP 2.6X6 TYPE2 NON-SLIT
303 3-934-325-01 SCREW, +K (5X8) TAPPING
304 3-236-447-01 COLLAR
305 3-233-644-02 SPRING, FITTING
306 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
