Sony CDX-F7750 Service Manual

5
CDX-F7710/F7710S/F7715X/F7750/F7750S
SECTION 1
GENERAL
This section is extracted
from instruction manual.
• LOCATION OF CONTROL
• CDX-F7715X
6

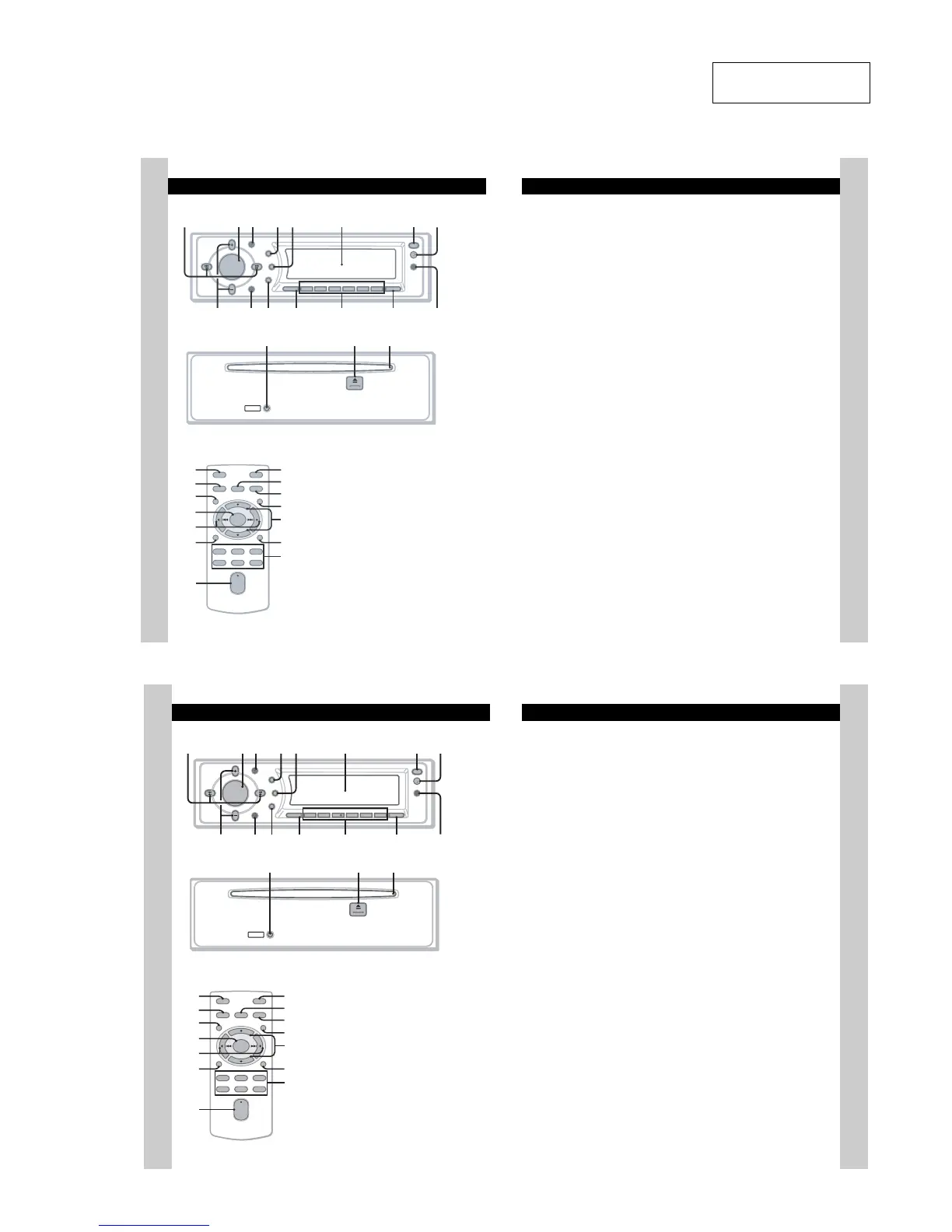

Location of controls and basic operations
Main unit
Front panel removed
Card remote commander
RM-X152
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A SEEK –/+ buttons
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); fast-forward/
reverse a track (press and hold).
B Volume control dial/SOUND button 9
To adjust volume (rotate); select sound items
(press).
C MODE button 8, 12
To select the radio band (FM/AM)/select the
unit*
1
.
D DSO button 2
To select the DSO mode (1, 2, 3 or OFF).
The larger the number, the more enhanced
the effect.
P
U
S
H
S
O
U
N
D
GP/
PRESET
MODE
GP/
PRESET
SEEK
+
SEEK
– IMAGE
OFF
DSO
EQ7
SCRL
REP SHUF BBE MP PAUSE
6
OPEN
D
E
SOURCE DSPL1
S
2534
CDX-F7715X
CDX-F7710
123456 78
9q;qaqs qd qf qg
RESET
qh qj qk
OFF
DSPL
REP SHUF
MENU
SCRL
LIST/
CAT
SOURCE SOUND MODE
PAU SE
132
465
ATT
VOL
+
–
+
–
ENTER
qs
wg
ql
wf
3
q;
5
w;
wa
qf
wd
ws
qd
wh
7
E SCRL (scroll) button 8
To scroll the display item.
F Display window
G OPEN button 5
H Receptor for the card remote
commander
I GP*
2
/PRESET +/– buttons
To select preset stations/skip groups (press);
skip groups continuously (press and hold).
J OFF button
To power off/stop the source.
K EQ7 (equalizer) button
To select an equalizer type (Xplod, VOCAL,
CLUB, JAZZ, NEWAGE, ROCK, CUSTOM
or OFF).
L SOURCE button
To power on/change the source (Radio/CD/
MD*
3
/AUX*
4
).
M Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
CD/MD*
3
:
(1): REP 8
(2): SHUF 8
(5): BBE MP*
5
*
6
3
To activate the BBE MP function, set “BBE
MP on.” To cancel, set “BBE MP off.”
(6): PAUSE*
6
To pause playback. To cancel, press again.
N DSPL (display) button 8, 10
To change display items.
O IMAGE button 2
To select the display image.
Space Producer mode t Wall paper mode
1-3 t Spectrum analyzer mode 1-5 t
Movie mode 1-3 t normal play/reception
mode
P RESET button 4
Q Z (eject) button 5
To eject the disc.
R Disc slot 5
To insert the disc.
The following buttons on the card remote
commander have also different buttons/functions
from the unit.
ql MENU button
To enter menu.
w; ENTER button
To complete a setting.
wa < (.)/, (>) buttons
To control radio/CD, the same as (SEEK) –/
+ on the unit.
ws VOL (volume) +/– button
To adjust volume.
wd ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wf SOUND button 9
To select sound items.
wg LIST/CAT*
7
button 9, 12
To list up.
wh M (+)/m (–) buttons
To control radio/CD, the same as
(GP/PRESET) +/– on the unit.
*1 When a CD/MD changer is connected.
*2 When an MP3/ATRAC CD is played and a changer
is not connected. If the changer is connected, the
operation is different, see page 12.
*3 When an MD changer is connected.
*4 When an optional Sony portable device is
connected.
*5 The unit only.
*6 When playing back on this unit.
*7 When the XM tuner is connected.
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless
(SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
Tip
For details on how to replace the battery, see
“Replacing the lithium battery of the card remote
commander” on page 14.
6
Location of controls and basic operations
Main unit
Front panel removed
Card remote commander
RM-X154
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A SEEK –/+ buttons
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); fast-forward/
reverse a track (press and hold).
B Volume control dial/SOUND button 11
To adjust volume (rotate); select sound items
(press).
C MODE button 8, 12
To select the radio band (FM/MW/LW)/
select the unit*
1
.
D DSO button 2
To select the DSO mode (1, 2, 3 or OFF).
The larger the number, the more enhanced
the effect.
P
U
S
H
S
O
U
N
D
GP/
PRESET
MODE
GP/
PRESET
SEEK
+
SEEK
– IMAGE
OFF
DSO
EQ7
SCRL
REP SHUF BBE MP PAUSE
6
OPEN
D
E
SOURCE AF/TA 1
S
2534
CDX-F7710S
CDX-F7710
123456 78
9q;qaqs qd qf qg
RESET
qh qj qk
OFF
DSPL/PTY
REP SHUF
MENU LIST
SCRL
SOURCE SOUND MODE
PAU SE
132
465
ATT
VOL
+
–
+
–
ENTER
qs
wh
ql
wg
3
q;
5
w;
wa
ws
wf
wd
qd
wj
7
E SCRL (scroll) button 8
To scroll the display item.
F Display window
G OPEN button 5
H Receptor for the card remote
commander
I GP*
2
/PRESET +/– buttons
To select preset stations/skip groups (press);
skip groups continuously (press and hold).
J OFF button
To power off/stop the source.
K EQ7 (equalizer) button
To select an equalizer type (Xplod, VOCAL,
CLUB, JAZZ, NEWAGE, ROCK, CUSTOM
or OFF).
L SOURCE button
To power on/change the source (Radio/CD/
MD*
3
/AUX*
4
).
M Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
CD/MD*
3
:
(1): REP 8
(2): SHUF 8
(5): BBE MP*
5
*
6
2
To activate the BBE MP function, set “BBE
MP on.” To cancel, set “BBE MP off.”
(6): PAU SE*
6
To pause playback. To cancel, press again.
N AF (Alternative Frequencies)/TA
(Traffic Announcement) button 9, 10
To set AF and TA/TP in RDS.
O IMAGE button 2
To select the display image.
Space Producer mode t Wall paper mode
1-3 t Spectrum analyzer mode 1-5 t
Movie mode 1-3 t normal play/reception
mode
P RESET button 4
Q Z (eject) button 5
To eject the disc.
R Disc slot 5
To insert the disc.
The following buttons on the card remote
commander have also different buttons/functions
from the unit.
ql MENU button
To enter menu.
w; ENTER button
To complete a setting.
wa < (.)/, (>) buttons
To control radio/CD, the same as (SEEK)
–/+ on the unit.
ws DSPL (display)/PTY (Programme
Type) button 8, 10, 13
To change display items; to select PTY in
RDS.
wd VOL (volume) +/– button
To adjust volume.
wf ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wg SOUND button 11
To select sound items.
wh LIST button 9, 13
To list up.
wj M (+)/m (–) buttons
To control radio/CD, the same as
(GP/PRESET) +/– on the unit.
*1 When a CD/MD changer is connected.
*2 When an MP3/ATRAC CD is played and a changer
is not connected. If the changer is connected, the
operation is different, see page 13.
*3 When an MD changer is connected.
*4 When an optional Sony portable device is
connected.
*5 The unit only.
*6 When playing back on this unit.
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless
(SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
Tip
For details on how to replace the battery, see
“Replacing the lithium battery of the card remote
commander” on page 16.
