CDX-GT24W/GT240/GT290/GT290S

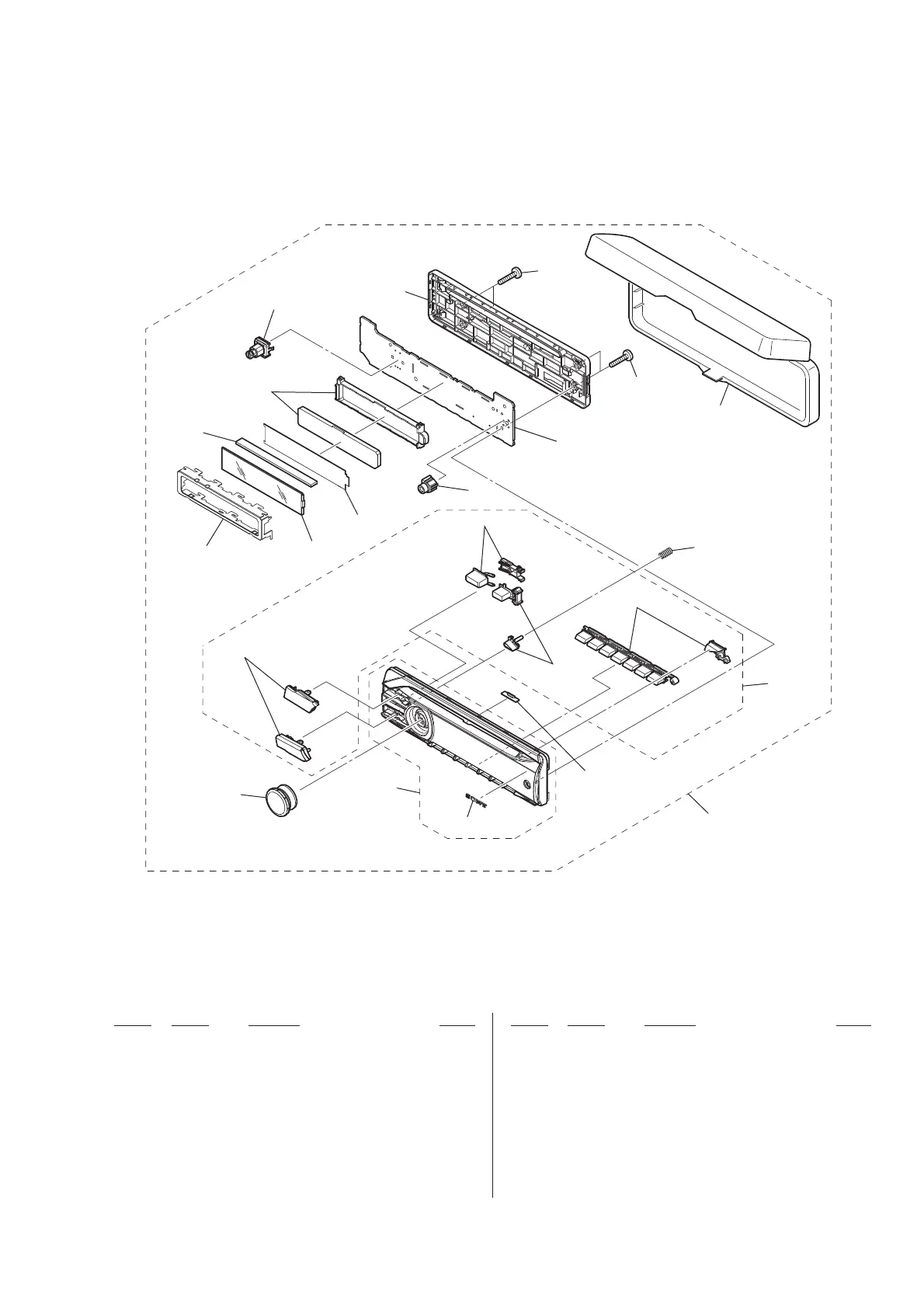

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1730-177-A PANEL COMPLETE ASSY, FRONT (GT24W)
51 A-1731-210-A PANEL COMPLETE ASSY, FRONT (GT290)
51 A-1731-216-A PANEL COMPLETE ASSY, FRONT (GT290S)
51 A-1731-267-A PANEL COMPLETE ASSY, FRONT (GT240)
52 X-2349-669-1 BUTTON ASSY (S)
53 3-251-320-01 EMBLEM (NO. 2.5), SONY
54 X-2349-671-1 PANEL (SV) ASSY, FRONT (GT24W)
54 X-2514-357-1 PANEL (SV) ASSY, FRONT (GT240)
54 X-2514-361-1 PANEL (SV) ASSY, FRONT (GT290)
54 X-2514-362-1 PANEL (SV) ASSY, FRONT (GT290S)
55 X-2349-670-1 KNOB (VOL) (SV) ASSY
56 2-639-881-01 SPRING (RELEASE)
57 1-780-789-11 CONDUCTIVE BOARD, CONNECTION
58 4-144-557-01 ILLUMINATOR (LCD)
59 4-144-543-01 PANEL, BACK
60 3-250-543-21 SCREW (+B P-TITE M2)
61 X-2187-544-2 CASE ASSY (for FRONT PANEL) (GT290/GT290S)
J901 1-822-148-11 SMALL TYPE JACK (VERTICAL) (AUX)
LCD901 1-802-956-11 DISPLAY PANEL, LIQUID CRYSTAL
S909 1-479-902-32 ENCODER, ROTARY (PUSH SELECT/VOLUME)
LCD901
not supplied
not supplied
not supplied
(KEY board)
not supplied
not supplied
not supplied
not supplied
not supplied
51
52
54
55
56
57
58
59
60
S909
J901
60
53
61
