Sony CDX-GT48UM User Manual

30
CDX-GT48UM/GT480U/GT480US/GT484US
51 X-2320-896-1 BUTTON ASSY (S)
52 X-2320-897-1 PANEL (SV) ASSY, FRONT (GT480U)
52 X-2320-902-1 PANEL (SV) ASSY, FRONT (GT480US)
52 X-2320-903-1 PANEL (SV) ASSY, FRONT (GT484US)
52 X-2320-904-1 PANEL (SV) ASSY, FRONT (GT48UM)
53 X-2318-581-1 KNOB (VOL) (SV) ASSY
54 2-349-626-01 SPRING (RELEASE)
55 1-780-659-11 CONNECTOR (RUBBER)
56 3-398-493-01 ILLUMINATOR (LCD)
57 3-876-504-01 PANEL, BACK
58 3-250-543-91 SCREW (+B P-TITE M2)
59 X-2186-697-1 CASE ASSY (for FRONT PANEL)
60 A-1568-621-A PANEL COMPLETE ASSY, FRONT (GT480U)
60 A-1568-661-A PANEL COMPLETE ASSY, FRONT (GT480US)
60 A-1568-675-A PANEL COMPLETE ASSY, FRONT (GT484US)
60 A-1568-678-A PANEL COMPLETE ASSY, FRONT (GT48UM)
CN902 1-820-858-21 CONNECTOR, USB (SOCKET) 6P (USB)
LCD901 1-802-764-11 DISPLAY PANEL, LIQUID CRYSTAL
RE901 1-479-902-32 ENCODER, ROTARY
(PUSH ENTER/SELECT (VOLUME))
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

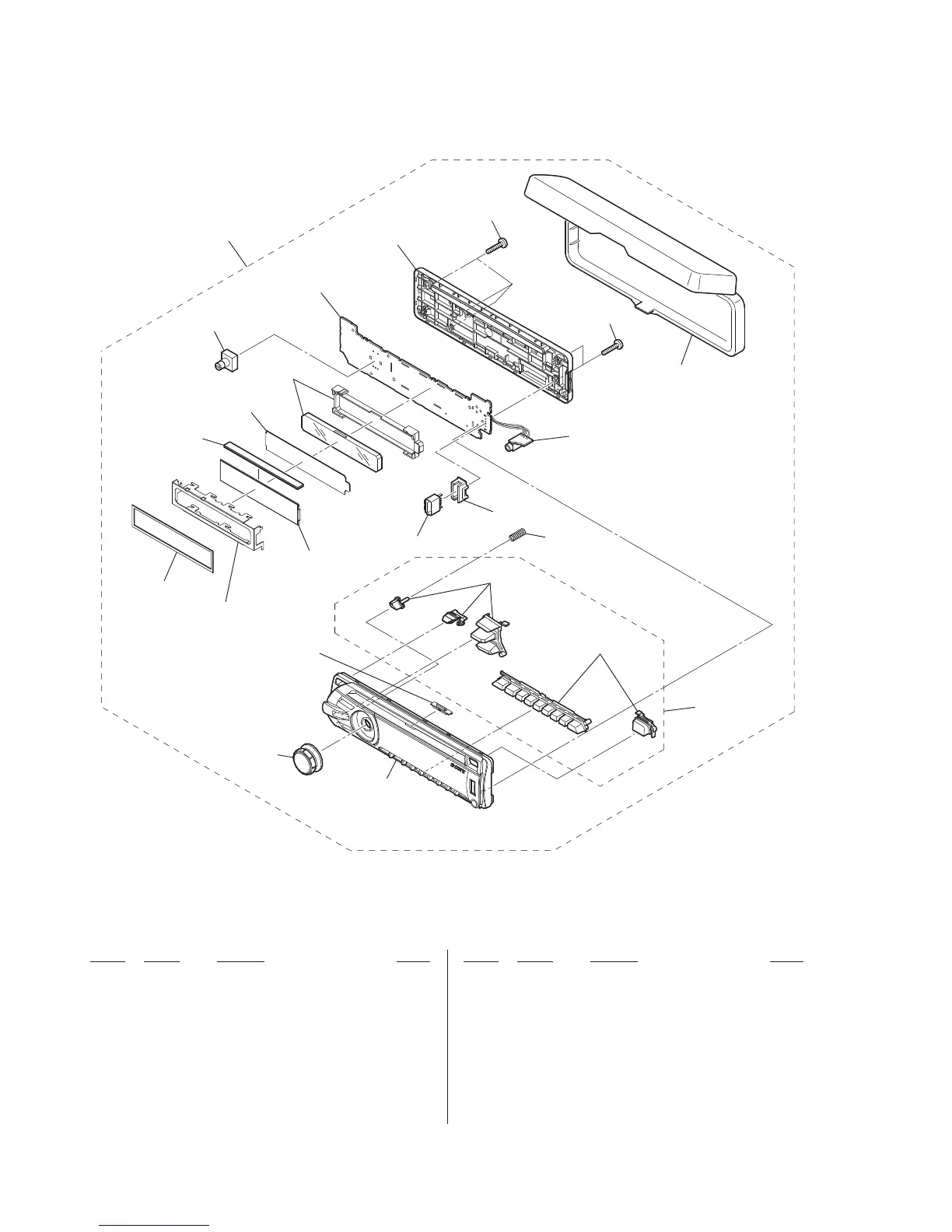

5-2. FRONT PANEL SECTION
LCD901
CN902
RE901
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(KEY board)
51
52
53
54
55
56
57
58
58
59
60
not supplied
(JACK board)
not supplied
