CDX-GT48UM/GT480U/GT480US/GT484US
9

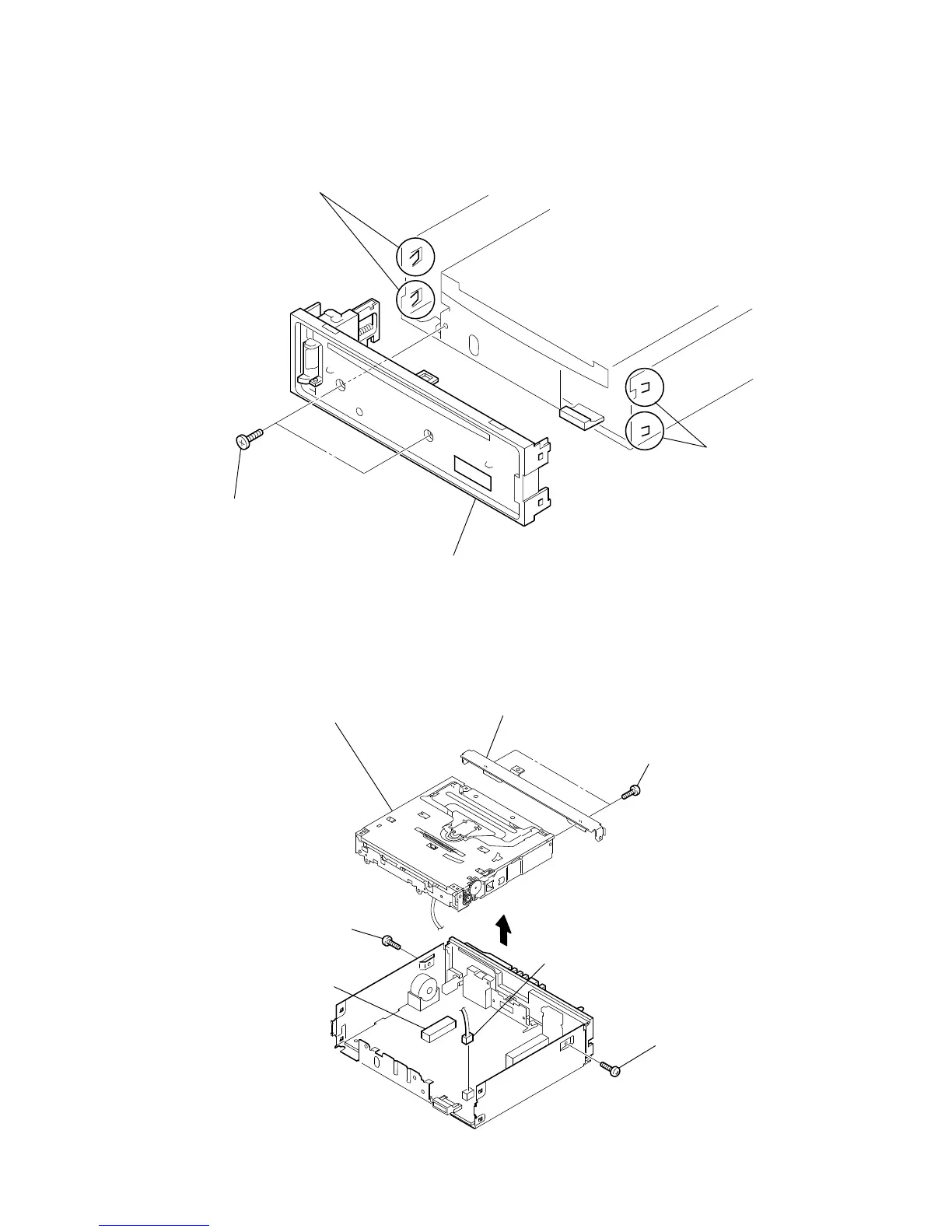

Note: Follow the disassembly procedure in the numerical order shown below.
3-1. SUB PANEL ASSY
3-2. CD MECHANISM BLOCK
two claws
two claws
sub panel assy
two
screws
(+PTT 2.6
×
6)
CN701
CN501 (3P)

screw
(+PTT 2.6
×
6)

screw
(+PTT 2.6
×
6)
two
screws
(+PTT 2.6
×
4)
bracket (CD)
CD mechanism block
