Sony CDX-GT49UM Service Manual

CDX-GT49UM/GT490U/GT490US/GT494U
10

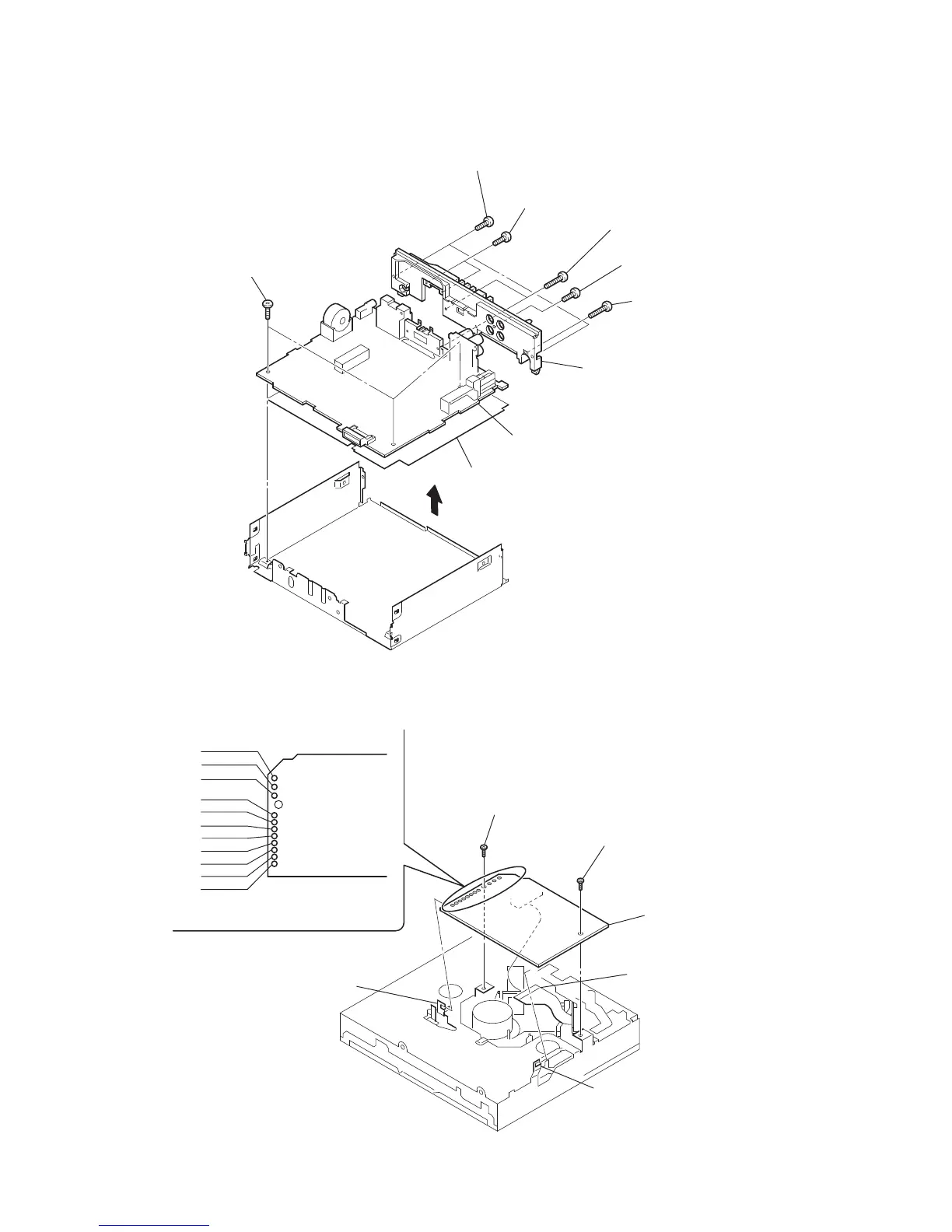

3-3. MAIN BOARD
3-4. SERVO BOARD
9 MAIN board
insulating sheet
3
2 two screws
(+PTT 2.6 u 8)
1 three screws
(+BTT 2.6
u 5)
7 screw
(+PTT 2.6
u 10)
8 heat sink
4 two
screws
(+P 2.6
u 8)
6 screw
(+P 2.6
u 8)
5 two screws
(+PTT 2.6
u 10)
7 SERVO board
SERVO board
3 toothed lock screw
(M 1.7 u 2.5)
2 toothed lock screw
(M 1.7 u 2.5)
1 Remove the eleven solders.
6 optical pick-up (16 core)
(CN101)
4 claw
5 claw
gray
yellow
blue
orange
red
black
red
white
black
red
white
