Sony CDX-MP40 - Front Panel Section Exploded View

39
CDX-MP40

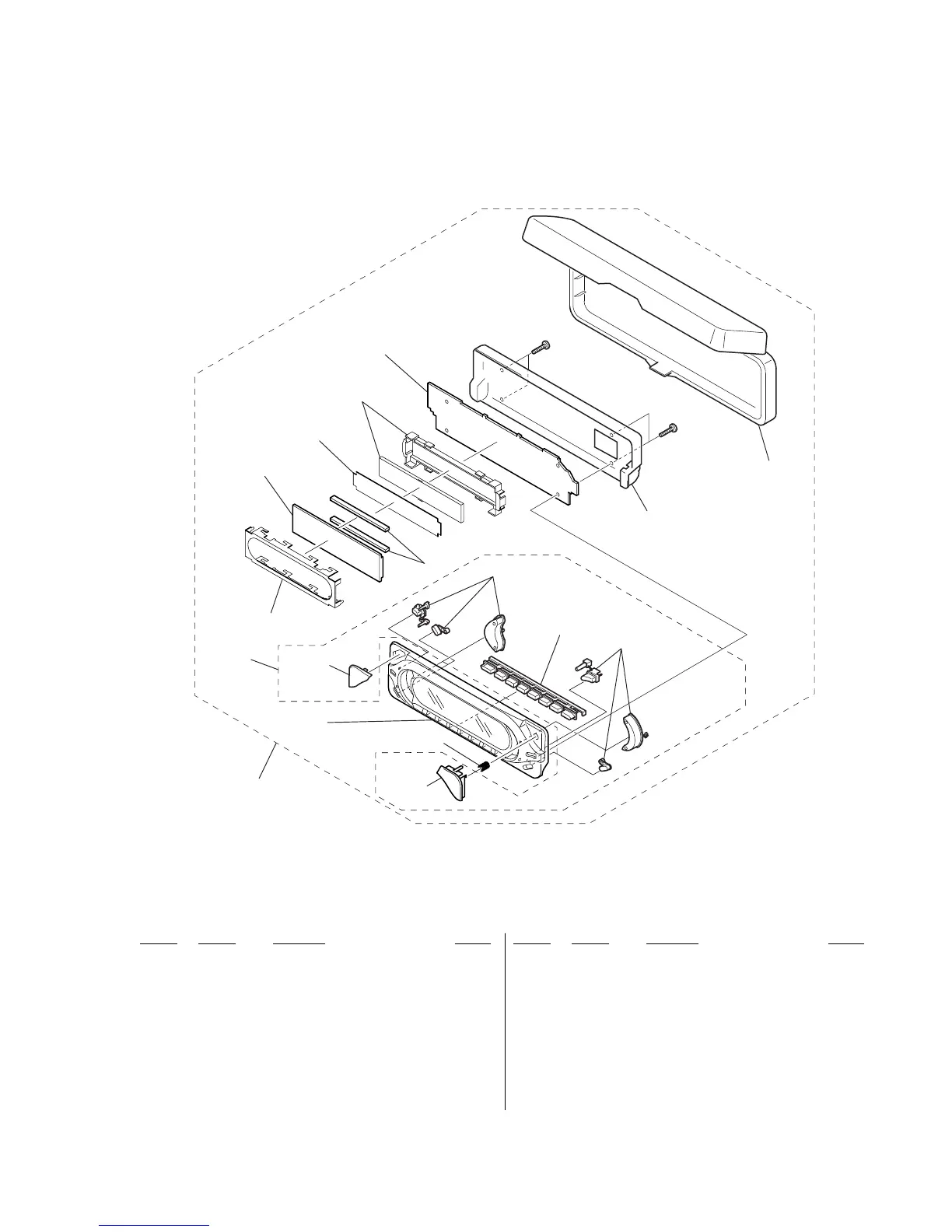

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 A-3337-163-A OVERALL ASSY, FRONT PANEL (AEP,UK)
51 A-3337-442-A PANEL COMPLETE ASSY, FRONT (US,CND)
52 X-3382-827-1 PANEL (S) ASSY, FRONT (AEP,UK)
52 X-3383-151-1 PANEL (S) ASSY, FRONT (US,CND)
53 3-246-534-01 SPRING (RELEASE) (US,CND)
53 3-246-778-01 SPRING (OPEN) (AEP,UK)
54 X-3383-105-1 BUTTON ASSY (S) (AEP,UK)
54 X-3383-169-1 BUTTON ASSY (S) (US,CND)
55 1-694-976-11 CONDUCTIVE BOARD, CONNECTION (AEP,UK)
55 1-694-989-11 CONDUCTIVE BOARD, CONNECTION (US,CND)
56 X-3382-625-1 PANEL ASSY, FRONT BACK (US,CND)
56 X-3382-702-1 PANEL ASSY, FRONT BACK (AEP,UK)
57 X-3378-390-3 CASE ASSY (for FRONT PANEL) (US,CND)
57 X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
(AEP,UK)
LCD901 1-805-084-11 DISPLAY PANEL, LIQUID CRYSTAL
#6 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#6
#6
not supplied
(DISPLAY board (US, CND))
(KEY board (AEP, UK))
LCD901
not supplied
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
51
52
53
54
55
56
57
