– 9 –

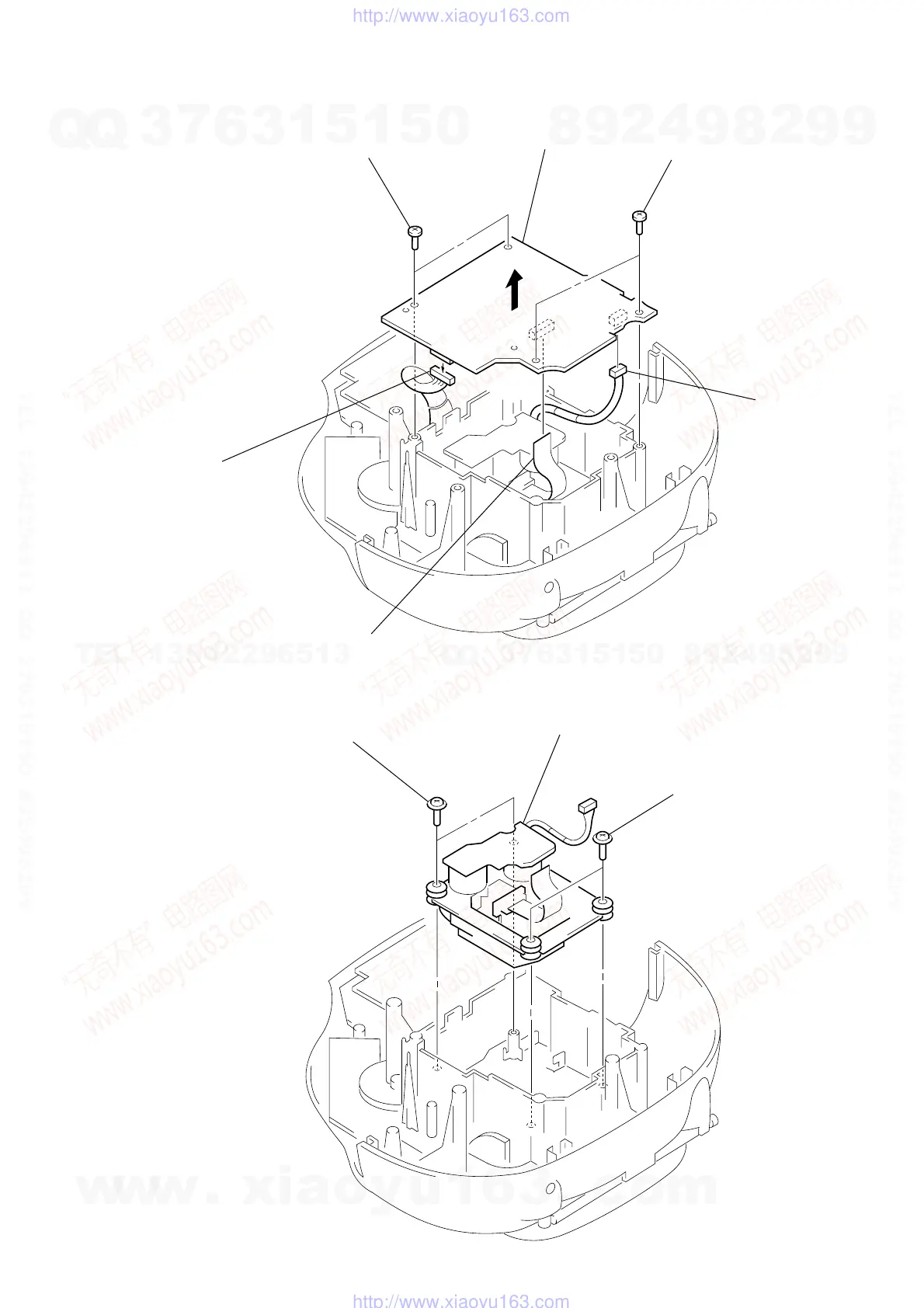

CD BOARD
OPTICAL PICK-UP SECTION
1 two screws
(BVTP3
× 10)
2 CD board
1 two screws
(BVTP3
× 10)
3 connector
(CNP702)
4 flat wire (16 core)
(CNP701)
3 connector
(CNP703)
1 two screws
(PWH2.6
× 10)
2 optical pick-up
section
1 two screws
(PWH2.6
× 10)
