Sony CFD-S01 - Tape and Control Sections Disassembly

11
CFD-S01

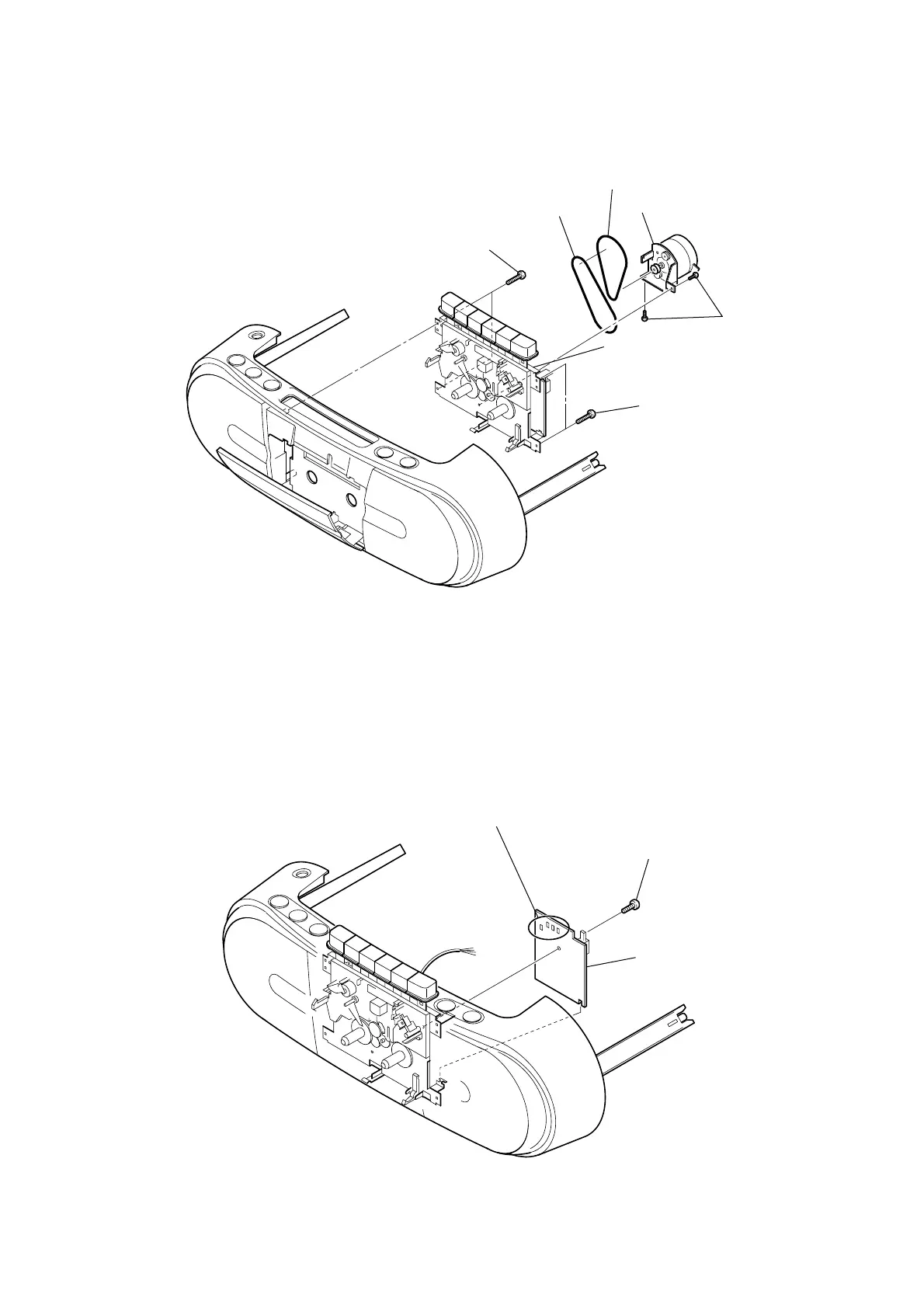

3-10. TC BOARD
3-9. TAPE MECHANISM BLOCK, BELT (1), BELT (2)
1 two screws
(+BV tapping (B2.6))
2 two screws
(+BV tapping (B2.6))
3 tape mechanism block
4 two screws
5 motor bracket
6 belt (1)
7 belt (2)
1 screw
(+P tapping (B2.6))
2 Remove the four solders.
3 TC board
