Sony CFD-S01 - Upper Cabinet Section (2)

42
CFD-S01
201 3-923-736-01 COVER, CD
202 3-931-379-21 RUBBER, VIBRATION PROOF (RED)
203 3-931-379-31 RUBBER, VIBRATION PROOF (GREEN)
204 1-831-623-11 CABLE, FLEXIBLE FLAT (16 CORE)
205 A-1147-593-A CD MOTOR BOARD, COMPLETE
206 1-831-614-11 CABLE, FLEXIBLE FLAT (6 CORE)
207 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
208 2-654-055-01 CHASSIS, CD
209 3-254-151-01 SCREW (B2.6), (+) P TAPPING
210 A-1147-586-A CONTROL BOARD, COMPLETE
211 1-831-615-11 CABLE, FLEXIBLE FLAT (12 CORE)
212 1-831-617-11 CABLE, FLEXIBLE FLAT (14 CORE)
213 3-831-441-99 SHEET (1)
214 2-654-057-02 WINDOW, LCD (for GRAY)
214 2-654-057-13 WINDOW, LCD (for SILVER)
215 A-1147-585-A HEADPHONE BOARD, COMPLETE
216 X-2102-582-1 CABINET (UPPER) SUB ASSY
(DARK BLUE)...(GRAY)
216 X-2103-201-1 CABINET (UPPER) SUB ASSY
(GRAY)...(SILVER)
0217 8-820-126-01 OPTICAL PICK-UP (KSM-213CDP/C2NP)
218 3-831-441-11 CUSHION (D)
LCD401 1-802-024-11 DISPLAY PANEL, LIQUID CRYSTAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

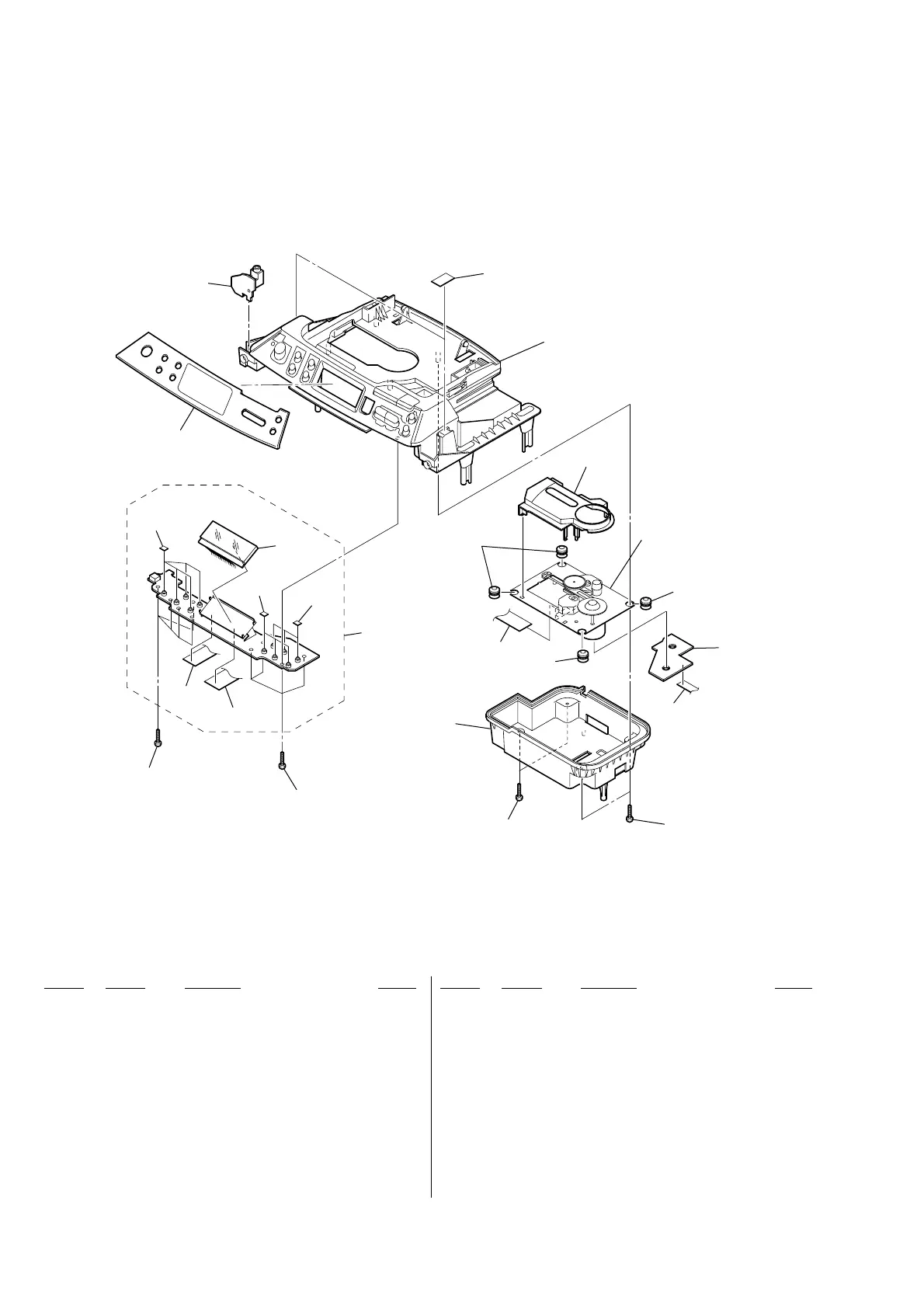

7-5. UPPER CABINET SECTION (2)
207
207
201
202
203
203
205
206
208
204
210
209
209
212
211
213
213
214
LCD401
213
215
216
218
217
