Sony CFD-S100 - Tape Mechanism Section

42
CFD-S100/S200

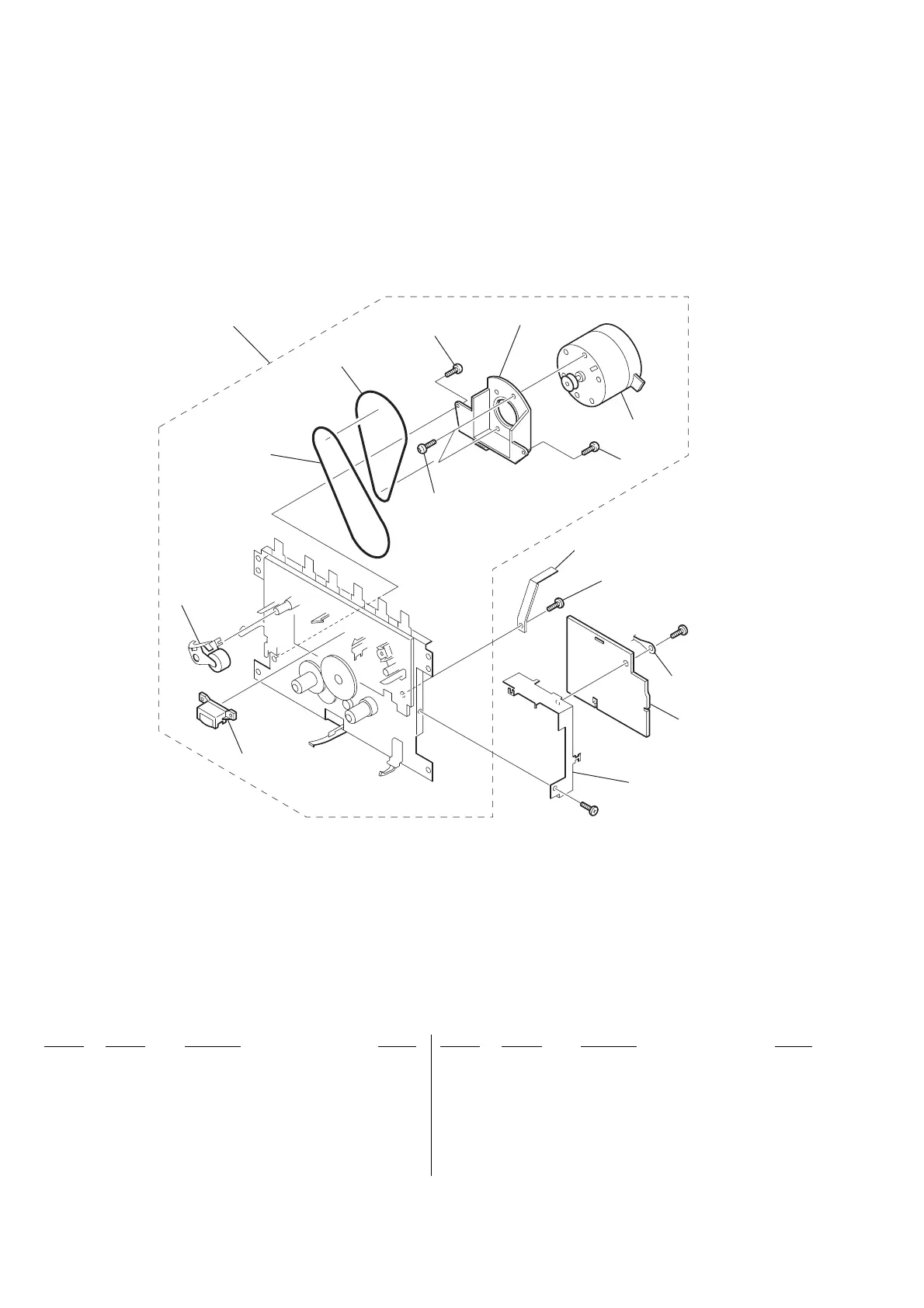

7-5. TAPE MECHANISM SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-244-086-01 ARM ASSY, PINCH ROLLER
202 3-244-079-01 BELT (B), SUB
203 3-244-080-01 BELT (B), MAIN
204 3-244-083-01 SCREW BIND DT M2X6
205 3-244-084-01 SCREW PAN M2.6X4.5
206 3-237-718-01 LEVER, REC
* 207 A-3323-806-A TC BOARD, COMPLETE
208 3-237-719-01 CHASSIS, TC
209 3-030-741-01 SCREW (M2X2)
210 A-3013-956-A MF-S200
HRP301 3-244-085-01 HEAD, R/P (REC/PB)
M801 3-244-082-01 MOTOR ASSY (CAPSTAN/REEL)
#7 7-685-851-04 SCREW +BVTT 2X4 (S)
201
202
203
204
204
206
209
207
208
210
205
not supplied
M801
#7
#7
HRP301
not supplied
