Sony CFD-S38 - Exploded Views; Front Cabinet Section

– 40 –
SECTION 7

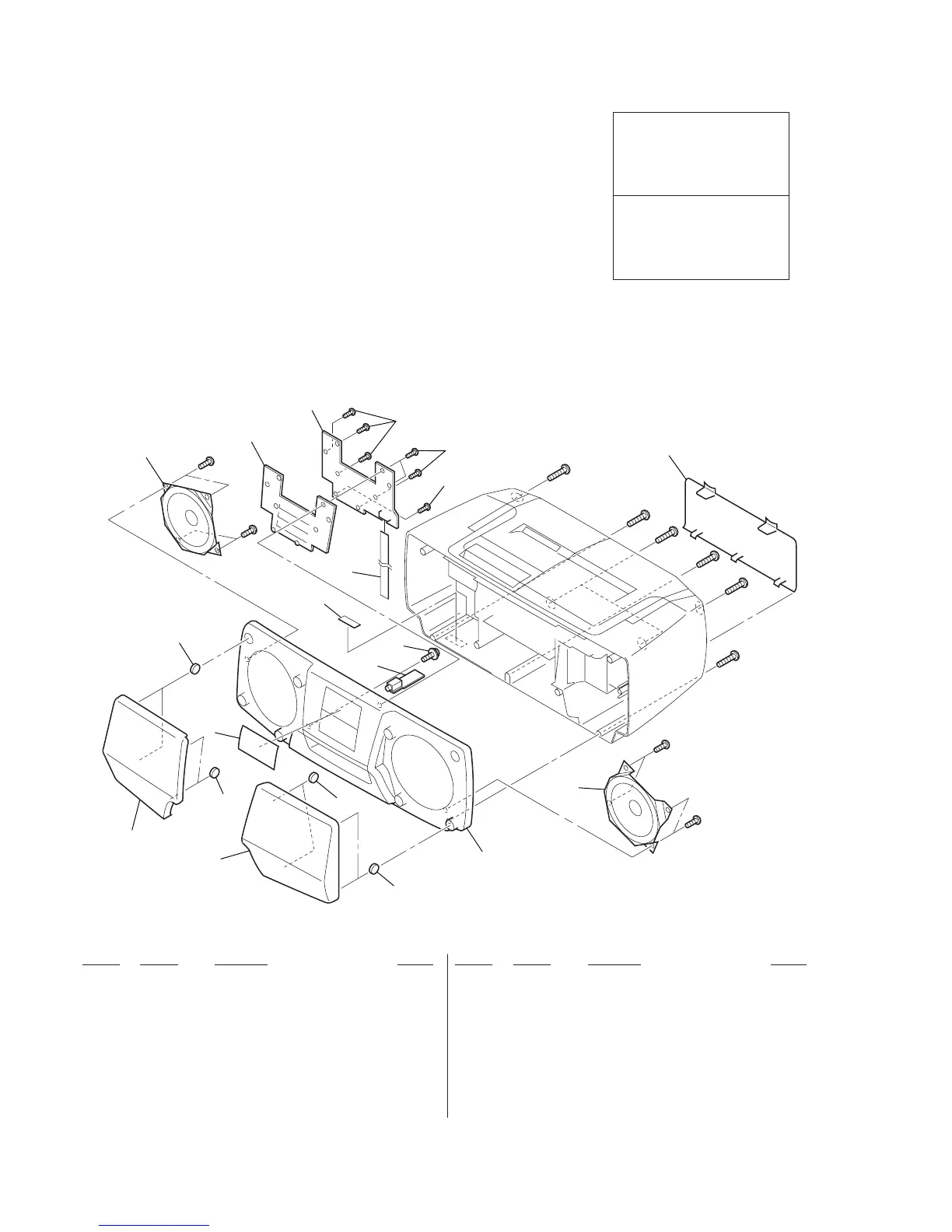

EXPLODED VIEWS
Ref. No. Part No. Description Remark
7-1. FRONT CABINET SECTION
Ref. No. Part No. Description Remark
1 3-032-033-01 WINDOW (LCD)
2 X-3376-915-1 GRILLE (L) ASSY, SPEAKER (BLACK)
2 X-3376-916-1 GRILLE (L) ASSY, SPEAKER (DARK BLUE)
3 X-3376-918-1 GRILLE (R) ASSY, SPEAKER (BLACK)
3 X-3376-919-1 GRILLE (R) ASSY, SPEAKER (DARK BLUE)
4 4-212-330-01 BUSHING
5 X-3376-921-1 CABINET (FRONT) SUB ASSY (US)
5 X-3376-923-1 CABINET (FRONT) SUB ASSY (CND,E,AR,SP)
6 3-032-032-01 BUTTON (MAIN)
* 7 A-3323-105-A CONTROL BOARD, COMPLETE
8 1-790-378-11 WIRE (FLAT TYPE) (8 CORE)
9 4-951-620-11 SCREW (2.6X10), +BVTP
10 3-926-244-91 LID, BATTERY CASE
* 11 1-672-388-11 HEADPHONE BOARD
12 3-921-725-01 SCREW (2.6X10), +PWH
* 13 3-703-044-26 LABEL, CAUTION (US,CND)
SP301 1-529-185-11 SPEAKER (10cm) (L-CH)
SP302 1-529-185-11 SPEAKER (10cm) (R-CH)
