Sony CFD-S38 - Exploded Views; Rear Cabinet Section

– 41 –

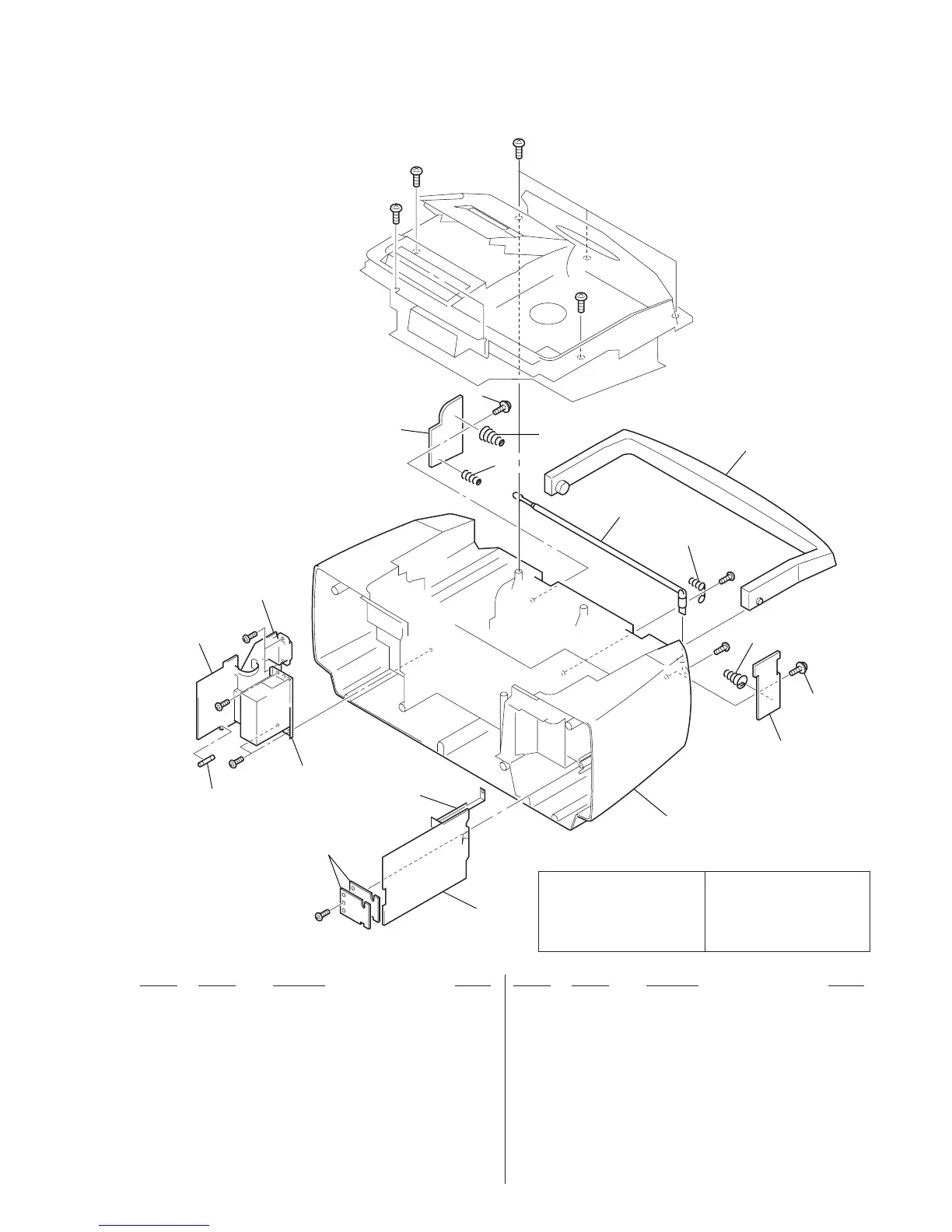

7-2. CABINET (REAR) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 A-3321-755-A SECONDARY BOARD, COMPLETE
* 52 1-672-384-11 PRIMARY BOARD
* 53 A-3321-748-A TUNER BOARD, COMPLETE (US,CND,E)
* 53 A-3321-940-A TUNER BOARD, COMPLETE (AR,SP)
54 3-032-038-01 TERMINAL, ANTENNA
55 3-032-025-01 CABINET (REAR) (US)
55 3-032-025-11 CABINET (REAR) (CND)
55 3-032-025-81 CABINET (REAR) (AR,SP)
55 3-032-025-91 CABINET (REAR) (E)
* 56 1-627-386-11 BATTERY BOARD
57 3-028-154-01 TERMINAL (-), BATTERY
58 3-028-156-01 TERMINAL (S) (-), BATTERY
* 59 1-672-387-11 BATTERY COMMON BOARD
60 3-032-029-01 HANDLE
61 3-028-157-01 TERMINAL (S) (+.-), BATTERY
62 4-960-167-01 SCREW (3X8) (DIA. 10), +WH
ANT1 1-501-891-11 ANTENNA, TELESCOPIC
! F902 1-532-465-51 FUSE, TIME LAG (T3.15AL/250V) (AR,SP)
! F902 1-576-109-11 FUSE (5A/125V) (US,CND,E)
! T901 1-433-638-11 TRANSFORMER, POWER (US,CND,E)
! T901 1-433-639-11 TRANSFORMER, POWER (AR,SP)
#1
#1
#1
#1
#1
#1
#1
#1
T901
ANT1
#1
#5
F902
not supplied
51
52
53
54
55
56
57
58
59
57
61
60
62
62
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
