Sony CFD-S38 - Disassembly; Wire Disconnection; Power Transformer Removal

– 8 –

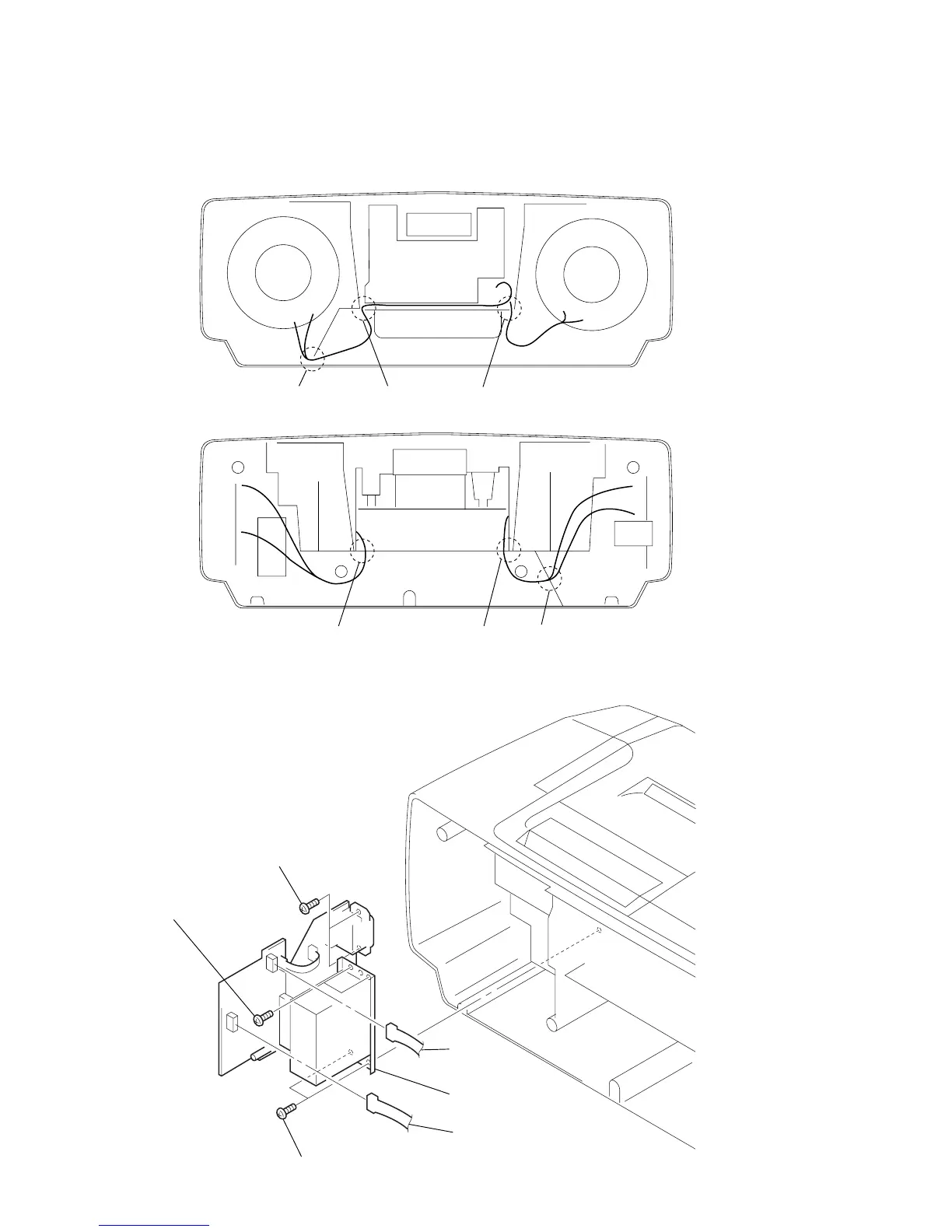

3-3. WIRES
3-4. TRANSFORMER, POWER
CABINET (REAR
)
FRONT CABINE
T
A
B
C
D
E
F
1 screws +BVTP 3x10
2 screws +BVTP 3x10
3 screws +BVTP 3x10
4 transformer, power
6 CNP901
5 CNP902
Put flat cable and wires between the cabinets and push them in the
grooves located at A to F in the figure to prevent disconnection
before assembling the set.
