3. Tuner board modification

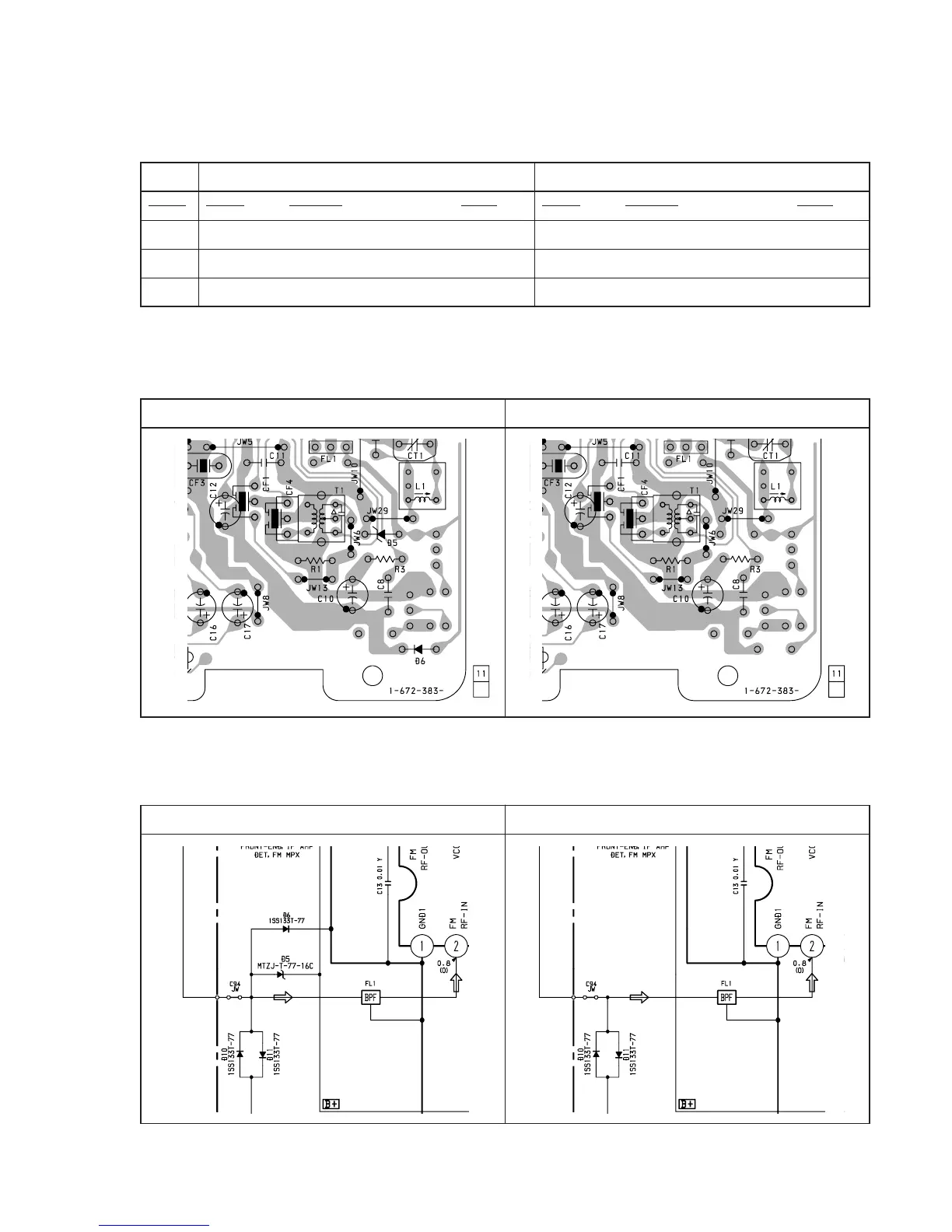

3-1. Electrical Parts List — Tuner board —
(Page 52-53)
Note : Part change should be made at the same time.
3-2. Printed Wiring Board — Tuner board —
(Page 23/Location G-H, 5)
! : Changed portion
3-3. Schematic Diagram — Tuner section —
(Page 21-22/Location F, 2-3)
! : Changed portion
Former New
Part No. Description Remark
8-719-923-93 DIODE MTZJ-T-77-16C
8-719-991-33 DIODE 1SS133T-77
8-759-549-84 IC TA2104AN
Ref. No.
D5
D6
IC1
Part No. Description Remark
No mount
No mount
8-759-644-86 IC TA2104BN
Former New
Former New
