Sony CFD-S39 - Tape Mechanism Deck Section-4

– 50 –

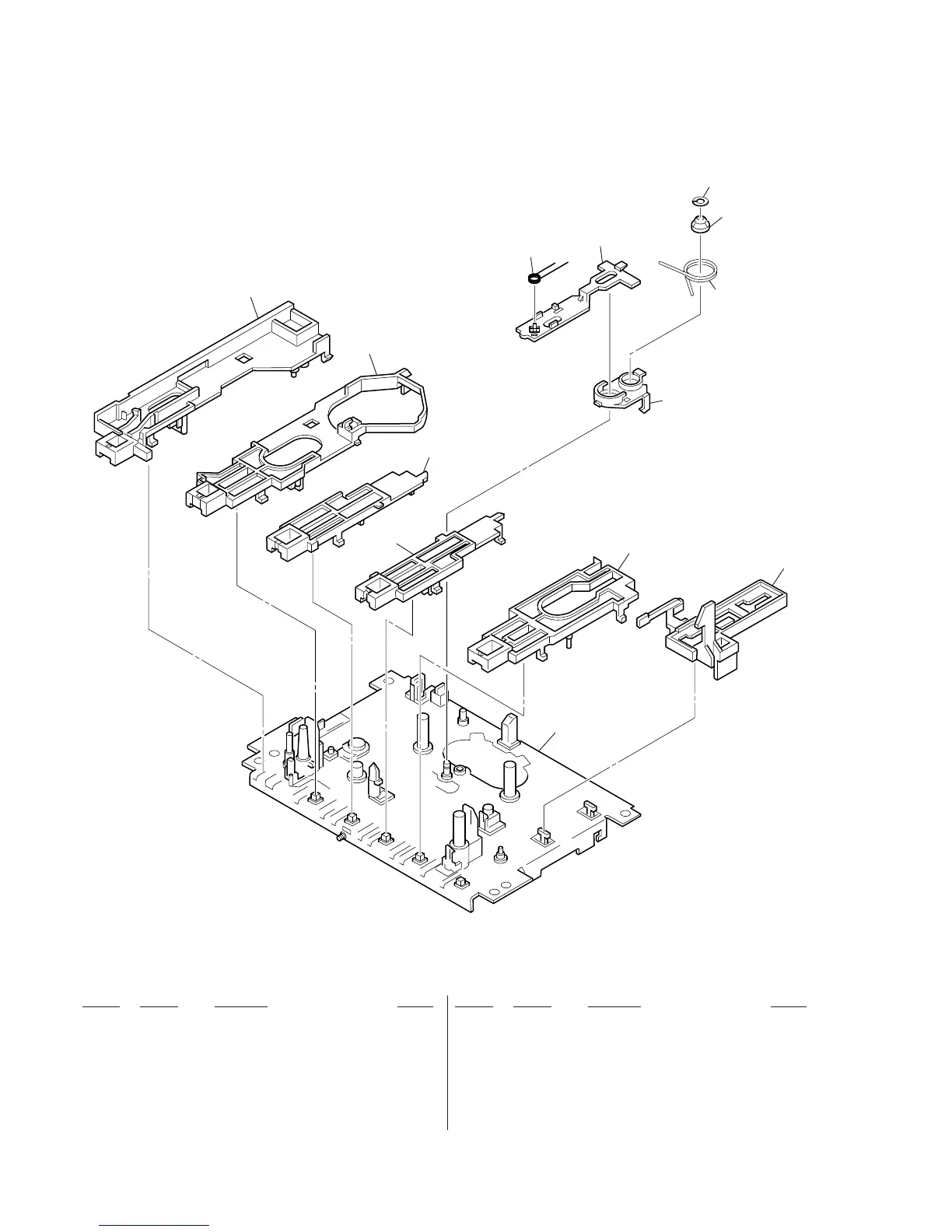

7-7. TAPE MECHANISM DECK SECTION-4
(MF-B7S-148)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
307
306
305
303
308
311
312
313
309
310
302
301
304
301 X-3375-503-1 CHASSIS ASSY, MECHANICAL
* 302 3-024-558-01 SLIDER (EJECT)
* 303 3-024-557-01 SLIDER (STOP)
* 304 3-024-572-01 SLIDER (FF)
* 305 3-024-559-01 SLIDER (REW)
* 306 3-024-560-01 SLIDER (FWD)
* 307 3-024-573-01 SLIDER (REC)
308 3-024-588-01 LEVER (FW), ID
309 3-027-181-01 SLIDER (FR)
310 3-027-069-01 SPRING (FRW), TORSION
311 3-024-975-01 SPRING (IDLER LEVER), TORSION
312 3-024-984-01 SPRING (K), COMPRESSION
313 3-321-483-11 RING, RETAINING
