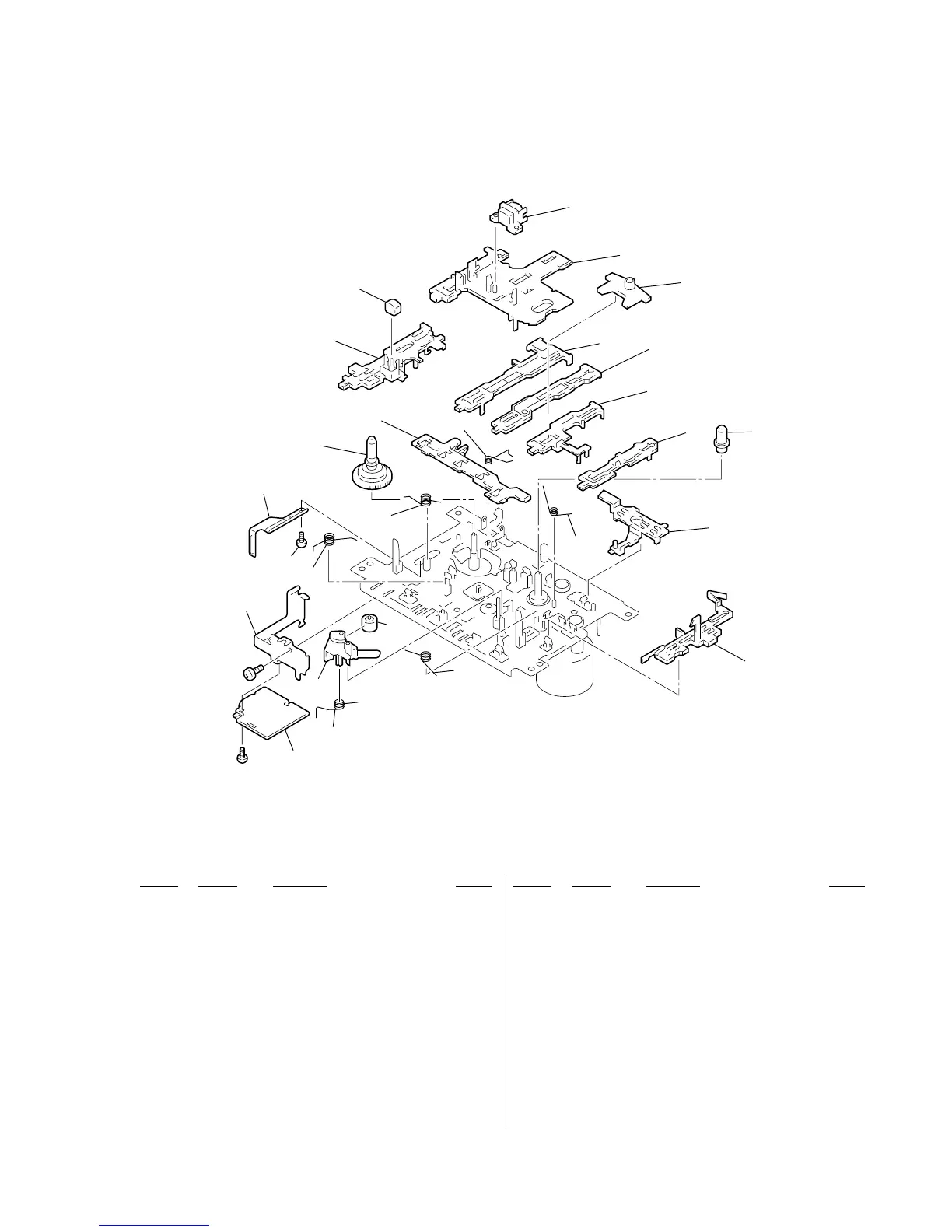

Sony CFD-V7 - 7-4. MECHANISM DECK SECTION (1)

37
CFD-V3/V7/V7L
HE901
#3
#3
HRP901
151
152
173
174
172
171
153
154
155
156
157
158
159
160
170
161
162
163
164
165
166
167
168
169
151 3-933-010-01 SPRING (S/P), TORSION
152 3-933-025-01 SPRING (P), TORSION
153 3-040-857-01 LEVER (P)
154 3-933-024-01 ROLLER, PINCH
155 3-933-019-01 SPRING (F/R), TORSION
156 3-933-028-01 SPRING (FWD), TORSION
157 3-933-016-01 GEAR (S REEL)
158 3-008-590-01 SLIDER (REC)
159 3-008-592-01 BASE (H), HEAD
* 160 3-008-588-01 SLIDER (REW)
* 161 3-008-589-13 SLIDER (FF)
* 162 3-008-587-01 SLIDER (STOP)
* 163 3-008-591-01 SLIDER (PAUSE)
164 3-933-004-01 CLAW, REEL
* 165 3-933-021-01 SLIDER (FRP)
* 166 3-933-006-01 SLIDER (EJECT)
167 3-934-833-01 SPRING (FRP)
168 3-022-794-02 SPRING (BT)
169 3-933-007-01 PLATE, LOCK
* 170 3-012-114-01 LEVER (FR)
171 3-222-727-01 LEVER (REC)
172 4-951-620-01 SCREW (2.6X8), +BVTP
* 173 A-3062-296-A PRE BOARD, COMPLETE (V7L)
* 173 A-3347-104-A PRE BOARD, COMPLETE (EXCEPT V7L)
174 3-222-726-01 CHASSIS (TC)
HE901 1-543-876-11 HEAD (ERASE)
HRP901 1-500-668-11 HEAD,MAGNETIC (RECORD/PLAYBACK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-4. MECHANISM DECK SECTION (1)
(MF-V5-117)
Ver 1.2 2001.08
