Sony CFM-D1 - Mechanism Deck Exploded View (Part 2)

– 18 –

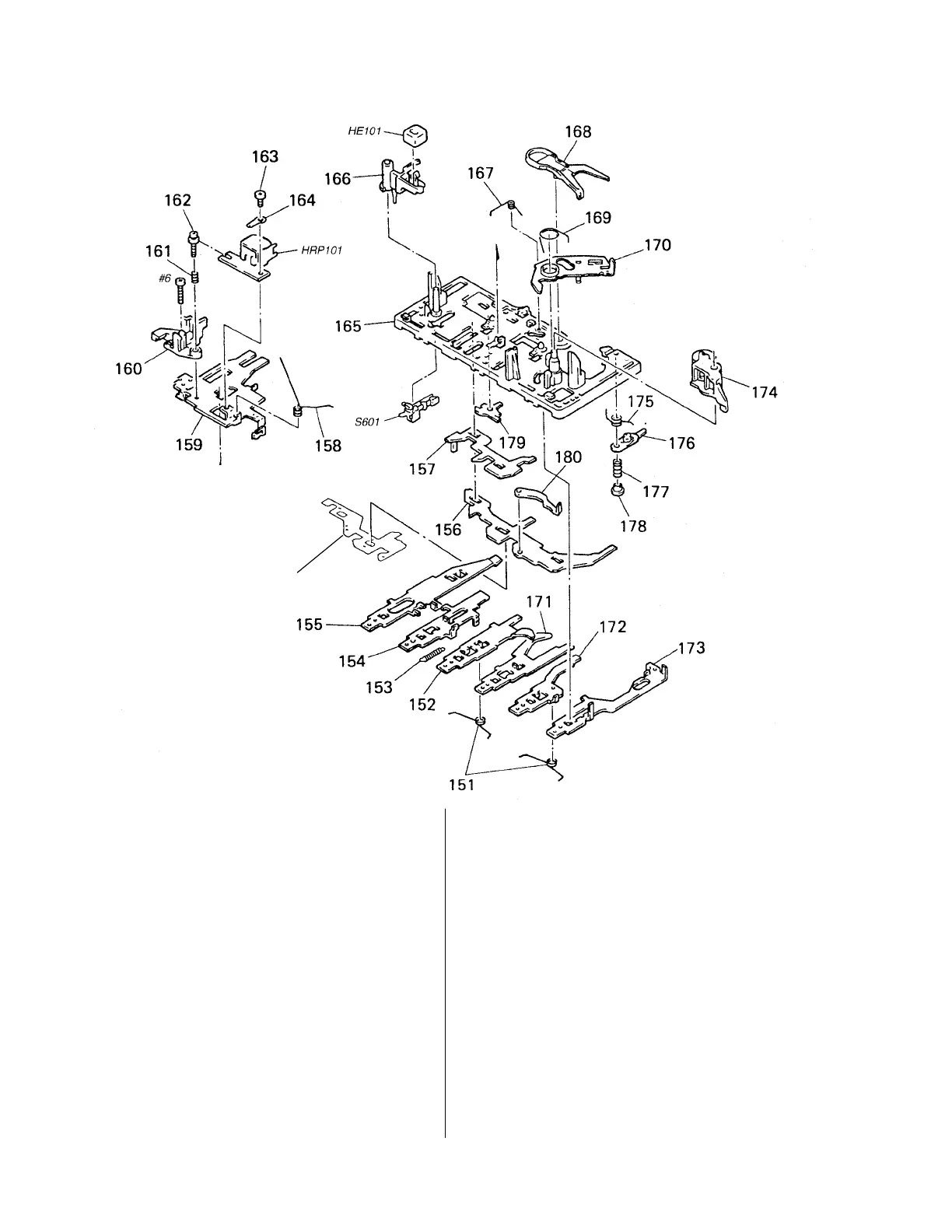

5-4. MECHANISM DECK SECTION (2)
(MF-D1)
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
151 3-915-756-01 SPRING (A)
* 152 3-394-739-01 LEVER, REW BUTTON
153 3-936-901-01 RC SPRING
* 154 3-394-738-01 LEVER, PLAY BUTTON
* 155 3-394-737-01 LEVER, REC BUTTON
* 156 3-936-896-01 PLATE, FUNCTION, PUSH BUTTON
* 157 3-936-895-01 PLATE, FUNCTION, SWITCH
158 3-915-780-01 SPRING
* 159 3-915-776-01 PANEL, HEAD
160 3-348-344-11 BASE, HEAD
161 3-598-845-01 SPRING
162 3-394-749-01 SCREW (M2X7), AZIMUTH
163 3-348-372-01 SCREW (M2X3), + BIND
164 3-394-748-01 LUG (B3)
165 3-348-347-01 CHASSIS (MOLD) ASSY
166 3-348-346-01 ARM, MG
167 3-913-437-01 SPRING, M CONTROLLER
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
168 3-913-439-01 LEVER, SENSING
169 3-348-351-01 SPRING
* 170 3-913-440-01 PLATE ASSY, GEAR
* 171 3-933-802-01 LEVER, FF BUTTON
* 172 3-394-741-01 LEVER, STOP BUTTON
* 173 3-394-742-01 LEVER, PAUSE BUTTON
174 3-913-438-01 ARM ASSY, PINCH ROLLER
175 3-348-330-11 SPRING
176 3-348-331-02 LEVER, PAUSE
177 3-915-754-01 SPRING
178 3-348-333-01 STOPPER, PAUSE
179 3-348-340-01 STOPPER, PR
* 180 3-915-760-01 LEVER, E KICK
181 3-936-899-01 SACTUATOR
HE101 1-500-232-11 HEAD, MAGNETIC (ERASE)
HRP101 1-500-310-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
S601 1-692-978-11 SWITCH, LEAF (TAPE SWITCH)
181
Ver 1.1 2002.02
