Sony CFM-D1 - Mechanism Deck Exploded View (Part 1)

– 17 –

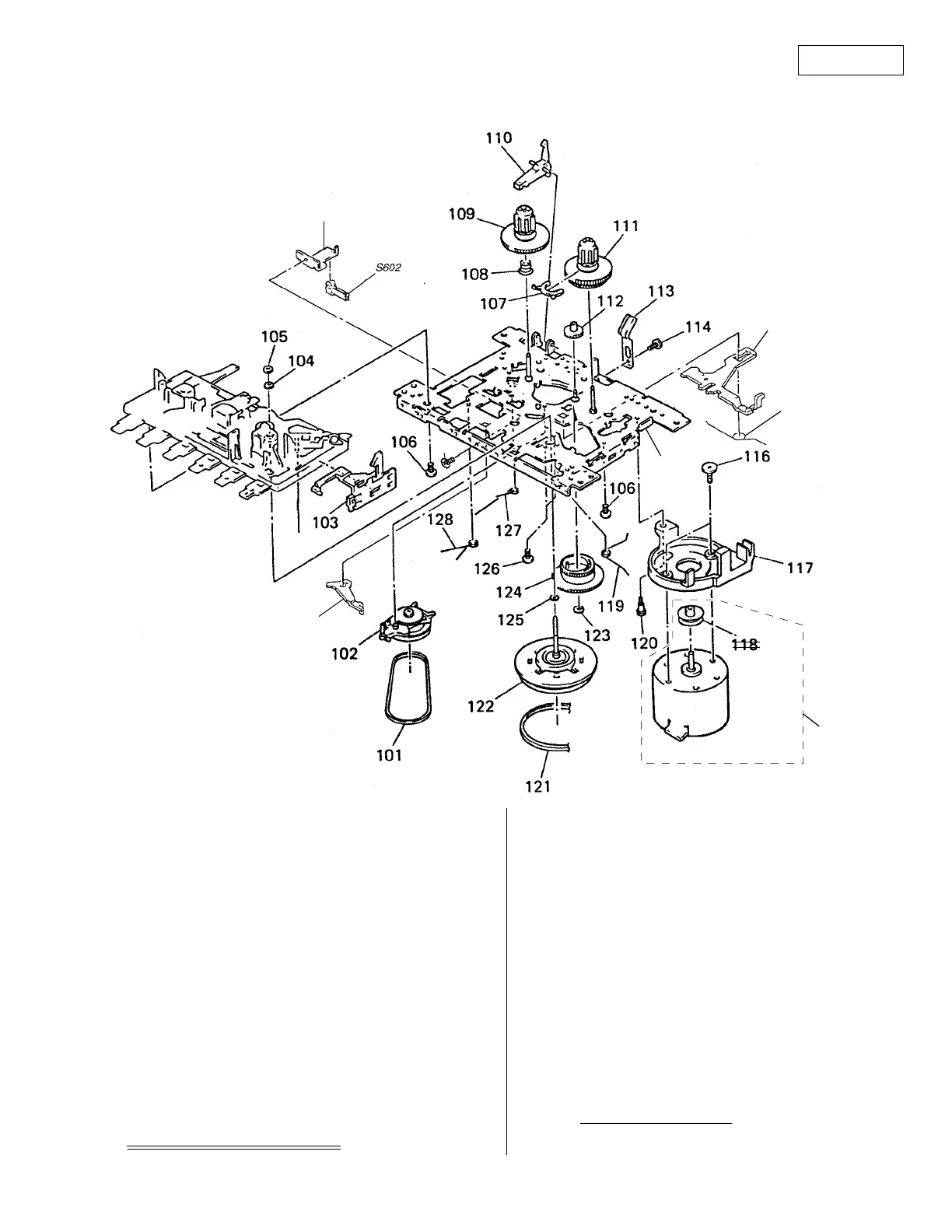

5-3. MECHANISM DECK SECTION (1)
(MF-D1)
101 3-596-931-01 BELT, RF
102 3-913-441-01 CLUTCH ASSY, RF
103 3-933-845-01 LEVER, EJECT SLIDE
104 3-913-442-01 WASHER, POLY-SLIDER
105 3-913-434-01 WASHER, POLY-SLIDER
106 3-348-370-01 SCREW (M2X5), P TIGHT BIND
107 3-915-797-01 SENSOR
108 3-913-429-01 SPRING, BACK TENSION
109 3-913-430-01 REEL ASSY, SUPPLY
110 3-348-368-01 LEVER, REC SAFETY
111 3-913-431-01 REEL ASSY, TAKE-UP
112 3-348-357-01 GEAR, FF
113 3-348-367-01 PLATE, SP, PACK RETAINER
114 3-913-444-01 SCREW (2X3)
115 3-348-335-01 CHASSIS ASSY
116 3-598-855-01 MOTOR COLLER SCREW
117 3-913-435-01 BRACKET, MOTOR
118 3-395-984-01 PULLEY, MOTOR
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
119 3-915-758-01 SPRING
120 3-395-995-01 SCREW, MB
121 3-933-843-01 BELT, MAIN
122 3-348-356-01 FLYWHEEL ASSY
123 3-348-373-01 WASHER, POLYETHYLENE SLIDER
124 3-348-353-01 GEAR, CAM
125 3-913-433-01 WASHER, POLY-SLIDER
126 3-348-371-01 SCREW (M2X4.5), CAMERA TAPPING
127 3-348-341-01 SPRING
128 3-915-759-01 SPRING
129 3-936-902-01 RC SLIDE LEVER
130 3-936-900-01 RC SLIDE LEVER SPRING
131 3-936-903-01 RC LEVER
* 132 3-916-519-01 BRACKET, SW
133 3-936-898-01 CAMERA SCREW M2x2.5
M101 X-3372-889-1 MOTOR ASSY (including PULLEY)
S602 1-692-978-11 SWITCH, LEAF (CUE/REVIEW)
Ver 1.1 2002.02
REVISED
@
!
132
131
133
115
M101
130
129
@
