Sony CMD-J6 - Interface to GSM-Tester ……………………………………&#X85

13
4.2 Interface to GSM-Tester

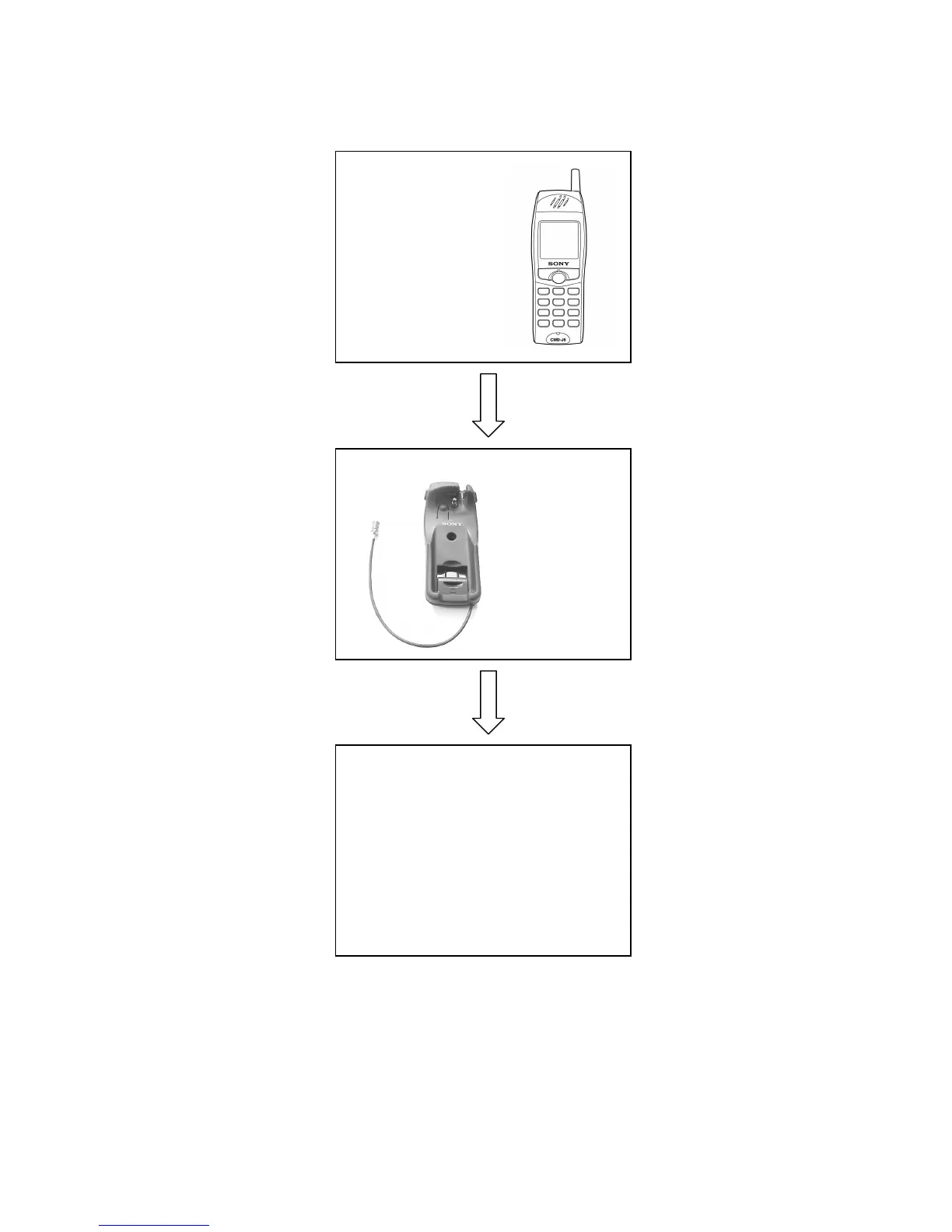

Test Set Up for CMD-J6/J26 Level 1 Testing
Service Test Connector
GSM  TESTER
This unit acts as a base station providing
all the necessary GSM signalling
requirements and provides GSM signal
measuring facilities as well.
CMD- J 6/J 26
+
Battery Pack
+
Test SIM Card
RF input Connector
*
STC-03 Part No.
3-224-391-01
RF output :
SMA jack
*
*
Use special RF-Adapter for connection of STC-03 to your GSM Tester !
