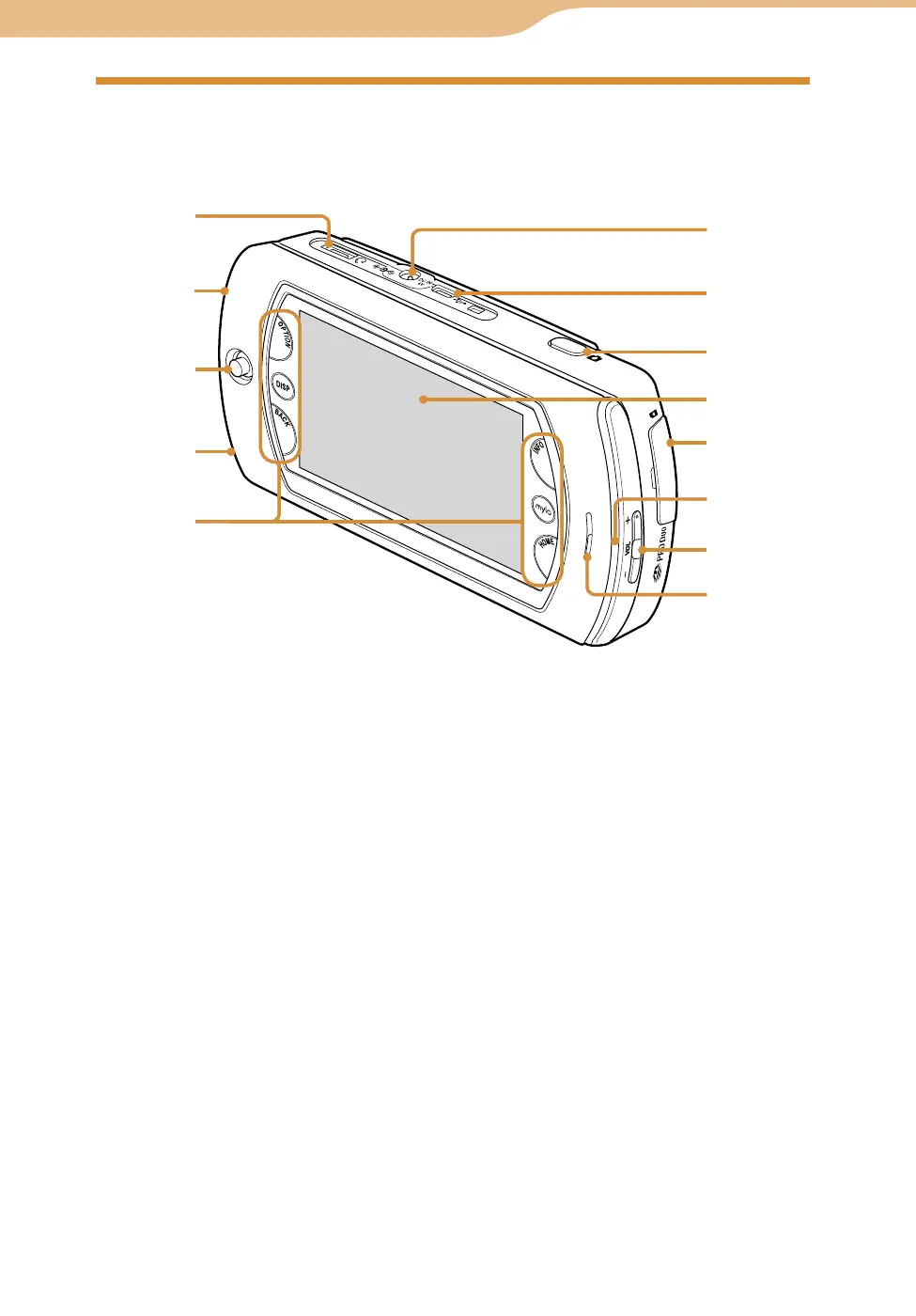

(Headset) jack (
page 24)
Connects to the supplied One Touch Answer
Remote Controller with Microphone.
POWER indicator (
page 11)
Lights up green when the unit is turned on.
CHARGE indicator (
page 9)
Lights up orange while the unit is charging.
Goes out when the battery is completely
charged.
Operation key (
page 16)
Selects an item or a function by being used 4
ways (up/down/left/right). Executes the
selection by being pressed down.
WIRELESS LAN indicator (
page 30)
Lights up green when Wireless LAN feature is
turned on.
Touch button area (
page 17)
Executes the item by tapping.
DC IN 5.2V
jack (
page 9)
Connects to the supplied AC adapter.
(USB) connector
(
page 10, 112, 122, 131, 146)
Connects your unit to a computer.
Shutter button (
page 139)
Clicks the shutter of the camera.
Display (Touch panel) (
page 16)
Operate by touching or tapping with a finger
or the stylus.
“Memory Stick Duo” slot (
page 25)
Open the cover to insert or remove a
“Memory Stick Duo.” The “Memory Stick
Duo” access indicator near the slot blinks
when reading/writing data.
Status indicator
Blinks blue when connected to a wireless
network or when a new instant message is
received; blinks orange for a mylo Widget
notification.
VOL (Volume) +/– buttons
Adjusts the volume.
Speaker (
page 75)
Outputs the other user’s voice during an
Internet call.
