Sony CX-LFA500 - 3 Disassembly; Top Cabinet, Rear Panel

7
CX-LFA500

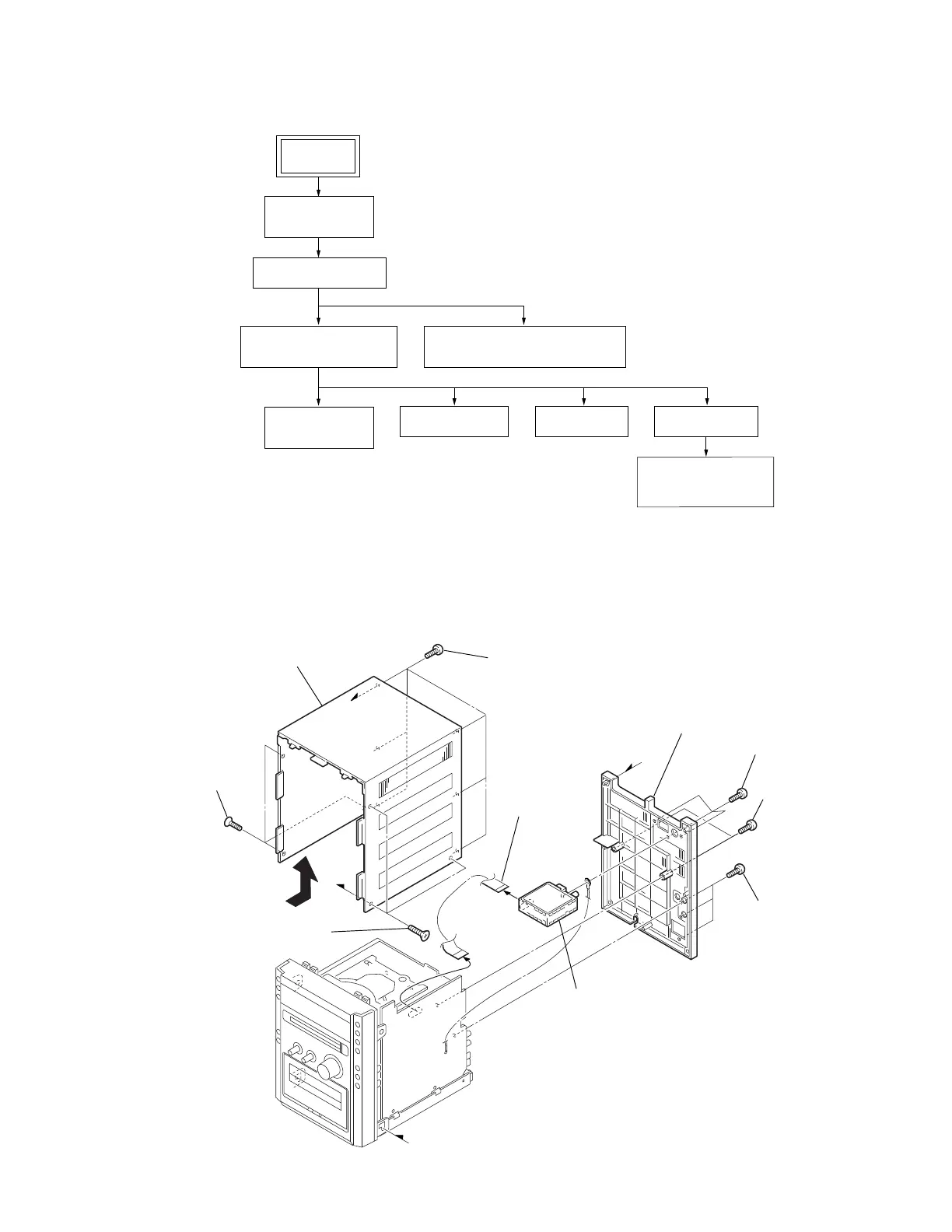

SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
• This set can be disassembled in the order shown below.
SET
MAIN BOARD,
POWER BOARD
LOADING BOARD CD BOARD TRAY (CDM55D)
OPTICAL PICK-UP
(KSM-213D),
HOLDER (C213)
CD MECHANISM DECK
(CDM55A-K6BD44B)
CONTROL BOARD,
SINGLE CASSETTE MECHANISM
FRONT PANEL ASSY
TOP CABINET,
REAR PANEL
3-1. Top Cabinet, Rear Panel
1 three s crews
(+KTP 3
× 12)
2 three s crews
(+KTP 3
× 12)
3 six s crews
(+BVTP 3
× 10)
7 two s crews
(+BVTP 3
× 10
)
8 three s crews
(+BVTP 3
× 10
)
5 top cabinet
4
qa rear panel
q; tuner (FM/AM)
6 w ire (flat type)
15p
a
a
b
b
9 three s crews
(+BVTP 3
× 10)
Ver 1.2 2003.11
