Sony D-NF430 - Exploded Views; Upper LID Section

25
D-NF430/NF431
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
13-252-725-01 SPACER, CDM
23-254-058-11 SCREW
32-657-348-01 SPRING, FULL OPEN (L)
42-657-349-01 SPRING, FULL OPEN (R)
52-659-301-01 LID, BATTERY CASE (for BLACK, BLUE)
52-659-301-11 LID, BATTERY CASE (for SILVER)
63-263-960-02 LEVER (DETECTOR)
73-034-792-11 SCREW, TAPPING (B2.0)
82-187-929-01 LEVER (OPEN)
92-187-930-01 SPRING (OPEN)
10 3-254-082-01 SCREW (for SILVER)
10 3-254-082-11 SCREW (for BLACK, BLUE)
11 1-831-830-11 FLEXIBLE FLAT CABLE (10 CORE )
12 A-1152-105-A SWITCH BOARD, COMPLETE
13 X-2108-067-1 BUTTON ASSY (for BLACK)
13 X-2108-068-1 BUTTON ASSY (for SILVER)
13 X-2108-069-1 BUTTON ASSY (for BLUE)
14 X-2108-060-1 UPPER LID SUB ASSY (for BLACK, BLUE)
(NF430: US)
14 X-2108-061-1 UPPER LID SUB ASSY (for BLACK) (NF430: UK)
14 X-2108-062-1 UPPER LID SUB ASSY (for SILVER)
(NF430: UK)
14 X-2108-063-1 UPPER LID SUB ASSY (for BLUE) (NF430: UK)
14 X-2108-064-1 UPPER LID SUB ASSY (for BLACK) (NF431)
14 X-2108-065-1 UPPER LID SUB ASSY (for SILVER) (NF431)
14 X-2108-066-1 UPPER LID SUB ASSY (for BLUE) (NF431)
15 2-654-537-01 COVER, LID (for BLACK)
15 2-654-537-11 COVER, LID (for SILVER)
15 2-654-537-21 COVER, LID (for BLUE)
16 2-187-928-31 KNOB (OPEN) (for BLACK, BLUE)
16 2-187-928-41 KNOB (OPEN) (for SILVER)
17 2-187-927-31 CABINET (UPPER) (for BLACK, BLUE)
17 2-187-927-41 CABINET (UPPER) (for SILVER)
LCD1001 1-805-689-21 DISPLAY PANEL, LIQUID CRYSTAL

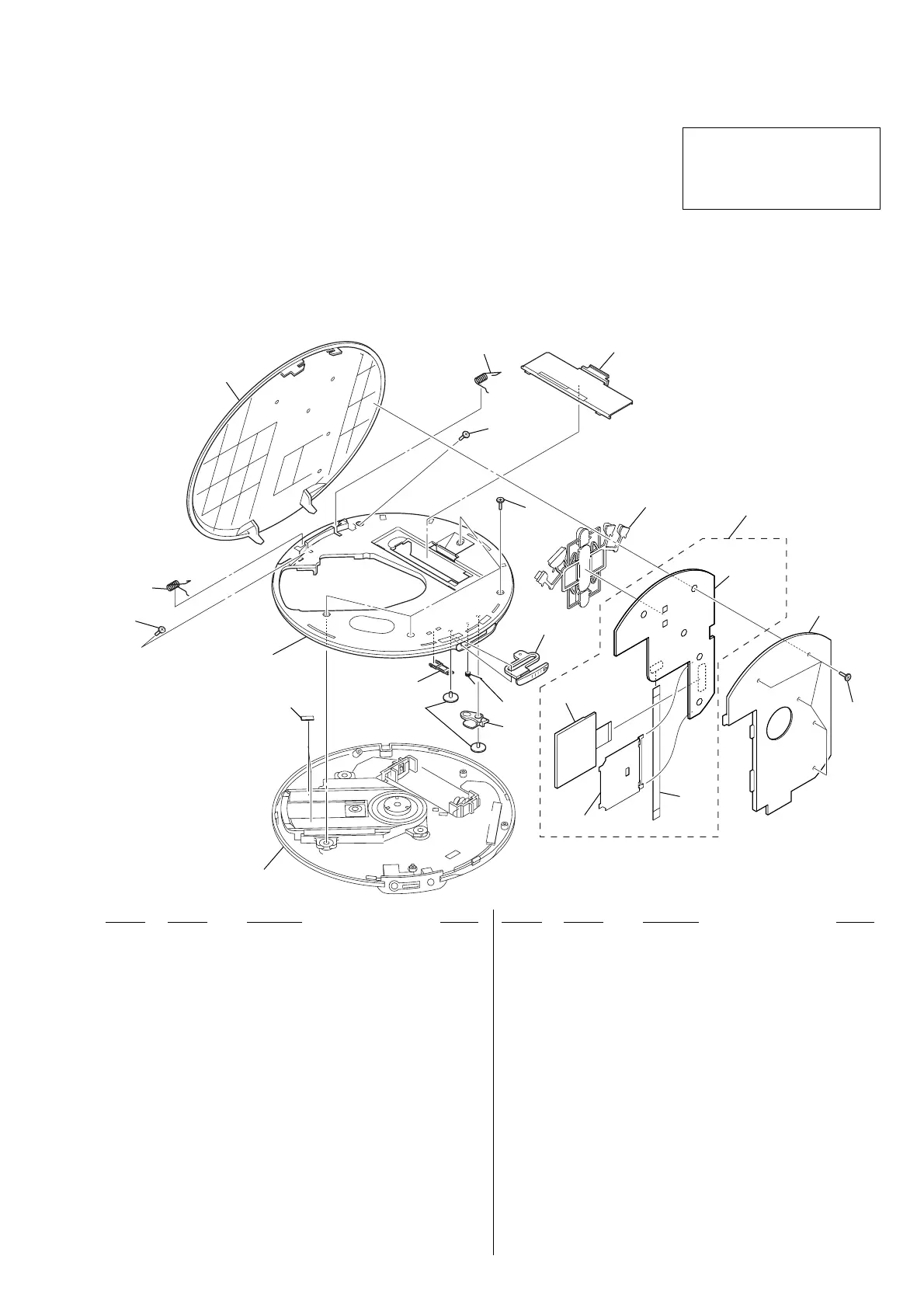

6-1. UPPER LID SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
4
2
2
9
8
11
10
7
6
2
3
5
not supplied
SWITCH
board
LCD1001
cabinet lower section
1
12
15
14
17
16
13
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
