Sony D-NF430 - Disassembly; Disassembly Flow; Cabinet Lower Sub Assy, Upper LID Sub Assy

D-NF430/NF431
6
Note: Follow the disassembly procedure in the numerical order given.

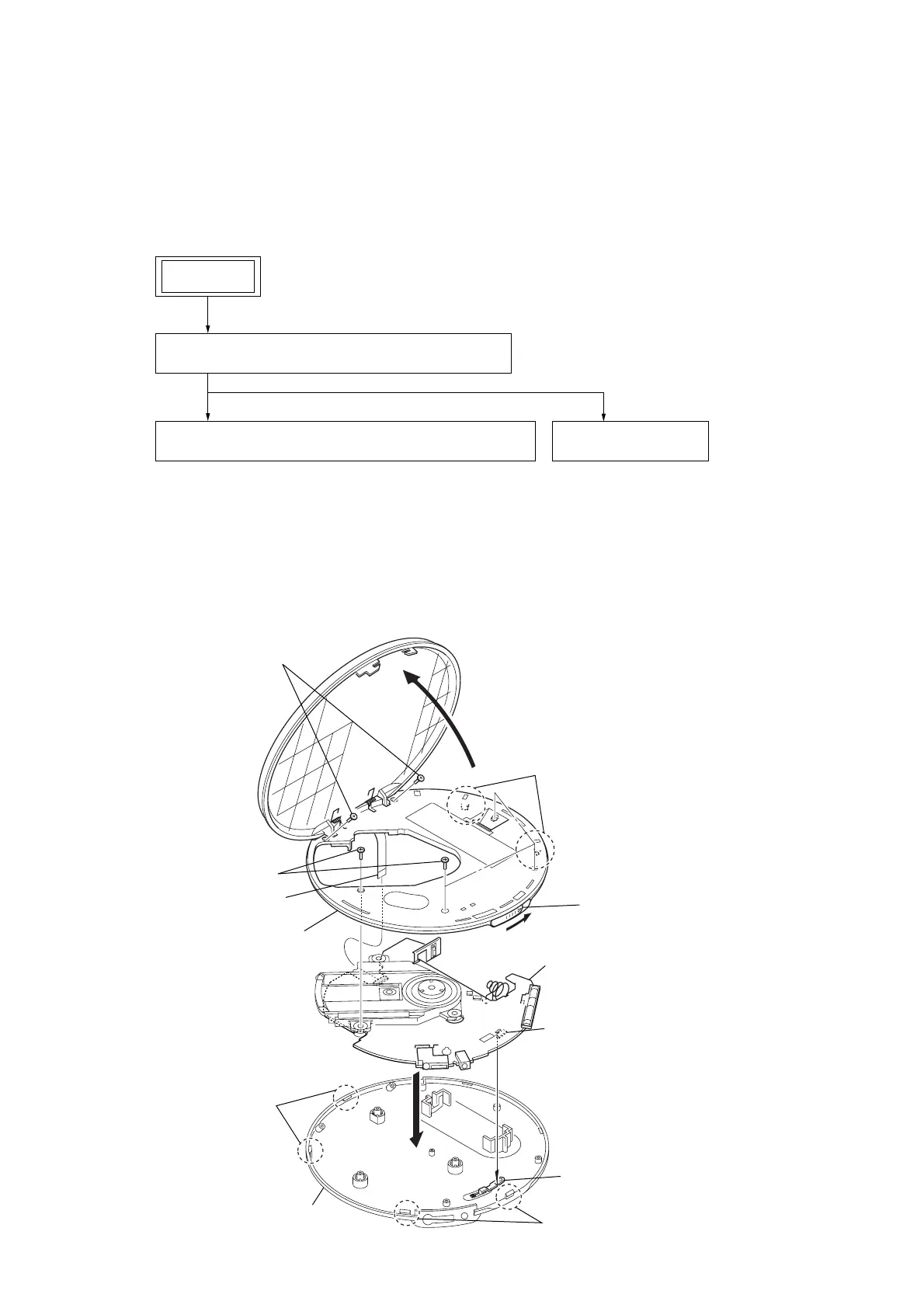

3-2. CABINET LOWER SUB ASSY, UPPER LID SUB ASSY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3-2. CABINET LOWER SUB ASSY, UPPER LID SUB ASSY
(Page 6)
3-4. SWITCH BOARD
(Page 7)
3-3. MAIN BOARD, OPTICAL PICK-UP ASSY (CDM-3325ERV2)
(Page 7)
SET
1 Open the upper lid.
4 cabinet lower sub assy
5 flexible flat cable (10 core)
(CN604)
6 upper lid sub assy
S802
hold knob
Note: On installation of MAIN board,
adjust the position of switch (S802)
and hold knob.
MAIN board
3 two claws
3 two claws
3 two claws
2 two screws
2 four screws
