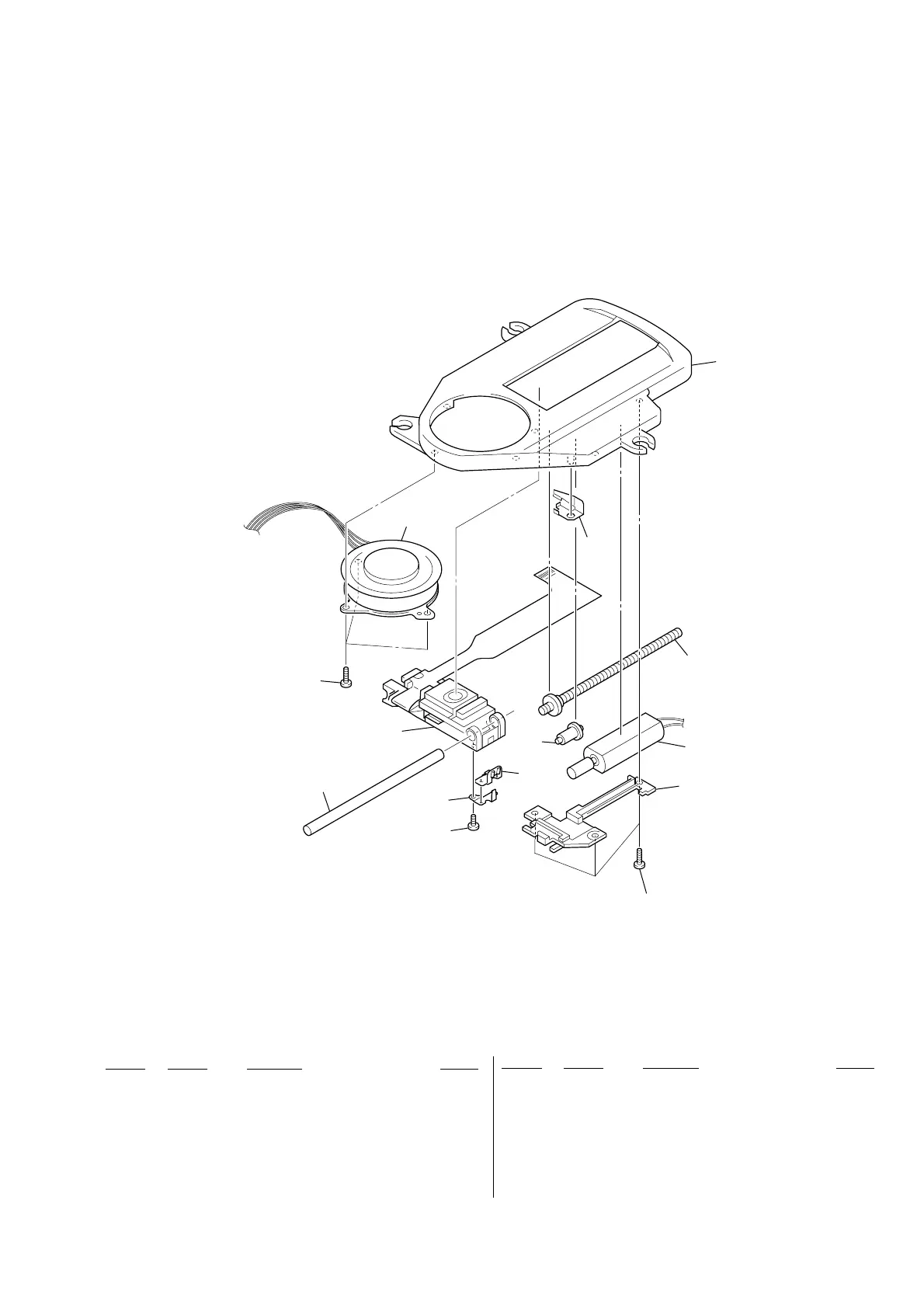

6-3. OPTICAL PICK-UP SECTION (CDM-3325ERV2)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-318-203-61 SCREW (B1.7X4), TAPPING
0102 X-3383-995-1 OPTICAL PICK-UP (DAX-25EV)
103 3-221-473-01 COVER, GEAR
104 3-221-472-02 CHASSIS
105 3-221-474-01 SPRING, SLED
106 A-3331-663-A SCREW (FEED) ASSY
107 3-221-268-01 GEAR (B)
108 3-221-475-01 SHAFT, STANDARD
109 3-222-298-01 RACK
110 3-222-299-01 SPRING, RACK RETAINER
111 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN
M601 A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE)
M602 A-3174-850-A MOTOR ASSY, SLED
101
103
111
110
106
109
108
105
107
101
104
102
M602
M601
