9
D-NF430/NF431

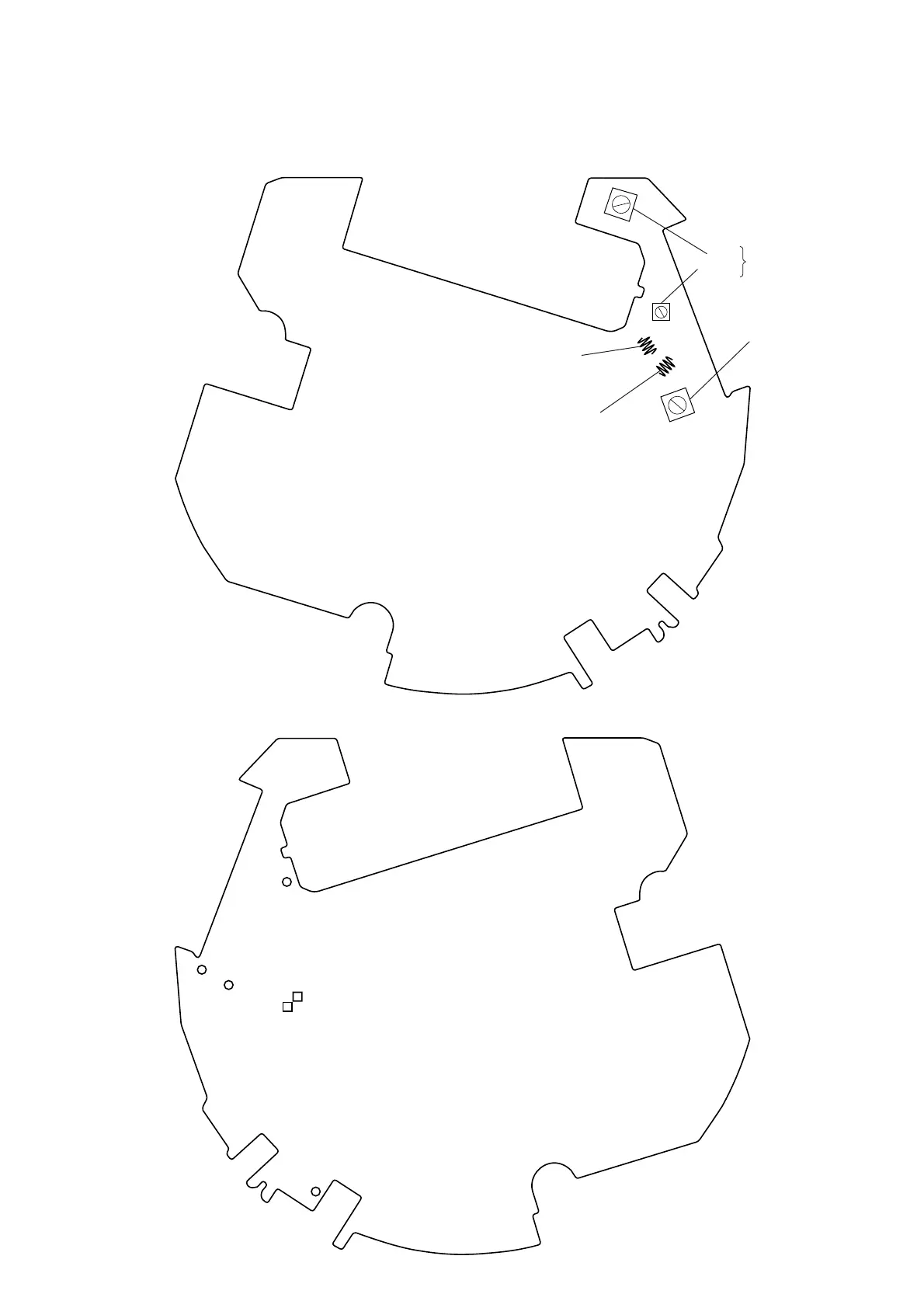

Adjustment and Connecting Location:
L104
FM/TV (2 – 6 ch)
Tracking Adjustment
L103
TV (7 – 13 ch)/WB
Tracking Adjustment
(NF430: US)
AM Tracking
Adjustment
T101
CT101
T102
AM IF Adjustment
– MAIN Board (Component Side) –
TJ808
(GND)
TP104
(FM RF GND)
TP217
(TU-L)
TJ215
(TU-R)
TP102
(FM RF IN)
TP111
(VT)
– MAIN Board (Conductor Side) –
